3.12.11 Limit Order Tab

This topic provides detailed information about limit order tab in FCIS Redemption Transaction Detail screen.

1. Click on Limit Order tab in the FCIS Redemption Transaction Detail screen.
   The Limit Order screen is displayed.

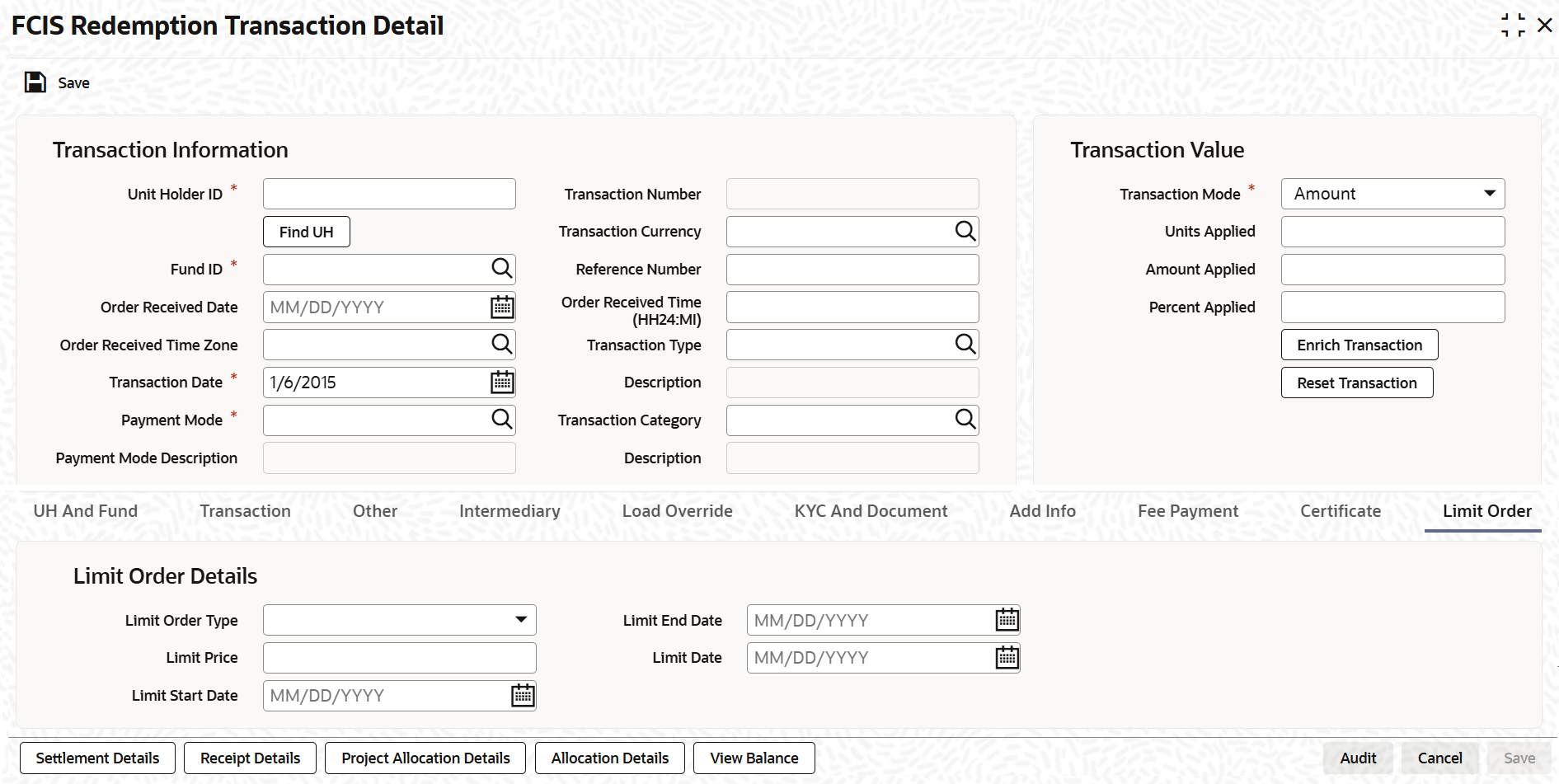

   Figure 3-53 FCIS Redemption Transaction Detail - Limit Order





   Description of "Figure 3-53 FCIS Redemption Transaction Detail - Limit Order"



2. Select the Limit Order for Subscription (buy) option in the Type of Transaction field. The Limit Order section is enabled.

   For more information on fields in the screen, refer the below table.

   Table 3-73 FCIS Redemption Transaction Detail - Limit Order Tab

   Field	Description
   Limit Order Type	Optional Select Price Based in the Limit Order Type field. The options available in the drop-down are as follows: Price-Based Date Based
   Limit Price	Numeric; 9 Characters; Optional Specify the price for the limit order, in the Limit Price field. This represents the price equal to or below which the transaction must be put through (for buy orders).
   Limit Start and End Date	Date Format; Optional Specify the period within which the limit order must be executed, by indicating the boundary dates, in the Limit Start Date and Limit End Date fields.
   Limit Date	Date Format; Optional To set up a date-based limit order, specify the following details in the Limit Order section: Select Date Based in the Limit Order Type field. Specify the future date on which the limit order transaction must be executed, in the Limit Date field.
