2.5.1 Business Schema

This topic gives information on the Business Schema.

1. Select Export LDS Data option from Operation field and click Execute button to generate a dump with table data that needs to be moved to LDS schema in LOB module.
2. Select Export Business Data option from Operation field and click Execute button to generate a dump with table data that needs to be retained in Business schema in LOB module.
3. Select Truncate Business Data option from Operation field and click Execute button to truncate the Business schema data in LOB module.
4. Select Import Business Data option from Operation field and click Execute button to import the generated dump in LOB module.
5. Select Post Process option from Operation field and click the Execute button to initiate post-process execution in LOB module.

   Note:

   The system stores all the export and import dump in DUMPDIR PARAM code. This PARAM code is a logical directory.
   The following confirmation window is displayed.

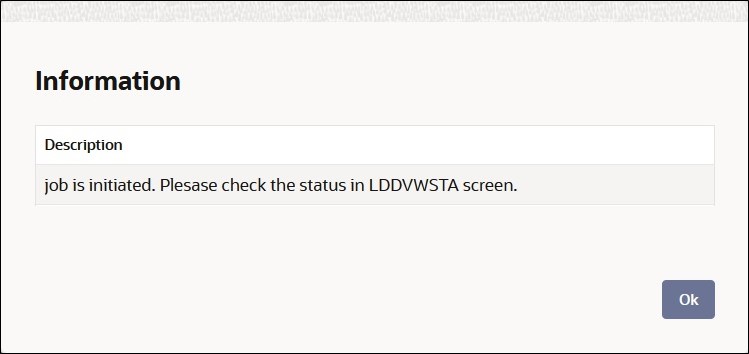

   Figure 2-10 LDS Process_Information Message





   Description of "Figure 2-10 LDS Process_Information Message"
