2.4 Process LDS Status

This topic provides the systematic instructions to view the pre-process execution status.

1. On Home screen, type LDDVWSTA in the text box, and click Next.
   The LDS Status screen is displayed.

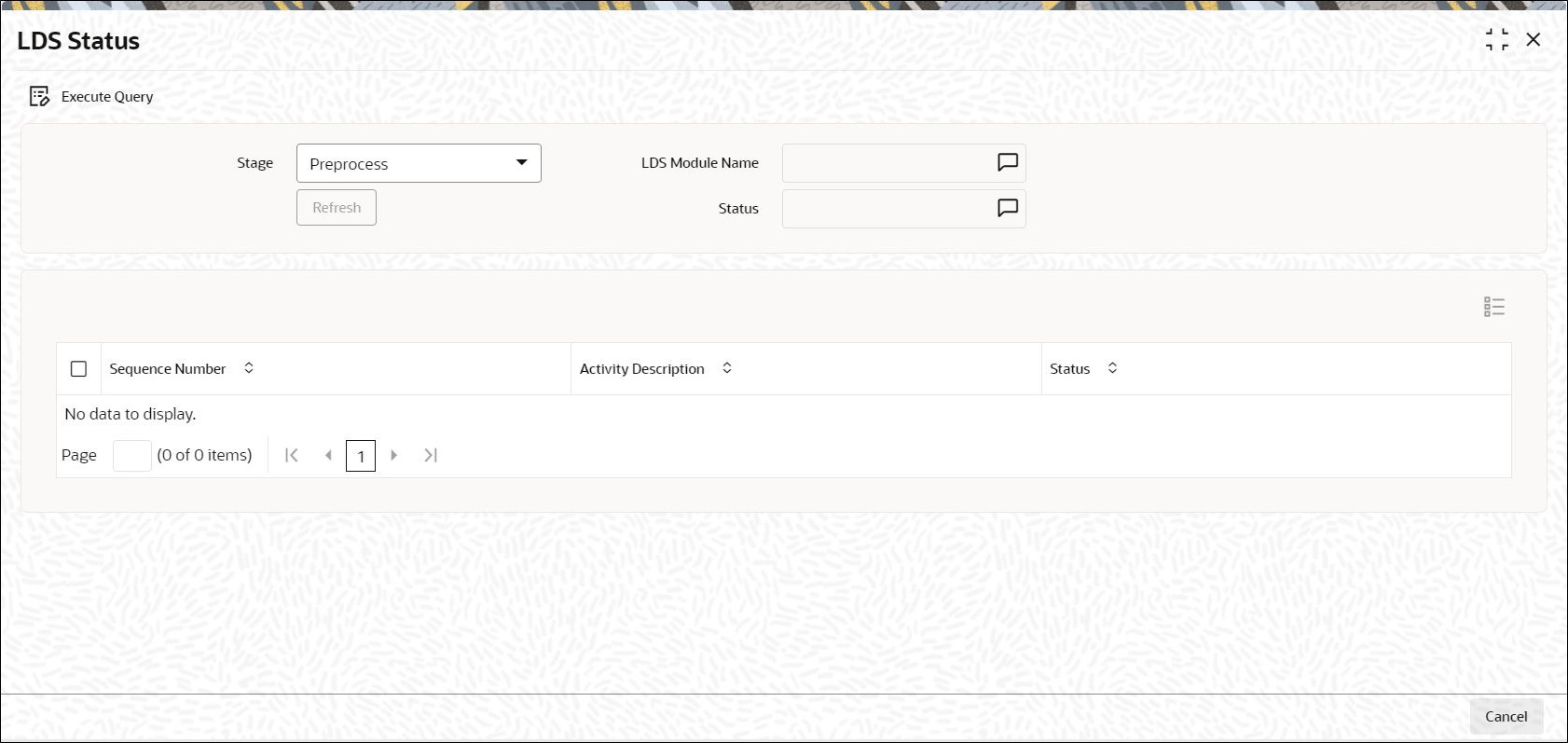

   Figure 2-6 LDS Status





   Description of "Figure 2-6 LDS Status"



2. On LDS Status, click New to enter the details.
   For more information on fields, refer to the field description table.

   Table 2-3 LDS Status - Field Description

   Field	Description
   Stage	Optional Select the stage of execution from the drop-down list. The list displays the following values: Preprocess Postprocess
   Status	Display The system displays the status.
   LDS Module Name	Display Displays the LDS module name.

3. Select the stage as Preprocess and click Execute Query.
   The status of each activity is displayed as follows:

   Figure 2-7 LDS Status_Select Preprocess





   Description of "Figure 2-7 LDS Status_Select Preprocess"



4. View the following details.
   The following details are displayed:

   • LDS Module Name
   • Status
   • Sequence Number
   • Activity Description
   • Status of Individual Activity
5. Click Refresh button to refresh the status.
6. Verify pre-process data before proceeding with post process.
7. Select the stage as Postprocess and click Execute Query to view the post process status.
   The status of each activity is displayed as follows:

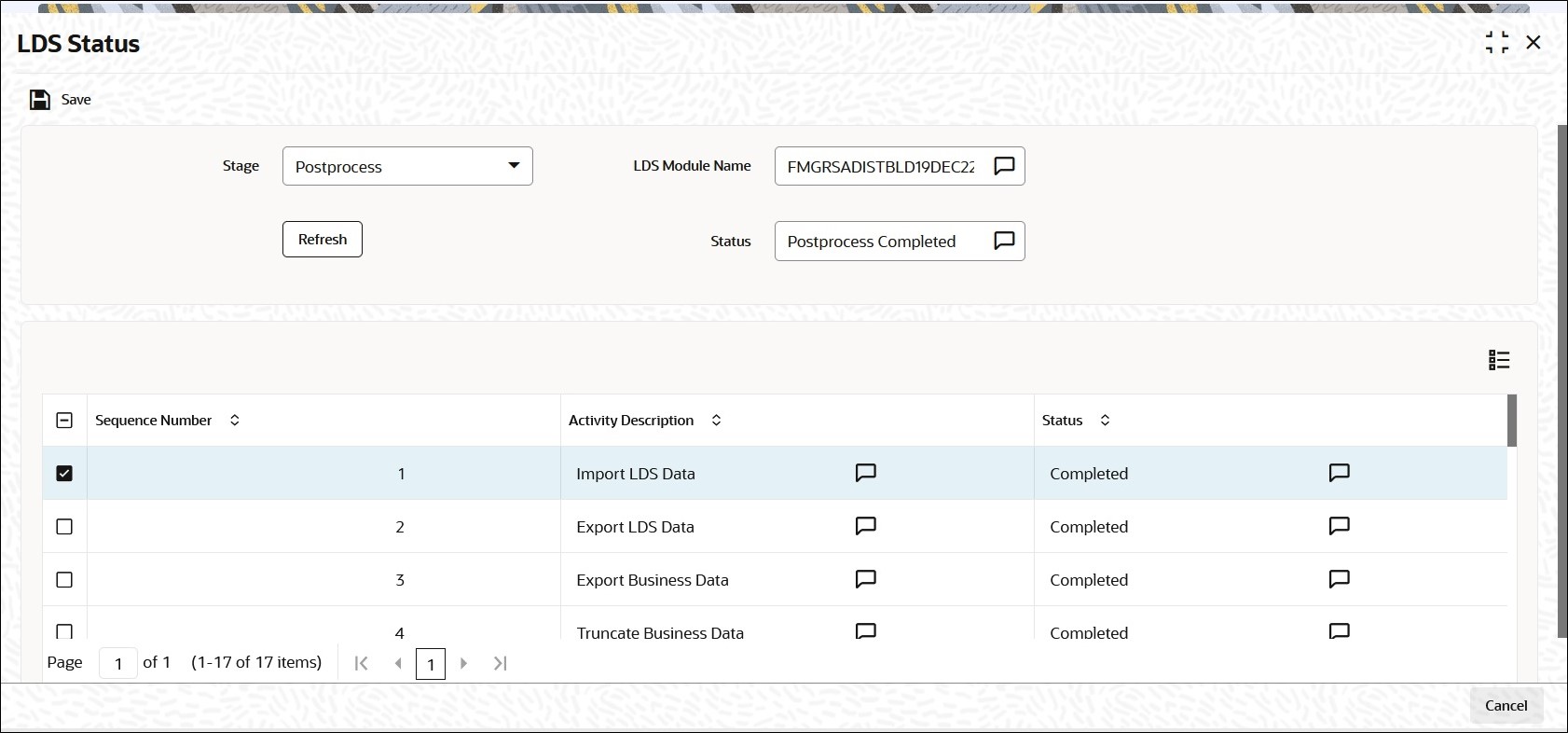

   Figure 2-8 LDS Status_Select Postprocess





   Description of "Figure 2-8 LDS Status_Select Postprocess"



8. Click Refresh button to refresh the status.
