1.17 Perform Process Status

This topic provides the systematic instructions to monitor the progress of asynchronous processes.

The system provides a facility to monitor processes that are being run in the background during a current session. Such processes could typically be scheduled jobs or tasks, being run by the Scheduler Services. They are called asynchronous processes.

A typical example of an asynchronous process is the processing of dividend payment for many funds during one session.

To monitor the progress of asynchronous processes, the batch operator user can use the Process Status screen.

1. On Home screen, type UTDPROST in the text box, and click Next.
   The Process Status screen is displayed.

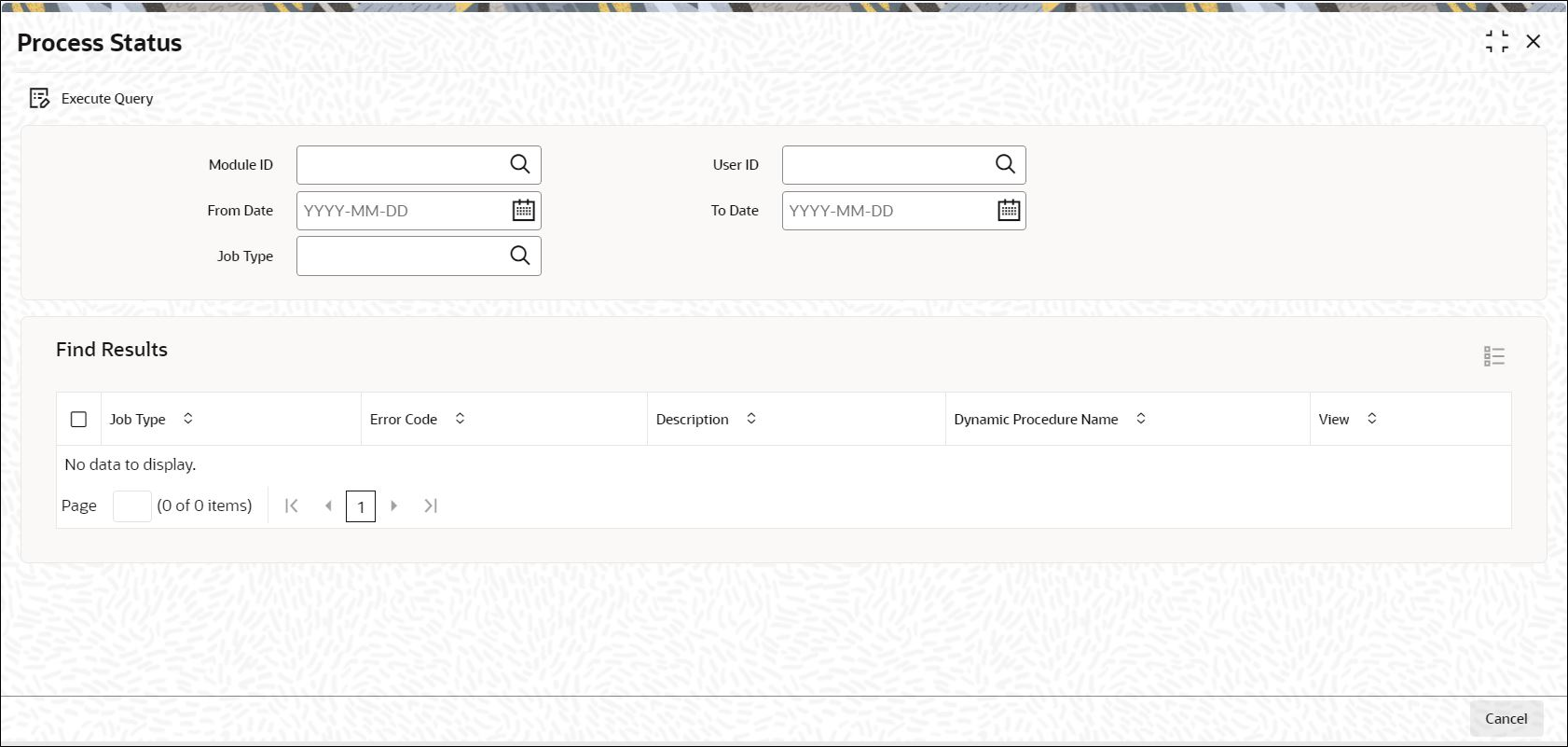

   Figure 1-15 Process Status





   Description of "Figure 1-15 Process Status"



2. On Process Status screen, click Enter Query to enter the details.
   For more information on fields, refer to the field description table.

   Table 1-21 Process Status - Field Description

   Field	Description
   Module ID	Alphanumeric; 50 Characters; Optional Specify the module ID in which the job was submitted.
   User ID	Alphanumeric; 320 Characters; Optional Specify the ID of the user that submitted the job.
   From Date	Date Format; Optional Specify the date range when the job was submitted.
   To Date	Date Format; Optional Specify the date range when the job was submitted.
   Job Type	Alphanumeric; 50 Characters; Optional Specify the ID of the job for which you want to view the progress status.

3. Click Execute Query.
   All jobs retrieved by the search operation are displayed in the Find Results section with their type, status, description and the name of the procedure being run.

   The system displays the following details:

   • Job Type
   • Error Code
   • Description
   • Dynamic Procedure Name
   • View
4. Click View button to view the details of the job, such as descriptions of errors.
   The job details are displayed in the Asynchronous Processing Detail screen.
5. Click Clear All link to clear all asynchronous processing jobs in the Asynchronous Processing Detail screen.
