3.4 Generation of Web service Artifacts through SilentOdtUtility

The topic provides the instructions to generate Web service Artifacts through SilentOdtUtility

To generate web service artifacts for a service, configure the property files of the utility as explained in the previous section.

The following operations needs to be configured in OdtOperations.properties in respective sequence.

Specify the following values for gen parameter of SXML_BULKGENERATION IMPL_FILE, CONFIG_FILES, WSDL_FILE, XSD_FILES, GW_WS_PROP_FILES, ANT_BUILD.

Double click the batch file silentOdt.bat/sh present in the ODT source.

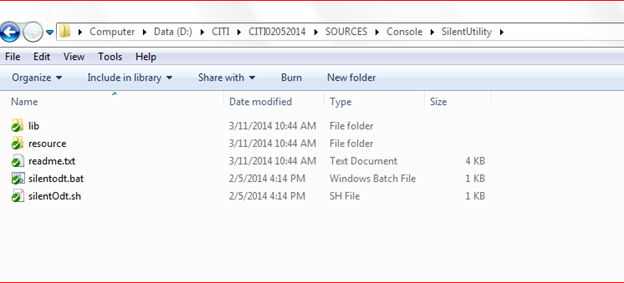

Figure 3-12 SilentODT Sources

Figure 3-13 SilentODT Running in Command Prompt

The following service artifacts files will be generated in the destination directory specified after successful built operation.

Table 3-10 Files and Description

Files	Description
<Service Name>Src\*Impl.java	IMPL files for service
<Service Name>WSDL\*.wsdl	WSDL files for service
<Service Name>Config\*.xml	Config files
<Service Name>XSD\*.xsd	Service specific xsd’s
<Service Name>Common\*.xsd’s	Common XSD’s (call forms ) part of service
<Service Name>\<Service Name>\METAINF\application.xml <Service Name>\<Service Name>\METAINF\MANIFEST.MF	Config XML’s for building the Web service
<Service Name>\<Service Name>\commonscodec-1.2.jar	Utility Jar for building the web service
<Service Name>\<Service Name>\wscommon.jar	Utility Jar for building the web service
Sample Ant file	For building service ear file (Can be modified by Dev team as per Folder structure)

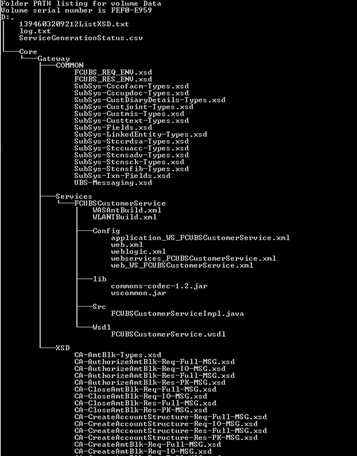

Figure 3-14 SilentODT Generated Files Tree Structure
