2.2.12 UH Signature Tab

This topic provides the systematic instructions to upload the document containing unit holder’s signature using the UH Signature tab in the Unit Holder Maintenance Detail screen.

1. On Unit Holder Maintenance Detail screen, click UH Signature tab.
   The Unit Holder Maintenance Detail screen with the Show image button is displayed.

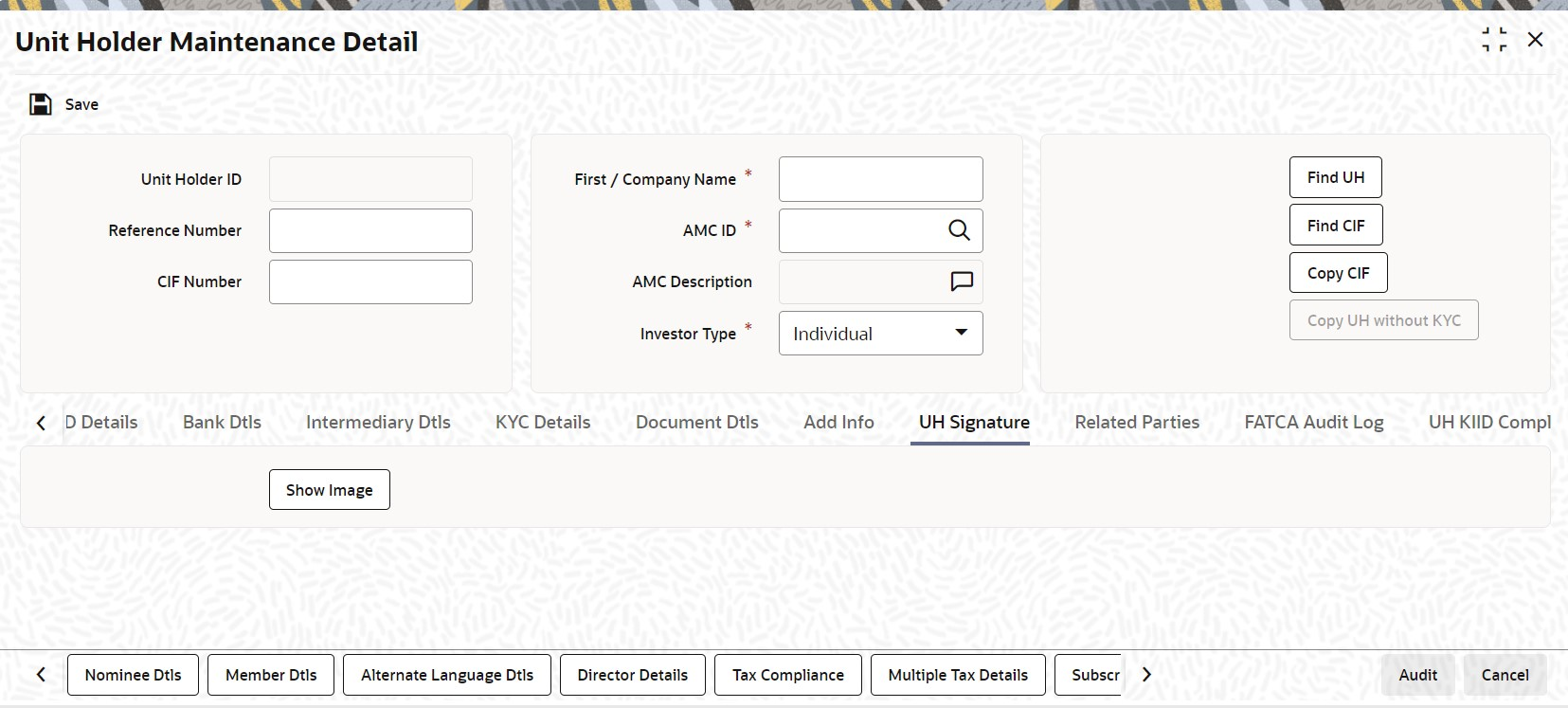

   Figure 2-14 Unit Holder Maintenance Detail_UH Signature Tab





   Description of "Figure 2-14 Unit Holder Maintenance Detail_UH Signature Tab"



2. Click Show image button to invoke the Image Upload screen.
   The Image Upload screen is displayed.

   Figure 2-15 Unit Holder Maintenance Detail_UH Signature Tab_Show Image Button








3. Browse for the required document or image in the Image Upload screen.
4. Click Upload button in the Image Upload screen.
5. Click OK to save after uploading the document or click Exit to exit the Image Upload screen.
