1.3 Data Flow and Integration Patterns

This topic describes about the data flow and integration patterns.

The following diagram provides high-level information on the data flow and integration patterns used in FCIS-FCUBS integration.

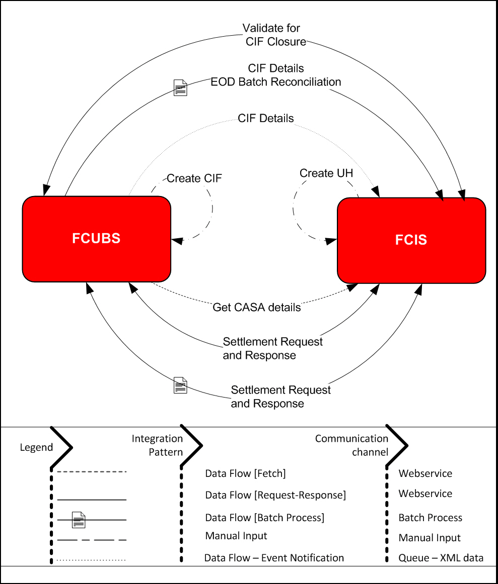

Figure 1-1 Data Flow and Integration Patterns

Description of "Figure 1-1 Data Flow and Integration Patterns"

The following table contains the integration processes, the pattern of each process, and the communication channels:

Table 1-2 Data Flow and Integration Patterns

Integration Process	From	To	Integration Pattern	Communication Channel
Create CIF	FCUBS	NA	Manual Input	Manual Input
Create UH	FCIS	NA	Manual Input	Manual Input
Get CASA Details	FCUBS	FCIS	Fetch (Request-Response)	Web Service
CIF Details	FCUBS	FCIS	Event processing	Queue - XML data
CIF Details EOD Batch Reconciliation	FCUBS	FCIS	Transaction (batch process)	Batch Process
Validate for CIF Closure	FCUBS/FCIS	FCIS/FCUBS	Transaction (Request-Response)	Web Service
Settlement Request and Response	FCUBS/FCIS	FCIS/FCUBS	Transaction (Request-Response)	Web Service
Settlement Request and Response - Batch	FCUBS/FCIS	FCIS/FCUBS	Transaction (batch process)	Batch Process

This integration uses:

• Web services for synchronous processes where the request is sent, and the response is received in real-time.
• Notifications are when data is sent to the target system based on an event.
• Batch processes for data reconciliation.
