2.5 Process Product Nature of Fund Mapping

This topic provides the systematic instructions to map nature of fund to specific products.

You can map only those products which are marked as PIGS compliant at product level.

1. On Home screen, type LEDPNFM in the text box, and click Next.
   The Product Nature of Fund Mapping screen is displayed.

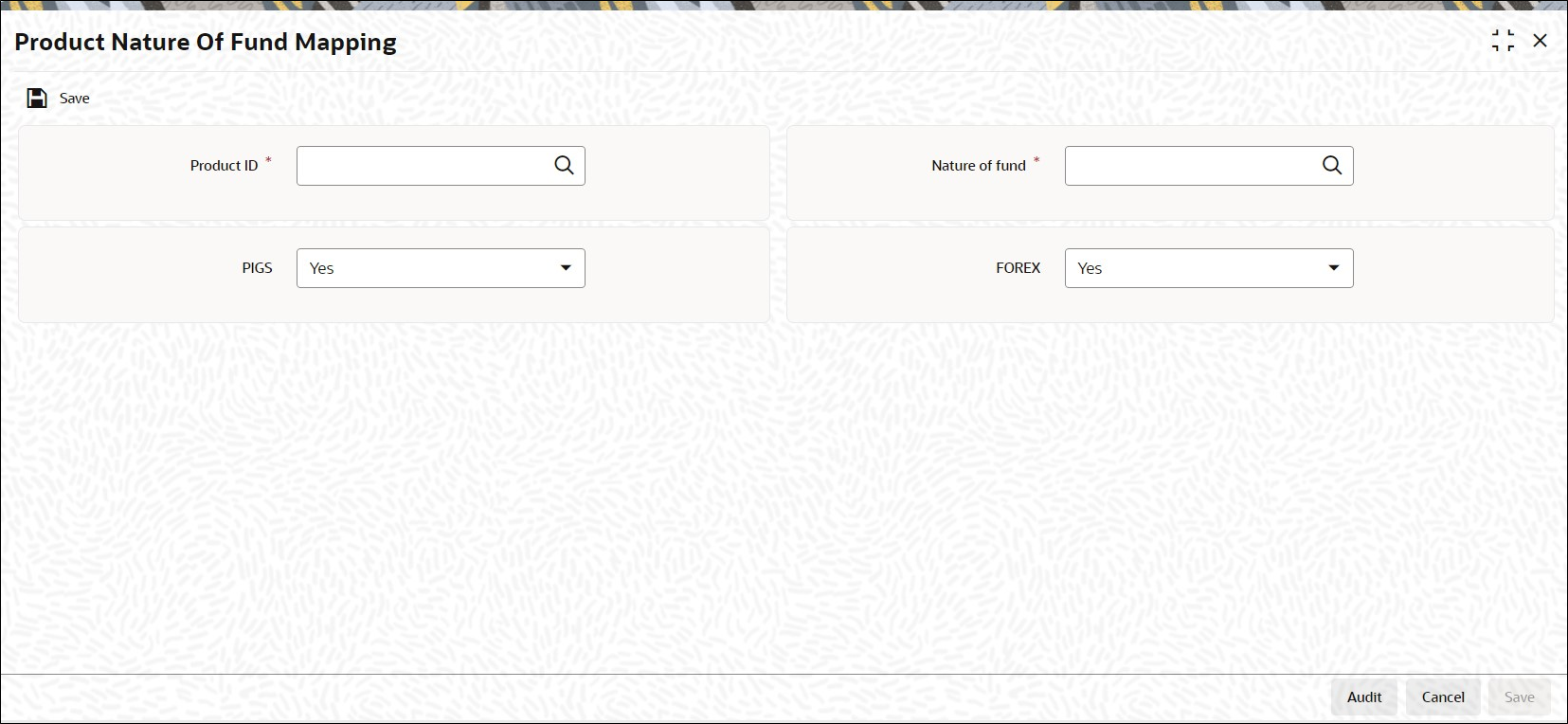

   Figure 2-5 Product Nature of Fund Mapping





   Description of "Figure 2-5 Product Nature of Fund Mapping"



2. On Product Nature of Fund Mapping screen, click New to enter the details.
   For more information on fields, refer to the field description table.

   Table 2-3 Product Nature of Fund Mapping - Field Description

   Field	Description
   Product ID	Alphanumeric; 10 Characters; Optional Specify the PIGS complaint product ID. The adjoining option list displays all valid product ID maintained in the system. You can choose the appropriate one.
   Nature of Fund	Alphanumeric; 3 Characters; Optional Specify the nature of fund based on param maintenance. The adjoining option list displays all valid product ID maintained in the system. You can choose the appropriate one.
   PIGS	Display Select if PIGS value as per product level should be considered or not from the drop-down list. The list displays the following values: Yes No
   FOREX	Optional Select if FOREX value as per product level. should be considered or not from the drop-down list. The list displays the following values: Yes No
   Sub Type	Alphanumeric; 3 Characters; Mandatory Specify the sub type code after entering the transaction type, for which the Sub type transaction is processed.
