7.6 Exchange Rate Source Mapping Summary

This topic provides the systematic instructions to perform the basic operations on the selected records.

Retrieve Exchange Rate Source Mapping Details

  1. On Home screen, type UTSEXRMP in the text box, and click Next.
    The Exchange Rate Source Mapping Summary screen is displayed.

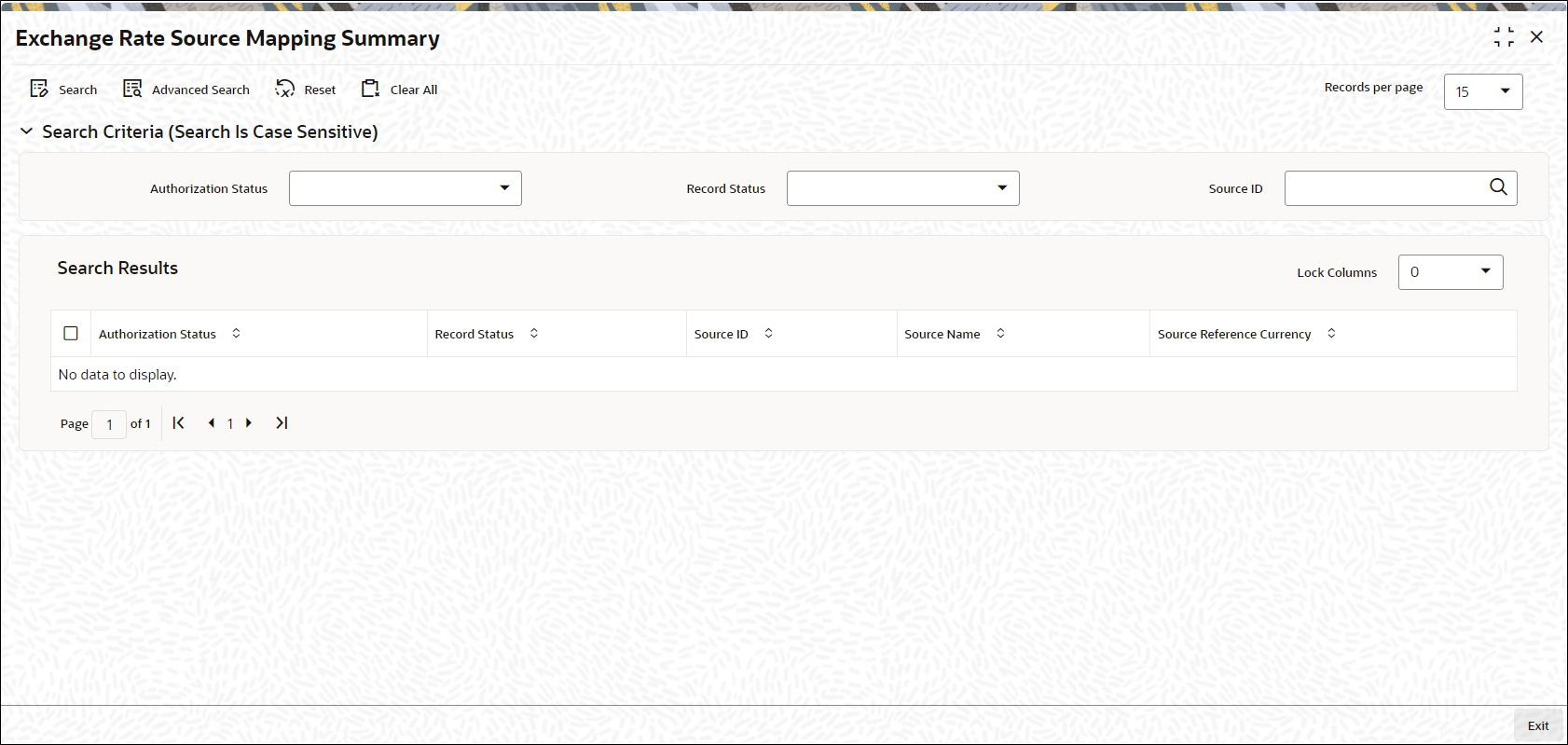

    Figure 7-11 Exchange Rate Source Mapping Summary


    Description of Figure 7-11 follows
    Description of "Figure 7-11 Exchange Rate Source Mapping Summary"

  2. On Exchange Rate Source Mapping Summary screen, specify any or all of the following details in the corresponding fields:
    • Authorization Status - If you choose the status, then the records matching the specified status are retrieved. If you do not choose any option, then all the records are retrieved.
    • Record status
    • Source ID
  3. Click Search button to view the records.
    All the records with the specified details are retrieved and displayed in the lower portion of the screen.

    Note:

    You can also retrieve the individual record detail from the detail screen by querying in the following manner:
    • Press F7
    • Input any parameter in the screen
    • Press F8
  4. Perform Authorize operation by selecting from the Action list. You can also search a record by using a combination of % and alphanumeric value.
    You can search the record for source mapping by using the combination of % and alphanumeric value as follows:
    • Search by A%: The system will fetch all the records whose Source ID starts from Alphabet ‘A’. For example, ACCB.
    • Search by %7: The system will fetch all the records whose Source ID has 7. For instance: ACT7.

Parent topic: Set up Loads
