3.9 Process Amendment Details

This topic provides the systematic instructions to maintain amendment details.

FCIS facilitates maintenance of nodes and fields which are amended through external system.
  1. On Home screen, type UTDAMDMT in the text box, and click Next.
    The Amendment Details screen is displayed.

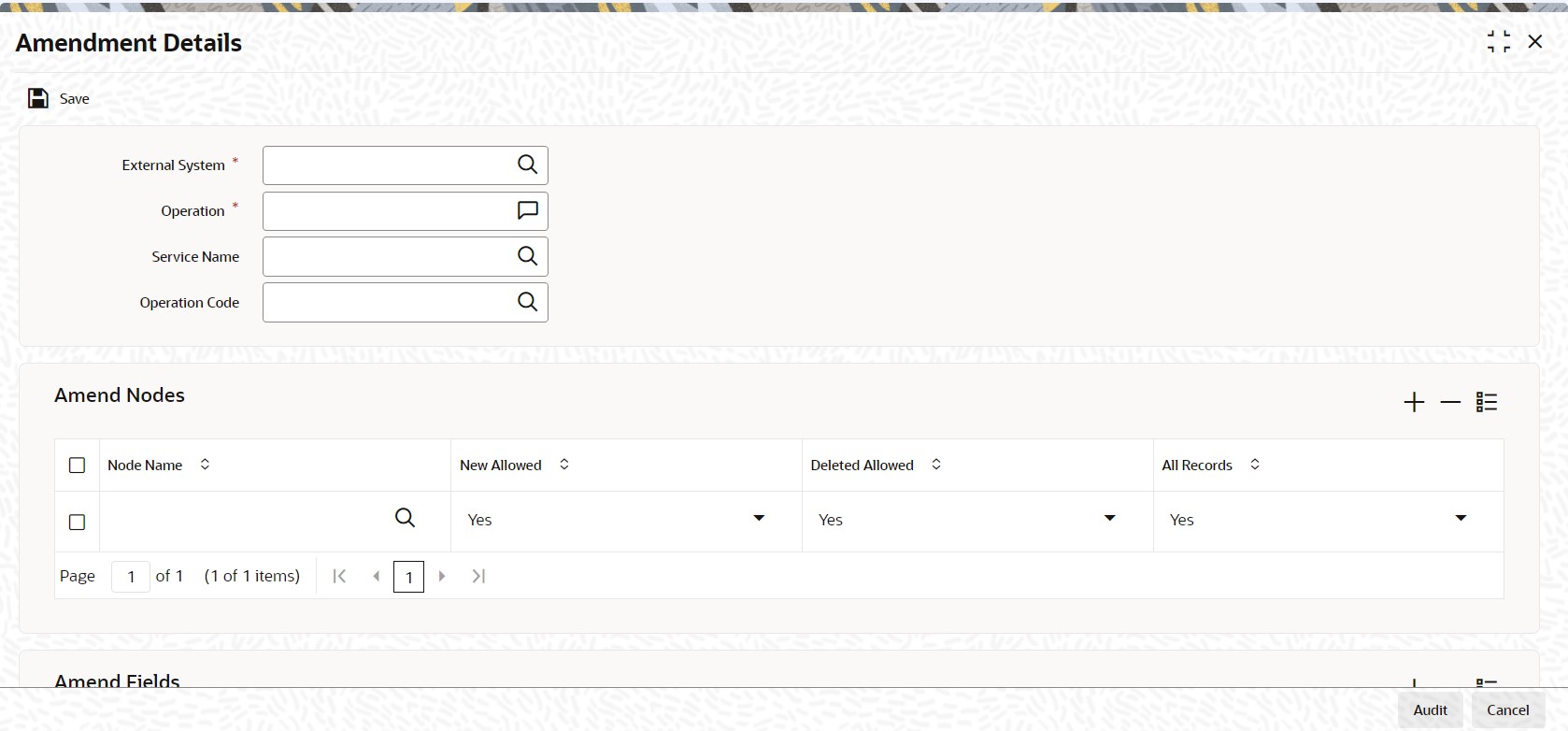

    Figure 3-9 Amendment Details


    Description of Figure 3-9 follows
    Description of "Figure 3-9 Amendment Details"

  2. On Amendment Details screen, click New to enter the details.
    For more information on fields, refer to the field description table.

    Table 3-5 Amendment Details - Field Description

    Field Description
    External System

    Alphanumeric; 12 Characters; Mandatory

    Select an external system for which amendable maintenance is done, from the adjoining option list.
    Operation

    Alphanumeric; 50 Characters; Mandatory

    Specify the Gateway operation for which Amendable maintenance is done.
    Service Name

    Alphanumeric; 50 Characters; Optional

    Select the service name for which amendable maintenance is done, from the adjoining option list.
    Operation Code

    Alphanumeric; 50 Characters; Optional

    Select the operation code from the adjoining option list.
    Amend Nodes

    The section displays the following fields.
    Node Name

    Alphanumeric; 50 Characters; Mandatory

    Specify the name of the node which can be amended through external system. The adjoining option list displays the list of nodes.
    New Allowed

    Optional

    Select whether new records can be added in the node or not from the drop-down list. The list displays the following values:
    • Yes
    • No
    Deleted Allowed

    Optional

    Select whether existing records can be deleted from the node or not from the drop-down list. The list displays the following values:
    • Yes
    • No
    All Records

    Optional

    Select if all records had to be amended or not from the drop-down list. The list displays the following values:
    • Yes
    • No
    Amend Fields

    The section displays the following fields.
    Field Name

    Alphanumeric; 50 Characters; Optional

    Specify the field name which can be amended through external system. The adjoining option list displays the list of the fields in the node.

Parent topic: External System Maintenance
