1.1 Set Up Common Properties

This topic describes the process of setting common properties of Scheduler.

1. You can choose an option for modifying the common property values.
   The following screen is displayed.

   Figure 1-8 Plugin Details





   Description of "Figure 1-8 Plugin Details"



2. On Common Property Values screen, enter the following details.
   Refer to the table for Common Properties.

   Table 1-2 Common Property Values

   Field	Description
   Debug Logs Required	Select Yes from the drop-down list if you require debug option. If you do not require debug option, select No.
   Work Area	Specify the work area. For example: D:\BrnDbgs\
   Signature Path	Specify the location at which the signature images will be placed.
   Excel Path	Specify the location at which the excel files will be generated.
   Data Source	Specify the JNDI location which points to SMS schema. The standard format is jdbc/fcisdevDS.
   Request Time Out	Specify the database request time out value in seconds. This is the maximum number of seconds the database will wait for a query to return the result.
   Connection Time Out	Specify the database connection time out value in seconds. This is the maximum number of seconds the application will wait for a connection to the database to open.
   LOV Fetch Required	If you check this box, the option lists in Oracle FLEXCUBE will display the matching values based on the first characters that you enter in a field. That is, if you specify the first three characters of a value to be entered in an option list, the system will display the complete list of values that are matching the first three characters. If you do not check this box, the option lists will not display the matching values based on the first few characters. You need to specify the complete value against the field.
   Max Image Size	Specify the maximum image size in bytes.

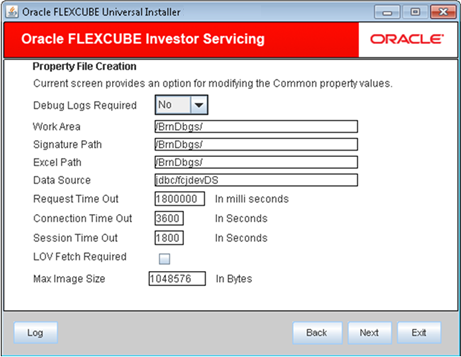

   Figure 1-9 Common Property Values





   Description of "Figure 1-9 Common Property Values"
