1.1 Set up User creation Utility

This topic explains the steps involved in setting up User Creation Utility.

  1. Double-click FCUBSInstaller.bat batch file to start Oracle FLEXCUBE Universal Installer.
    The Oracle FLEXCUBE Universal Installer screen is displayed.

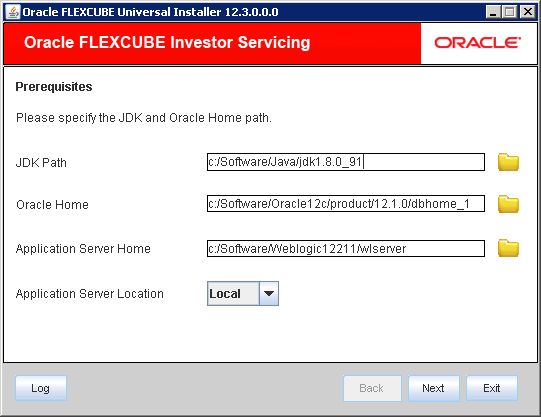

    Figure 1-1 Oracle FLEXCUBE Universal Installer


    Description of Figure 1-1 follows
    Description of "Figure 1-1 Oracle FLEXCUBE Universal Installer"

  2. On Oracle FLEXCUBE Universal Installer screen, enter the following details.
    Refer to the table for JDK and Oracle Home path.

    Table 1-1 JDK and Oracle Home path

    Field Description
    JDK Path

    Provide Home folder path of JDK1.8.
    Oracle Home

    Provide home folder path of Oracle Client or Database.
    Application Server Home

    Provide home folder path of Application Server.
    Application Server Location

    Select location of the application server either as local or remote.
  3. Click Next to select the utility option for installation.
  4. Select User Creation from the lists of Utilities option.
    The options available for installation are displayed.

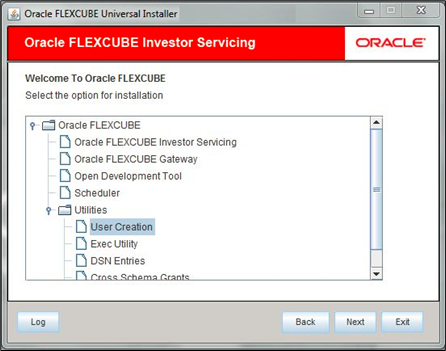

    Figure 1-2 Utilities_User Creation


    Description of Figure 1-2 follows
    Description of "Figure 1-2 Utilities_User Creation"

  5. Click Next to provide schema details.
    The following screen is displayed.

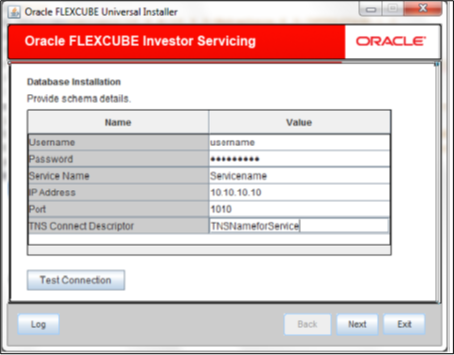

    Figure 1-3 Schema Details


    Description of Figure 1-3 follows
    Description of "Figure 1-3 Schema Details"

  6. Specify the following schema details for which the user has to be created.
    Refer to the table for schema details.

    Table 1-2 Schema details

    Field Description
    User Name

    Specify the user name to access the schema.
    Password

    Enter the schema password.
    Service Name

    Specify service name of Database.
    TNS Connect Descriptor

    Specify a valid connect string that contains the details for database connectivity.
    IP Address

    Specify the IP address of the system where the database schema is installed.
    Port

    Specify the port number.
  7. Click the Test Connection button to check the status of the connection to database.
    • If the connection is established, the installer displays a message Connection Successful.
    • If there is an error in establishing the connection, the system displays the message Invalid DB Credentials.
    • If the TNS entry is not proper, the installer displays the message TNS entries are not proper.
    Once the connection is established, the following message is displayed.

    Figure 1-4 Information Message on Successful Connection


    Description of Figure 1-4 follows
    Description of "Figure 1-4 Information Message on Successful Connection"

  8. Click Next to proceed with the user creation.
    The following screen is displayed.

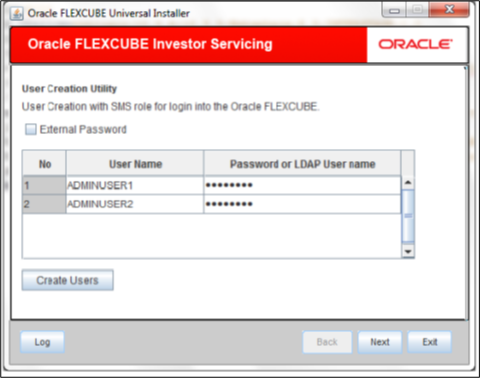

    Figure 1-5 User Creation Utility Details


    Description of Figure 1-5 follows
    Description of "Figure 1-5 User Creation Utility Details"

  9. Specify the following details in the User Creation Utility.
    1. Username: Specify the username.
      You cannot use ‘_’ (Underscore) in the username.
    2. Password: Specify the password.
      Two users can be created at a time.
  10. Click Create Users.
    The following screen is displayed on successful creation of users.

    Figure 1-6 Information Message on Successful User Creation


    Description of Figure 1-6 follows
    Description of "Figure 1-6 Information Message on Successful User Creation"

Parent topic: User Creation Utility
