2.7 Actions

This topic describes about the actions screen for Call Forms.

1. Mention the web service and amendable information in the Form Actions Screen.

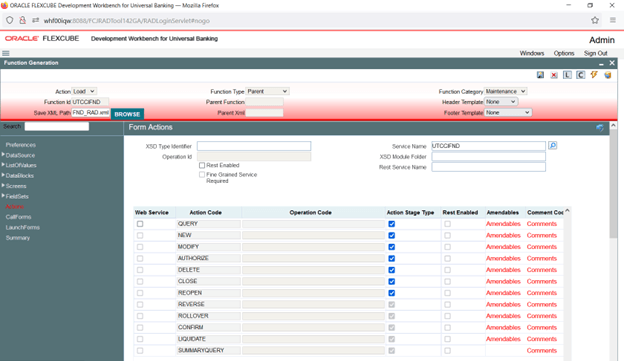

   Figure 2-12 Actions Screen





   Description of "Figure 2-12 Actions Screen"



2. Call forms will generate only Type XSD. Operation specific message xsd’s will not be generated. Call form Type will be part of the main function Id xsd; hence separate message xsd is not required for call form Subsys will be added to the name of call form type xsd.
   Example: The example given in the figure, name of the xsd generated will be SubSysTxnChgDtls-Types.xsd.
3. You need not to maintain Operation Id and Operation Code for the above mentioned reason.
4. Maintain amendable information similar to any other function id’s.
