2.3 Data Sources

This topic describes about defining the data sources for Call Forms.

1. Identify the tables/views for the call form. Define Data Sources and add data source fields as required in the Data Source Details screen.
   Master Data Source has to be a single entry data source.

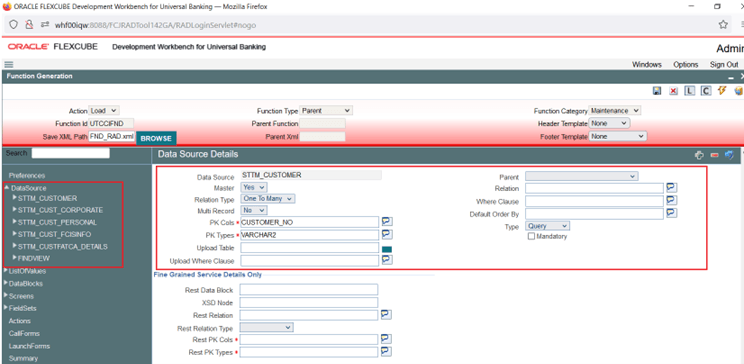

   Figure 2-4 Adding data sources and maintaining properties





   Description of "Figure 2-4 Adding data sources and maintaining properties"



2. Maintain Logical Relationships for all data sources except the Parent.
3. Provide PK Cols and PK Types for all data sources.

   Note:

   If data source is a Multi Record block, then make sure it has at least one more pk than its parent which helps to uniquely identify each record of multi record block. Max length of the data source field can be modified as per requirement.

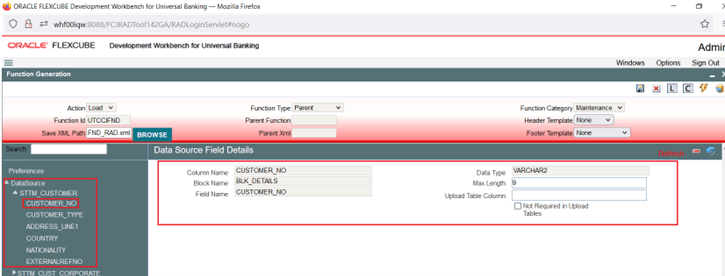

   Figure 2-5 Adding data sources fields and its properties





   Description of "Figure 2-5 Adding data sources fields and its properties"
