2.1 Header Information

This topic describes about defining the header information for Call Forms.

1. On Expand Menu of the Development Workbench for Universal Banking, click Function Generation node.
   The Function Generation screen displays.

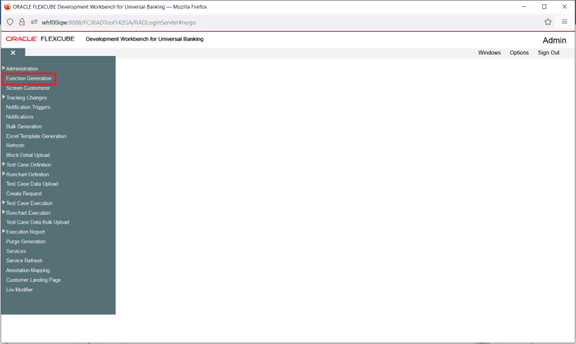

   Figure 2-1 Function Generation





   Description of "Figure 2-1 Function Generation"



2. On the Function Generation screen, specify the following fields in the Header section for CallForms.
   For more information on fields, refer to the field description table.

   Table 2-1 Function Generation - Field Description

   Field	Description
   Function ID	It is the name of the Call Form. Call Form name has to have the third character as C. This is how system differentiates a call form from other screens. Ideally, the length of the name should be 8 characters. Example: UTCCIFND, UTCAPPUH etc. are valid call form names.
   Function Category	It is the Call Form Category. It has to be either Maintenance or Transaction depending on the functionality and the screens from which it will be invoked.
   Footer Template	Select the footer template from the drop-down list. None Maint Audit Maint Process Process Footer template can be provided as required. Note for Transaction screens, footer template has to be selected as None unless it is a process screen.
   Function Type	Parent and child functionality is supported for call forms.

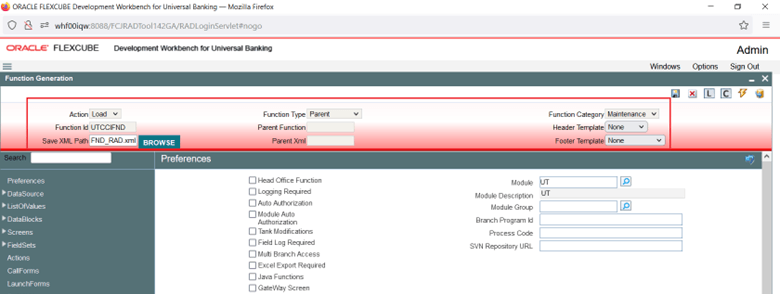

   Figure 2-2 Call Form header Information





   Description of "Figure 2-2 Call Form header Information"
