1.1.1 Develop New Child screen

This topic provides the systematic instructions to develop a new Child screen.

1. On Expand Menu of the Development Workbench for Universal Banking, click Function Generation node.
   The Function Generation screen displays.

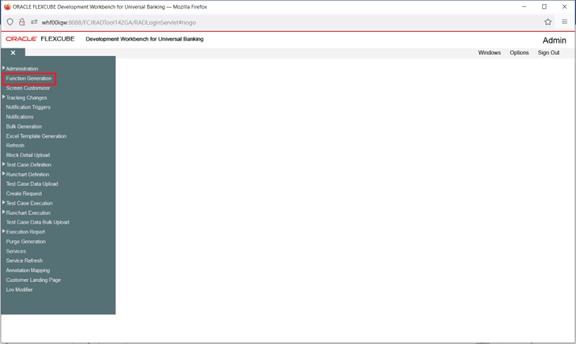

   Figure 1-1 Function Generation





   Description of "Figure 1-1 Function Generation"



2. On the Function Generation screen, specify the fields in the Header section.
   For more information on fields, refer to the field description table.

   Table 1-1 Function Generation - Field Description

   Field	Description
   Action	Select New from the drop-down list.
   Function Type	Select Child from the drop-down list.
   Parent XML	On entering details for fields Action and Function Type, the Parent XML field is enabled. Click BROWSE and select the required parent function from the hard disk. On successful loading, the parent function will get updated with the parent function ID value. Parent function can be either a parent function ID or a child function ID.
   Parent Function	The Parent Function field defaulted to the name of the function id that has loaded as the parent.
   Function Category	The Function Category field defaulted with the category of the parent. It cannot be modified.
   Function ID	Enter Child function ID in the Function ID field. Apply standard naming conventions.
   Header Template	Select the header template from the drop-down list: None Process
   Save XML Path	Specify the XML path.
   Footer Template	Select the footer template from the drop-down list. None Maint Audit Maint Process Process

3. On the Function Generation screen, Select Action asNew and Function Type as Child.
   The Function Generation_Child screen is displayed.

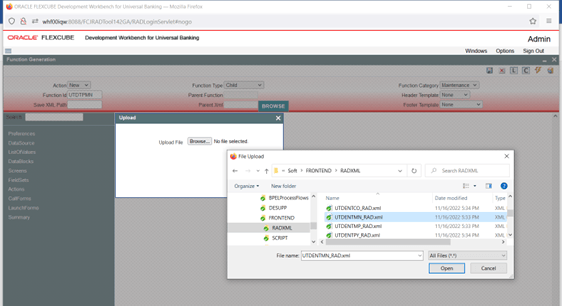

   Figure 1-2 Function Generation_Child





   Description of "Figure 1-2 Function Generation_Child"



4. Click BROWSE and select the required parent function.
5. On the Function Generation screen, click Generate.
   The Preferences screen displays.

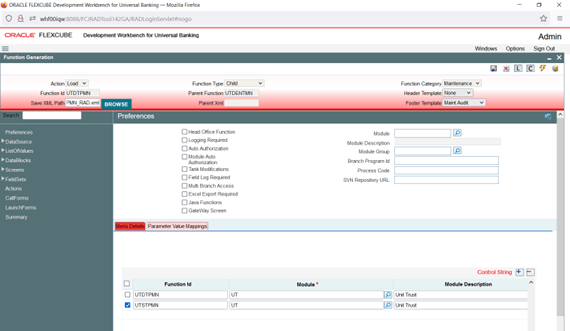

   Figure 1-3 Preferences node of Child screen





   Description of "Figure 1-3 Preferences node of Child screen"




   In the Preferences screen, the function ID name must be of the child screen, and not of the parent screen. On the tab out of the Preferences node, the function name gets changed automatically if not changed manually. Hence developer has to visit the Preferences node at least once before generating files for the child function ID.
