1.2.1 Develop New Screen Child

This topic provides the systematic instructions to develop a new Screen Child.

1. On Expand Menu of the Development Workbench for Universal Banking, click Function Generation node.
   The Function Generation screen displays.

   Figure 1-5 Function Generation

2. On the Function Generation screen, specify the fields in the Header section.
   For more information on fields, refer to the field description table.

   Table 1-2 Function Generation - Field Description

   Field	Description
   Action	Select New from the drop-down list.
   Function Type	Select Screen Child from the drop-down list.
   Parent XML	On entering details for fields Action and Function Type, the Parent XML field is enabled. Click BROWSE and select the required parent function from the hard disk. On successful loading, the parent function will get updated with the parent function ID value. Parent function can be either a parent function ID or a child function ID.
   Parent Function	The Parent Function field defaulted to the name of the function ID that has loaded as the parent function.
   Function Category	The Function Category field defaulted with the category of the parent. It cannot be modified.
   Function ID	Enter Screen Child function ID in the Function ID field. Apply standard naming conventions.
   Header Template	Select the header template from the drop-down list: None Process
   Save XML Path	Specify the XML path.
   Footer Template	Select the footer template from the drop-down list. None Maint Audit Maint Process Process

3. On the Function Generation screen, Select Action asNew and Function Type as Screen Child.
   The Function Generation_Screen Child is displayed.

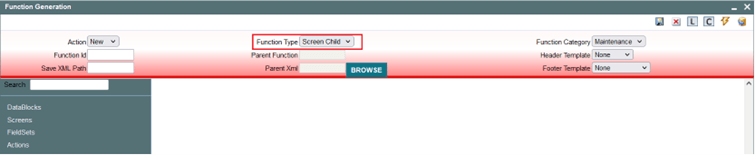

   Figure 1-6 Function Generation_Screen Child





   Description of "Figure 1-6 Function Generation_Screen Child"




   Figure 1-7 Function Type - Screen Child

4. Click BROWSE and select the required parent function.
5. On the Function Generation screen, click Generate.
   The following 4 nodes of the parent can only be modified in Screen Child creation:

   • Data Blocks
   • Screens
   • Field Sets
   • Actions
   The Node options in Screen Child displays.

   Figure 1-8 Node options in Screen Child





   Description of "Figure 1-8 Node options in Screen Child"
