2.7 Actions

This topic describes about the actions screen for Online Forms.

Mention the web service and amendable information in the Form Actions screen.

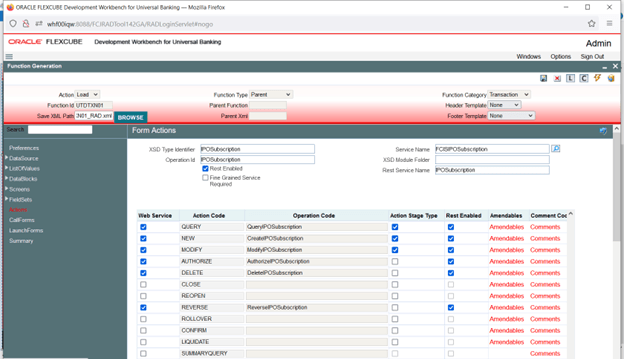

Figure 2-14 Actions Screen

Description of "Figure 2-14 Actions Screen"

Create Fieldsets and attach the fields to the field sets as required.

Mention the web service and amendable information in Actions Screen.

While maintaining web services and amendable information, note the following:

• Online forms will generate Type XSD and Message XSD. Operation-specific message xsd’s will be generated. For example, name of the xsd generated will be:
  • LC-Contract-Types.xsd (Type XSD for LC Contract)
  • LC-CreateContract-Req-Full-MSG.xsd (Create Message XSD for LC Contract)
  • LC-CreateContract-Req-IO-MSG.xsd (Create Message XSD for LC Contract)
  • LC-CreateContract-Res-Full-MSG.xsd (Create Message XSD for LC Contract)
  • LC-CreateContract-Res-PK-MSG.xsd (Create Message XSD for LC Contract)
• Operation Id and Operation Code need to be maintained for the above reasons.
• Amendable information has to be maintained similar to any other function ids.
