1.1 Enable Rest in RADXML

This topic provides the systematic instructions to enable REST in RADXML.

On the Development Workbench login page, specify the Username and Password and login to the Development Workbench landing page.

1. On Home Screen, click Function Generation node under the Browser menu.
   The Function Generation screen is displayed.

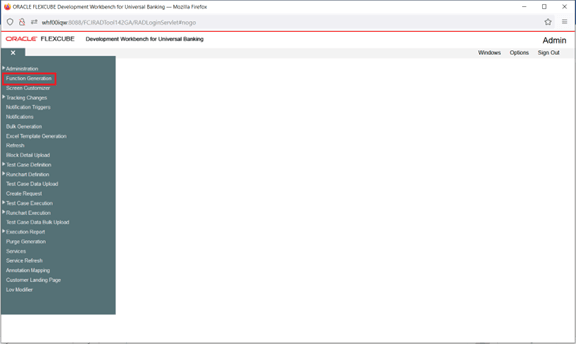

   Figure 1-1 Function Generation





   Description of "Figure 1-1 Function Generation"



2. Click the Actions node at the left panel.
   The Form Actions screen is displayed.

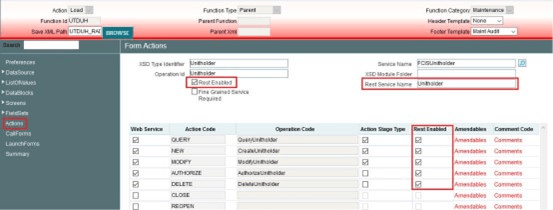

   Figure 1-2 Form Actions





   Description of "Figure 1-2 Form Actions"



3. On the Form Actions screen, specify the fields.
   Refer to the topic Create Action Screen for the detailed information.
4. On the Form Actions screen, select the Rest Enabled checkbox to enable REST Services for a function ID.
5. Specify the Rest Service Name.
6. Select the Action Code in the Rest Enabled column which needs to be enabled as part of REST Services.
7. Specify the Service Name and Operation ID fields which are mandatory for REST Services to generate static data.
8. Compile all the INC’s generated as part of RAD Artifacts.
