1.3.3.2 OdtOperations.properties

This topic gives an overview on OdtOperations.properties.

Configure the Operations files as per requirement.

The following operations are supported in the silent utility of ODT:

1. LOGIN
2. SETRELEASE: Setting Release and Environment Details
3. BULKGENERATION: Bulk Generation of RADXML units
4. REFRESH: Bulk refresh of RADXML
5. SXML_REFRESH: Bulk refresh of Service XMLs
6. SXML_UPDATER: Bulk Updater of service XMLs based on the changes in RADXMLs
7. SXML_BULKGENERATION: Bulk Generation of web service artifacts.
8. REST_GENERATION: Bulk Generation of Rest Service Artifacts

Execution of Operation will be as per the sequence maintained in OdtOperations.properties.

For Example:

1. Operation = LOGIN
2. Operation= SETRELEASE
3. Operation= REST_GENERATION

If the sequence of operations is as above, then LOGIN, SETRELEASE, and REST_GENERATION Operations would be processed in the respective sequence.

Note:

LOGIN and SETRELEASE are mandatory operations to be performed.

All Configuration files can be found inside/resource folder of the utility.

1. LOGIN

   User ID: Provide the ODT User ID which is created in the ODT Application.

   Password: Provide the ODT Password which is created in the ODT Application.

   Login should always be the first operation to be configured as part of any execution.

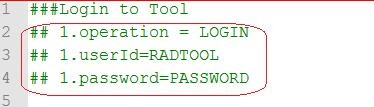

   Figure 1-4 Login Operation





   Description of "Figure 1-4 Login Operation"




   Table 1-2 LOGIN Operation

   Field	Description
   Operation	LOGIN
   User Id	ODT User Id which is created in the ODT Application.
   Password	ODT Password which is created in the ODT Application (should be encrypted using Utility).

2. SETRELEASE
   This operation is used for setting Release and Environment Preferences for SilentODTUtility. Connection to the FLEXCUBE schema would be established based on data maintained in ODT or through the data in env_config.xml as explained in an earlier section.

   Figure 1-5 SETRELEASE Operation





   Description of "Figure 1-5 SETRELEASE Operation"




   Table 1-3 Release and Environment Details for User

   Field	Description
   Operation	SETRELEASE
   relCode	ODT Release Code which is created in the ODT Application.
   envCode	ODT Environment Code which is created in the ODT Application.
   langCode	Lang code for the above-mentioned release code.

3. REST_GENERATION
   Web service artifacts can be generated through this operation.

   Table 1-4 REST_GENERATION

   Field	Description
   radxmlListFile	Prepare text file which contains absolute path of all RADXMLs which are used for those services.
   srcPath	Provide source folder path which is an option (Tool will create radxmlListFile by itself from the srcPath. Note that if srcPath is provided, radxmlListFile need not be provided.
   destpath	Provide the path where the files will be generated.
   gen	Provide the type of files to be Generated (separated by comma). Options are REST.

   Table 1-5 Service XML Component Generator

   Input	Output
   operation	REST in destination path
   radxmlListFile	REST in destination path
   srcPath	REST in destination path
   fileType	REST in destination path
   destpath	REST in destination path
   gen	REST in destination path
