2 Header Information

This topic provides the systematic instructions to update header information.

  1. Log in to the Development Workbench for Universal Banking using the credentials maintained.
    Refer to the topic Development Workbench - Administration for creating users.
  2. Map the session to the release and environment as required.
    Refer Development Workbench – Getting Started for detailed explanation.
  3. Click Function Generation node in the browser tree found in the Landing page of ODT.
    The Function Generation screen is displayed.

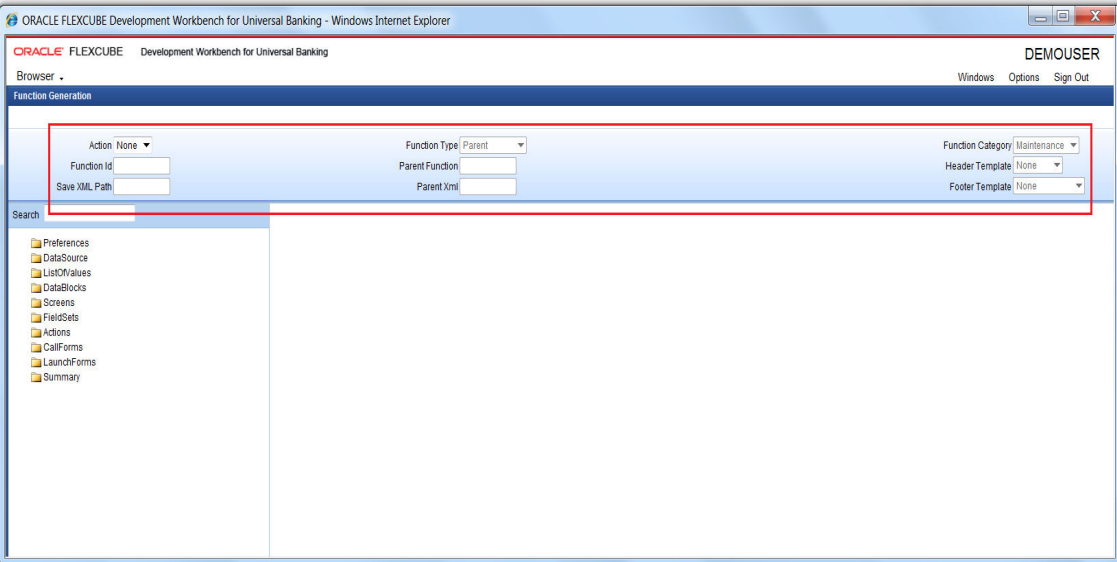

    Figure 2-1 Function Generation


    Description of Figure 2-1 follows
    Description of "Figure 2-1 Function Generation"

  4. On Function Generation screen, specify the following.
    For more information on this, refer to the field description table.

    Table 2-1 Function Generation - field Description

    Field Description
    Action

    New and Load options are provided for this field.

    For a new screen development, select the action as New; if an existing screen radxml has to be loaded for customization select the Load option.

    If the action is Load, then corresponding radxml has to be loaded using browser option in Save Xml Path; all the header information will get populated

    Function Id

    If the Action is selected as New, the function Id name needs to be specified. Function Id is the unique name with which a screen is identified.

    Function Id name should follow the FLEXCUBE standard naming convention.

    • Function Id name to have maximum length of 8 characters.
    • For detail screens, the third character should be D.
    • For report screens, the third character should be R.
    • For call form function ids the third character should be C
    • First 2 characters should specify the module name for which the particular function id is used.
    Function Type

    The Function Type can be Parent or Child or Screen Child (based on the screen which has to be designed).

    For more information, refer to the Function Type table.

    Parent Function

    This field is applicable only if the function type is child/screen child and this field will be populated when the parent RAD xml is loaded. This is a read only field.

    Save Xml Path

    The label description of the field will change depending on the action .If the action is load, ODT attaches the Browse button to it so that user can browse the radxml and load it.

    If the action is New, Save Xml Path is optional.

    If provided, then the generated units will be saved in the path mentioned. Note that the value in the Save Xml Path will be used only if the Save Format is Client Path and if the User has given CURRENT_DIRECTORY in the User Preferences of the Work Directory.

    Parent Xml

    This field is also applicable only if the Function type is child/screen child. If the Function Type is child/screen child user has to load the radxml of the Parent Function using browse button provided to this field.

    It is non editable field if the action is Load.

    Function Category

    Provide Function category depending on the type of screen being developed. ODT provides the following options:

    For more information on this, refer to the Function Category table.

    Header Template

    A template can be selected for header.

    For more information on this, refer to the Header Template table.

    Footer Template

    A template can be selected for footer. The following options are provided.

    For more information on the field, refer to the Footer Template table.

    Table 2-2 Function Type

    Field Description
    Parent This is the default option and can be used for normal screen development.
    Child This option can be selected if the screen has to be the child of another screen .i.e. inherits all the properties of another screen which will be its parent. Properties can be modified in the child level.
    Screen Child This option can be selected if the screen has to be the screen child of another screen, i.e. it inherits all properties from its parent. Only screen layout changes can be done in the screen child screen.

    Table 2-3 Function Category

    Field Description
    Maintenance

    These screens are typically used to maintain static data used across the system. These screens include product definition function as well.

    Example: Branch Parameters Maintenance

    Transaction

    These screens are typically used to capture contract related data. Any operations related to contracts are performed in these screens

    Example: Funds Transfer Contract Input screen

    Report These screens are used to capture data required to generate a BI Publisher canned reports.

    Example: General Ledger balance report

    Summary If only query operation is required for the particular function Id, then function category can be selected as summary.
    Others If developer feels that existing handles provided in maintenance/transaction screens in extensible framework is inadequate (or not necessary) for the screen; screen can be designed as others. Note that all business logic would have to be manually written by the developer for others screen.

    Table 2-4 Header Template

    Field Description
    None This is the default header and should be used for all screens except workflow screens.
    Process

    This template can be selected for workflow screens. The following Fields will be added to the header section as part of this template.

    1. Workflow Reference
    2. Priority

    Table 2-5 Footer Template

    Field Description
    None

    This is the default value.
    Maint audit

    This template can be used for maintenance screens. Ensure that master data source has the standard audit columns.

    Audit block field names are reserved filed names and hence cannot be used as the name of any other block field.

    For more information on the field, refer to the Audit Column and corresponding Block Fields table.

    Note: When template is selected, ODT automatically adds the fields to Data Source and Blocks and adding these fields manually to data blocks results in erroneous behavior.

    Maint Process

    In this template along with maintenance audit fields System would automatically add a control block and Process related fields. This template can be used for workflow maintenance screens.

    Process

    Only process related Fields will be added to the Footer. This can be used for work flow transaction screens. As part of process template; previous remarks, remarks, outcome and audit block will be created in the footer.

    Table 2-6 Audit column and corresponding Block Fields

    Column Name Block Field Name
    MAKER_ID MAKER
    MAKER_DT_STAMP MAKERSTAMP
    CHECKER_ID CHECKER
    CHECKER_DT_STAMP CHECKERSTAMP
    MOD_NO MODNO
    RECORD_STAT RECSTAT
    ONCE_AUTH ONCEAUTH
    ONCE_AUTH AUTHSTAT
    For example, For Funds Transfer Contract Input Screen name can be given as FTDTRONL. Here FT is the module (Funds Transfer), third letter D denotes it is a normal detail screen, and Length of the function Id is 8.

    If the action selected is Load, function Id field will be disabled. It will be picked up from the radxml which is loaded.
