4 Order Changes

This topic explains the systematic instructions for the Order Changes in the View Changes Excel screen.

1. On the Development Workbench, under Tracking Changes, click Change Report.
   The View Changes Excel screen displays.

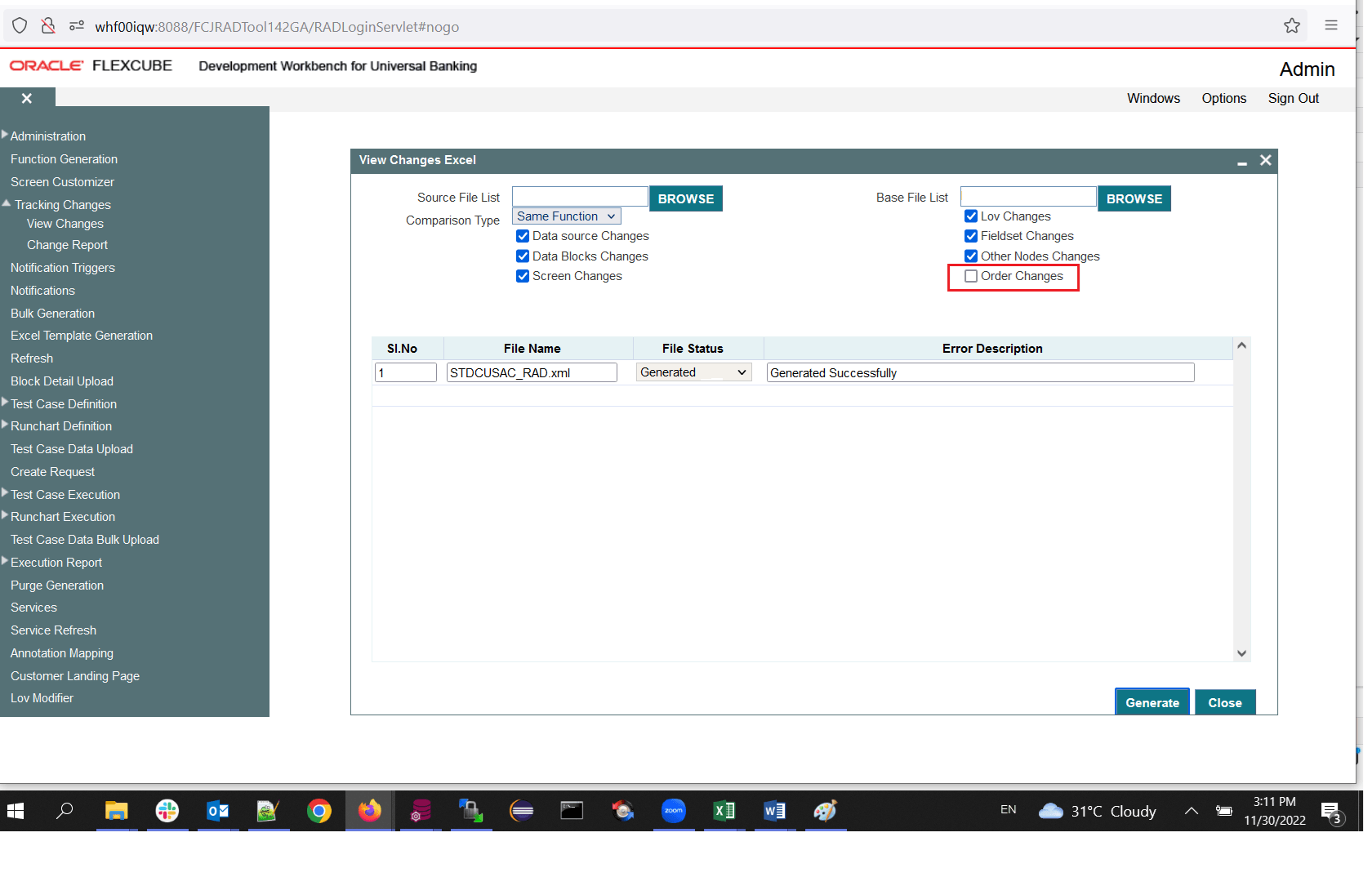

   Figure 4-1 Order Changes





   Description of "Figure 4-1 Order Changes"



2. On click of this order changes, the nodes are compared for the order maintained in the radxml of respective releases. The order changes will affect the following nodes:
   1. FIELD_ORDER
   2. FIELDSET_ORDER
   3. TAB_ORDER
   4. SEC_ORDER
   5. DATA_BLK_ORDER
   6. BLK_FIELD_ORDER
3. On the View Changes Excel screen, input the Source File List, Base File List and check the Order Changes checkbox.
4. Click Generate.
   (Assumption) On the Order Changes excel, the compared RADXML's changes are displayed.
   All the orders are compared between sources and base RADXML's and View Changes Excel Report is generated.
5. Click the Fieldsets tab.
   Order Changes for fieldsets is displayed.

   Figure 4-2 Order Changes_Fieldsets





   Description of "Figure 4-2 Order Changes_Fieldsets"
