1.1 Process Steps - View Changes

This topic provides systematic instructions to perform View Changes.

  1. On Home Screen, under the Browser node, click Tracking Changes.
    It has the following options:
    • View Changes
    • Change Report

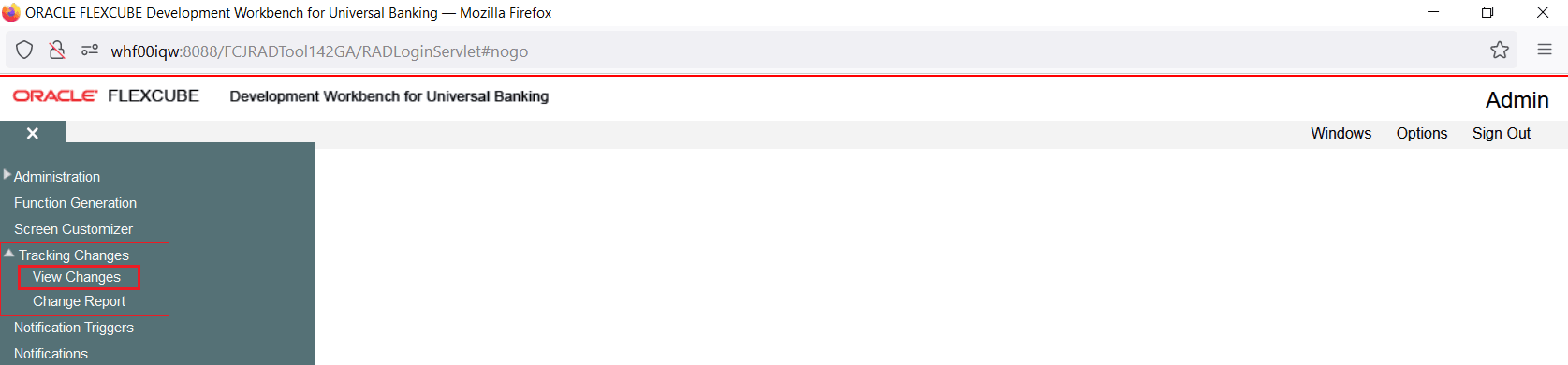

    Figure 1-1 Development Workbench of Universal Banking_Tracking Changes


    Description of Figure 1-1 follows
    Description of "Figure 1-1 Development Workbench of Universal Banking_Tracking Changes"

  2. Under Tracking Changes, click View Changes.
    The View Changes screen displays.

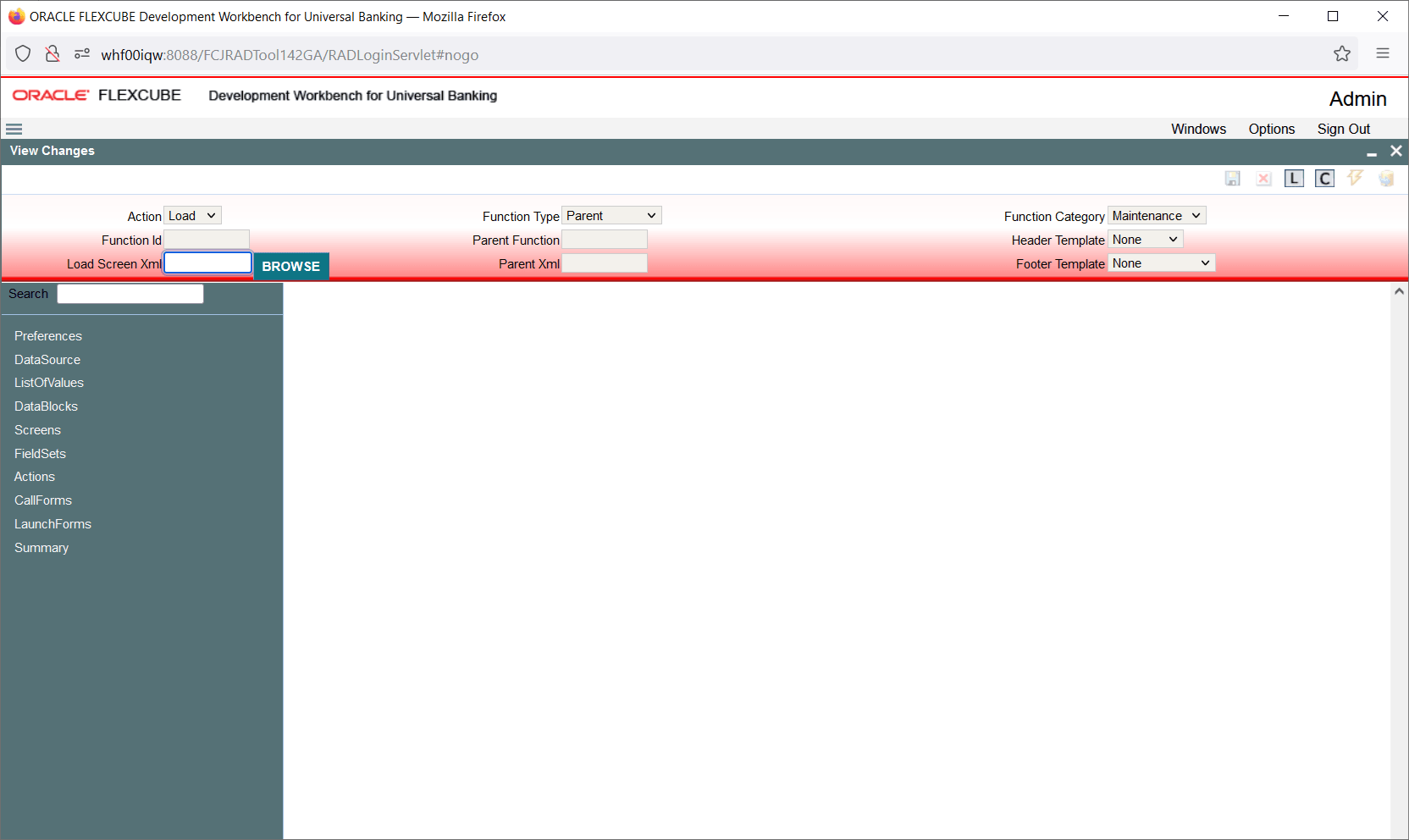

    Figure 1-2 Tracking Changes_View Changes


    Description of Figure 1-2 follows
    Description of "Figure 1-2 Tracking Changes_View Changes"

  3. Click the BROWSE button in the Load Screen Xml field to load and view the changes in the radxml across releases and release types.
    The Upload and Choose File to Upload windows displays.

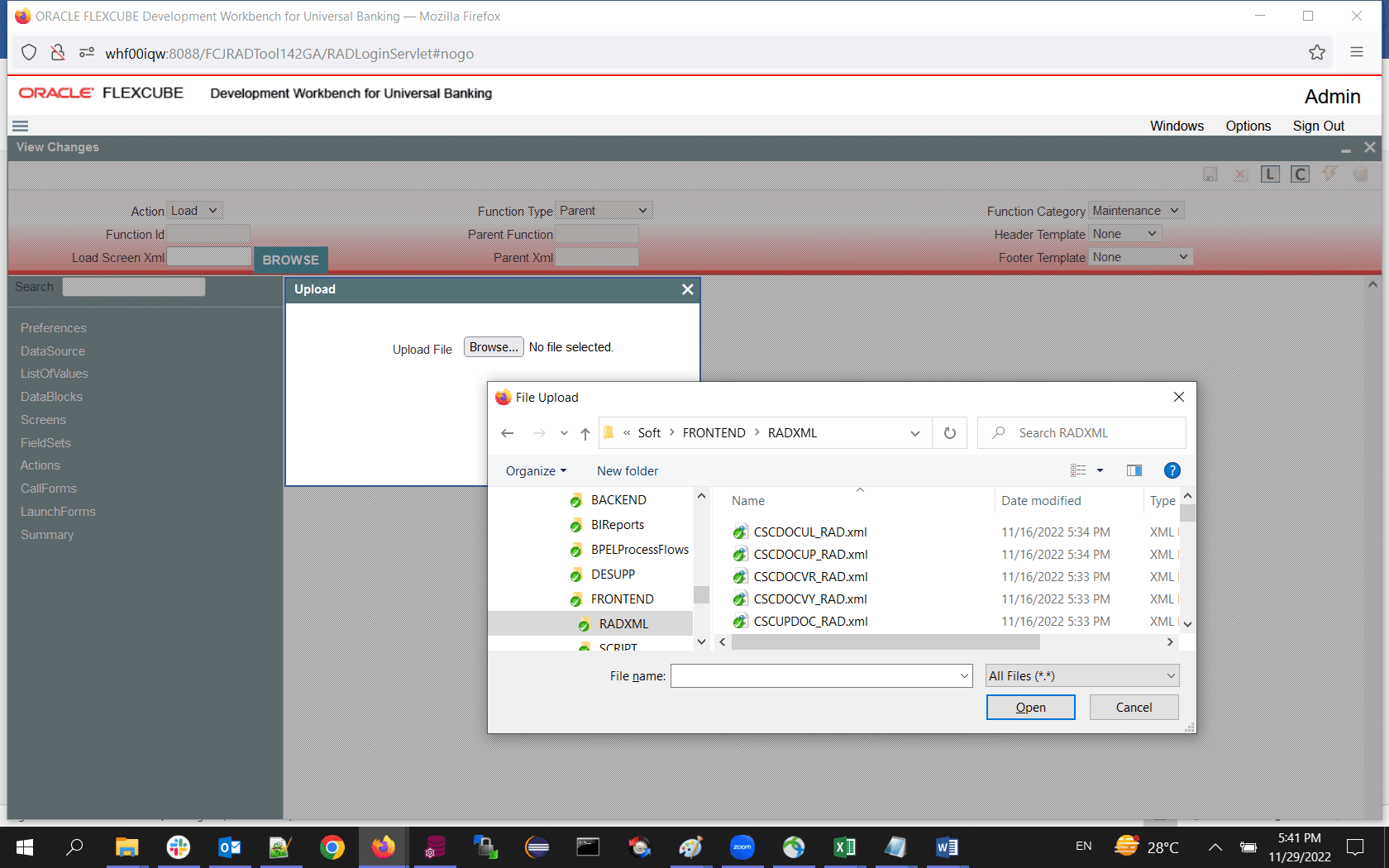

    Figure 1-3 View Changes_Load Screen Xml_Upload


    Description of Figure 1-3 follows
    Description of "Figure 1-3 View Changes_Load Screen Xml_Upload"

    Note:

    Workbench allows to view the changes done as part of Child or Cluster or Custom Release. Upon loading the Cluster or Custom or Child RAD xml, it shows the modifications done as part of Cluster or Custom or Child.
  4. Load the radxml from the folder at Choose File to Upload window and click the Open button.
    View Changes window will pop up and will notify the details of the function id like Function Type, Release Type and Release Code. It also notifies that changes done in the radxml as part of Cluster Release will be highlighted.

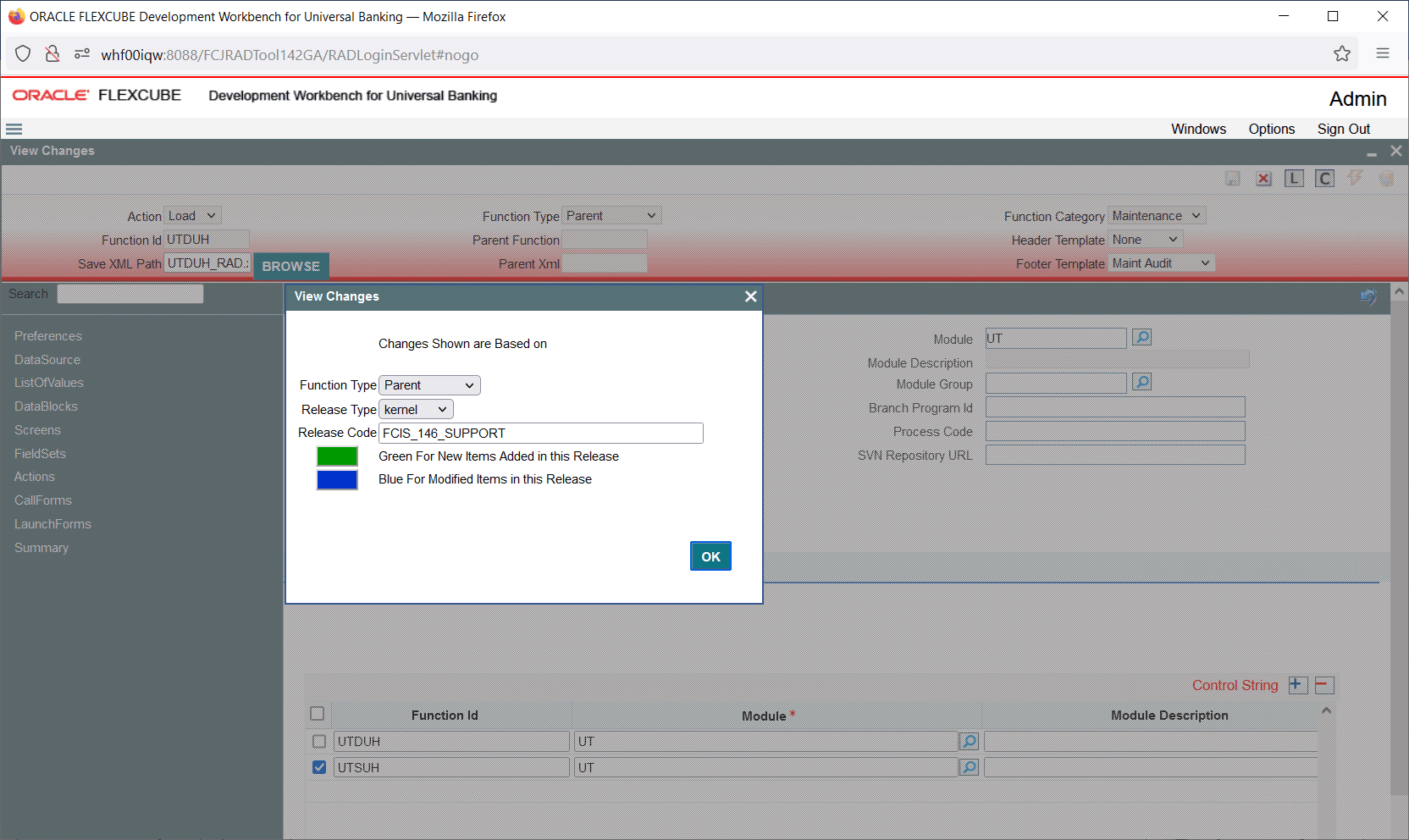

    Figure 1-4 View Changes Pop-up Window


    Description of Figure 1-4 follows
    Description of "Figure 1-4 View Changes Pop-up Window"

    View Changes pop-up window displays.
  5. Load the Function Id.
    This will show the changes in the colors of blue and green. Blue indicates modified and green indicates new in this function id.
    The Workbench will show the View Changes screen in the below format of blue and green accordingly.

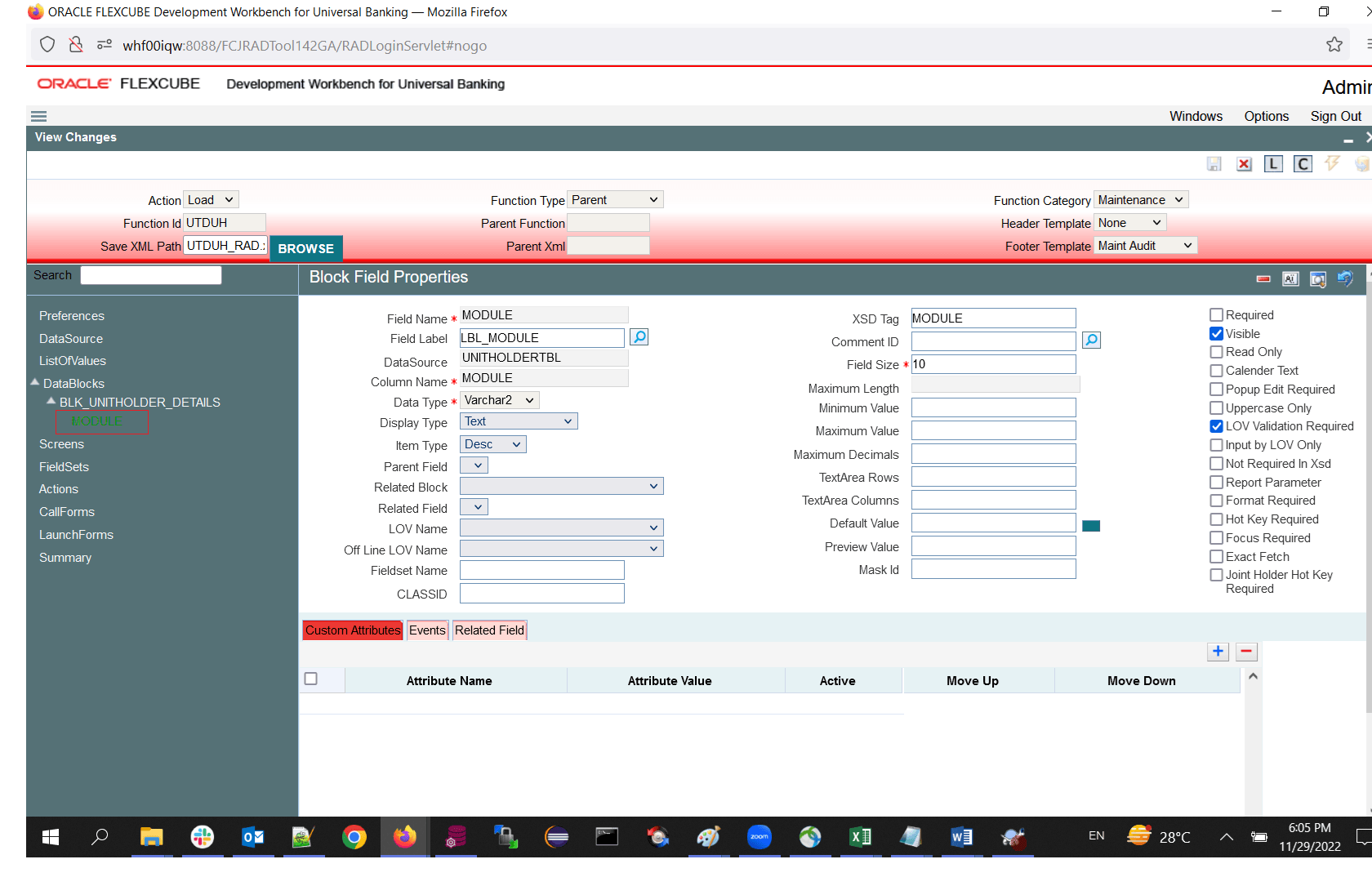

    Figure 1-5 View Changes_Block Field Properties


    Description of Figure 1-5 follows
    Description of "Figure 1-5 View Changes_Block Field Properties"
