1.2.2 Message Media Control

The systematic instructions to message media control is explained in this topic.

  1. On Home screen, type UTDMCS in the text box, and click Next.

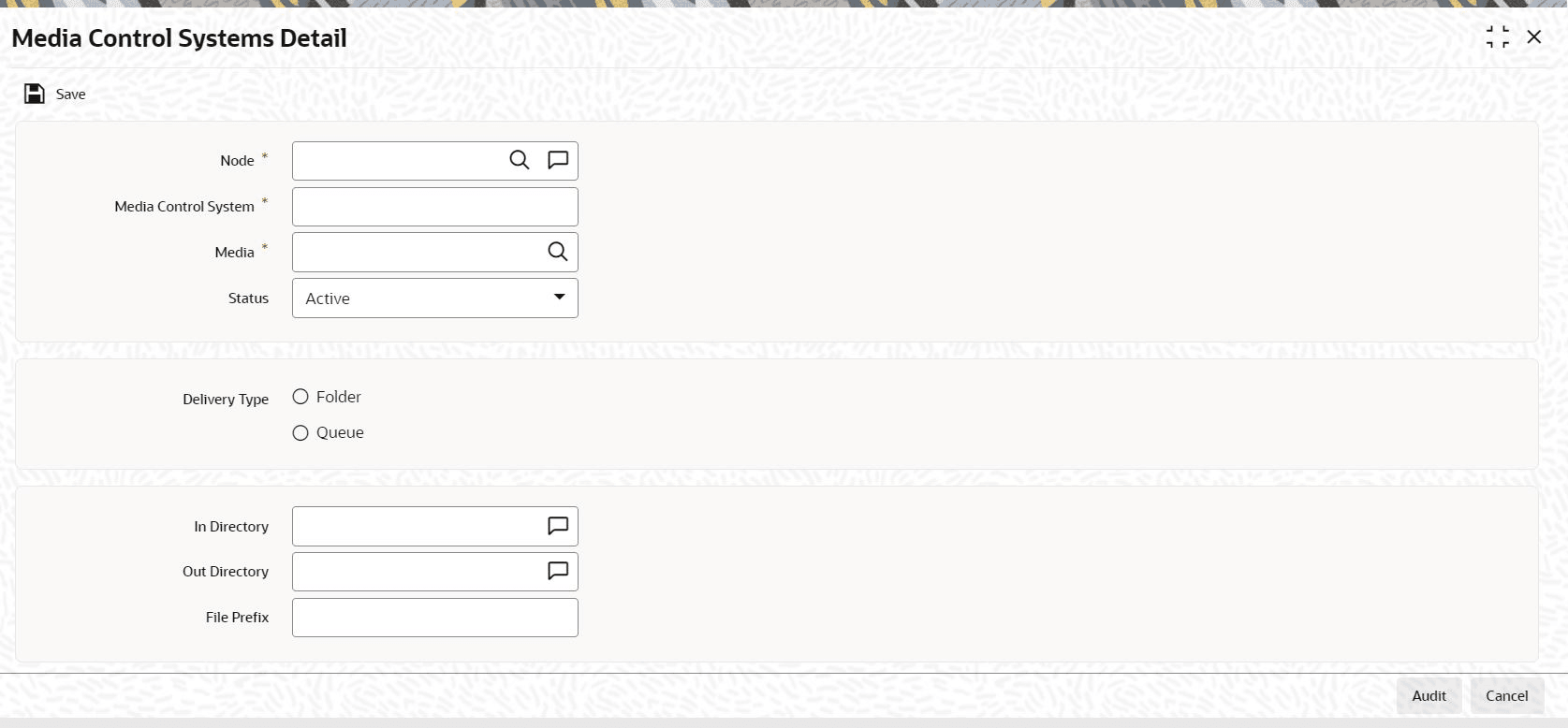

    The Media Control Systems Detail screen is displayed.

    Figure 1-2 Media Control Systems Detail


    Description of Figure 1-2 follows
    Description of "Figure 1-2 Media Control Systems Detail"

  2. On the Message Control Systems screen, specify the fields.

    Table 1-2 Message Control Systems - Field Description

    Field Description
    Node

    Alphanumeric; 420 Characters; Mandatory

    Specify the DB instance name.
    Media Control System

    Alphanumeric; 60 Characters; Mandatory

    Specify the media control systems details.
    Media

    Alphanumeric; 60 Characters; Mandatory

    Select the Media from the drop-down list. The valid media maintained in the system are displayed in the drop-down list.
    Status

    Optional

    Select the status. The available options are
    • Active
    • Passive
    Delivery Type

    Optional

    Indicate the mode of the delivery. The available options are:
    • Folder
    • Queue
    In Directory

    Alphanumeric; 512 Characters; Optional

    Specify the directory in which the message files are to be placed by the external system (only for EMS_IN if delivery type is Folder .

    Out Directory

    Alphanumeric; 512 Characters; Optional

    Specify the directory in which the message files are sent to external system (only for EMS_OUT.)

    File Prefix

    Alphanumeric; 1 Character; Optional

    Specify the file prefix details.
    Unix In-Directory

    Alphanumeric; 512 Characters; Optional

    Specify the directory in which the message files are to be placed by external system.
    Unix Out Directory

    Alphanumeric; 512 Characters; Optional

    Specify the directory in which the message files are sends to external system.
    In Queue

    Alphanumeric; 1020 Characters; Optional

    Specify the queue in which the message files are to be placed by the external system (only for EMS_IN if delivery type is Folder . If delivery type is Queue.

    Out Queue

    Alphanumeric; 1020 Characters; Optional

    Specify the queue in which the message files are sent to external system (only for EMS_OUT).

    Message Queue

    Optional

    Select the queuing software being used in bank as follows:
    • Microsoft Message Queue
    • WebSphere Messaging
    Unix Swift Server

    Optional

    Check this box for Unix swift server.
