1.1 FCIS Application Full Deployment

This topic describes the steps to deploy Oracle FLEXCUBE Investor Servicing application into WebLogic server in full deployment mode.

  1. Start Oracle FLEXCUBE Universal Installer.
    The Oracle FLEXCUBE Universal Installer is displayed.

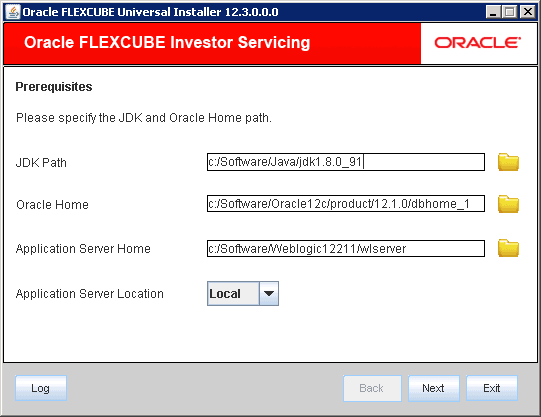

    Figure 1-1 Oracle FLEXCUBE Universal Installer


    Description of Figure 1-1 follows
    Description of "Figure 1-1 Oracle FLEXCUBE Universal Installer"

  2. On Oracle FLEXCUBE Universal Installer screen, enter the following details.
    Refer to the table for JDK and Oracle Home path.

    Table 1-1 JDK and Oracle Home path

    Field Description
    JDK Path

    Provide Home folder path of JDK1.8.
    Oracle Home

    Provide home folder path of Oracle Client or Database.
    Application Server Home

    Provide home folder path of Application Server.
    Application Server Location

    Select location of the application server either local or remote.
  3. Click Next to select the option for installation.
  4. Select Oracle FLEXCUBE Investor Servicing from the lists of Oracle FLEXCUBE options.
    The available options for installation are displayed.

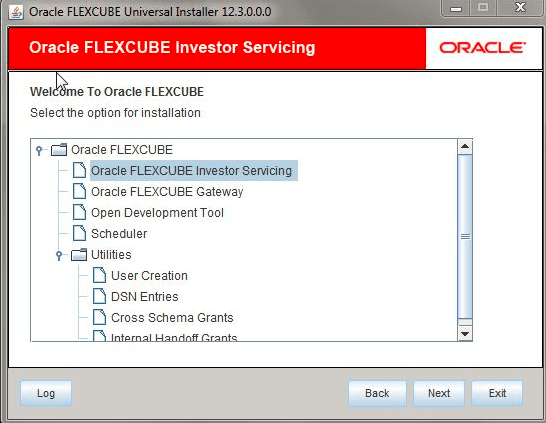

    Figure 1-2 Option for Installation


    Description of Figure 1-2 follows
    Description of "Figure 1-2 Option for Installation"

  5. Click Next to choose Oracle FLEXCUBE component for installation.
  6. Select Deploy Application.
    The available options Property File, Database, Build Application, and Deploy Application are displayed.

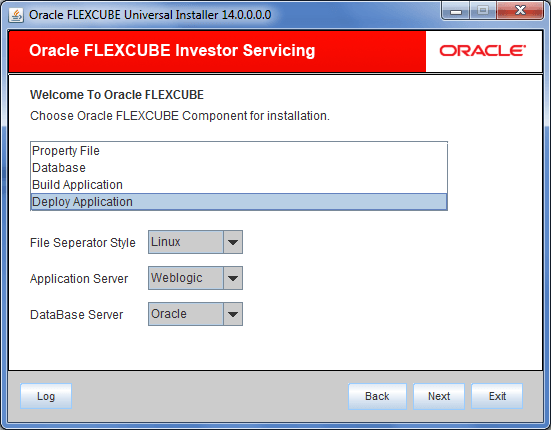

    Figure 1-3 Oracle FLEXCUBE Component for Installation in Full Deployment


    Description of Figure 1-3 follows
    Description of "Figure 1-3 Oracle FLEXCUBE Component for Installation in Full Deployment"

  7. Select the appropriate operating system from the File Separator Style drop-down.
  8. Choose Weblogic from the Application Server drop-down.
  9. Select Oracle from the DataBase Server drop-down and click Next.
  10. Specify Server details to connect to the server and click Next.
    Refer to the table for server details.

    Table 1-2 Server details

    Field Description
    Admin IP

    Provide host address of Admin server.
    Admin Port

    Provide port number of Weblogic server.
    Admin UserName

    Provide the appropriate Admin Username of the Weblogic Application server.
    Admin Password Provide the appropriate Admin Password of the Weblogic Application server.
    Type of Deployment

    Choose Full Deployment.

    The following screen is displayed.

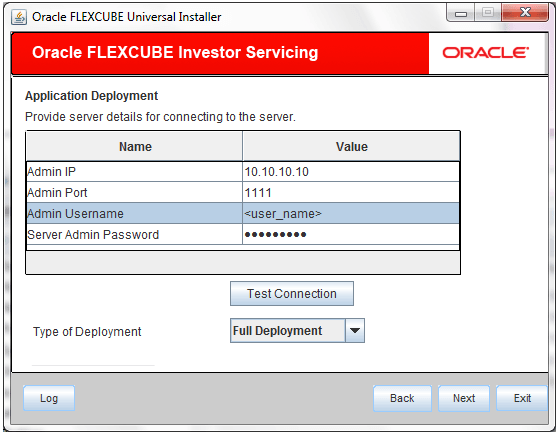

    Figure 1-4 Server Details for Full Deployment


    Description of Figure 1-4 follows
    Description of "Figure 1-4 Server Details for Full Deployment"

  11. Click Test Connection to test the connection with the Application server.
    On successful connection, the following message is displayed.

    Figure 1-5 Information Message on Successful Connection


    Description of Figure 1-5 follows
    Description of "Figure 1-5 Information Message on Successful Connection"

  12. Click Ok and click Next in the installer.
    The following screen is displayed.

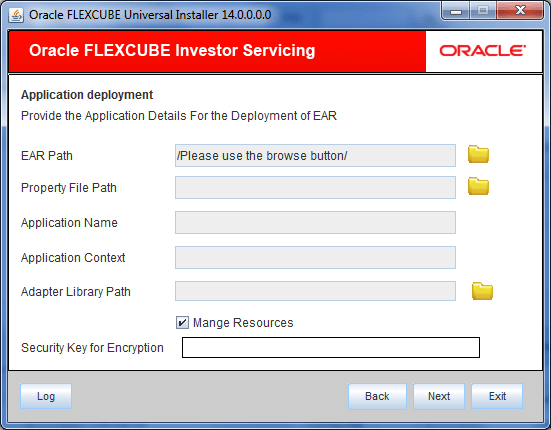

    Figure 1-6 Application Details for Full Deployment


    Description of Figure 1-6 follows
    Description of "Figure 1-6 Application Details for Full Deployment"

  13. Specify Application details to deploy the EAR.
    Refer to the table for Application details.

    Table 1-3 Application details

    Field Description
    EAR Path

    Select the application EAR to be deployed using the browse button.

    Note: The Application EAR path cannot be copied and pasted on to the text box, thereby demanding the use of the Browse button to select the EAR.

    Property File Path

    Select the appropriate path to the external properties file.

    If the properties file is internal to the application EAR, it would be fetched on selection of the EAR and will be in a non-editable state.
    Application Name

    Selection of the EAR would fetch the Application Name and it will be in a non-editable state.
    Application Context

    Selection of the EAR would fetch the Application Context and it will be in a non-editable state.
    Adapter Library Path

    Selection of the EAR would fetch the Application Library Path and it will be in a non-editable state.
    Manage Resources

    Select this box if resources are to be created along with deployment.
  14. Click Next. If Manage Resources is not checked, you can continue to provide Server Environment details for deployment.
  15. Select Manage Resources box if resources are to be created along with deployment.
    The screen provides a read only list of resources.

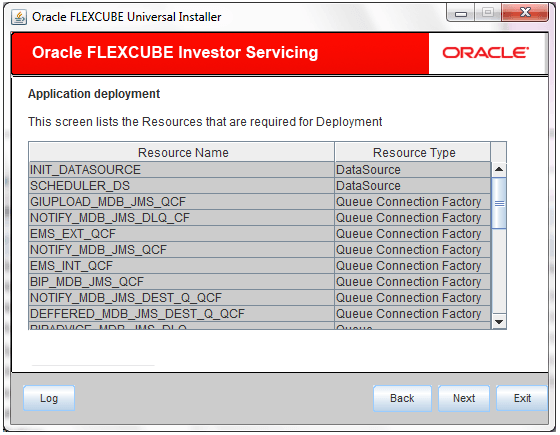

    Figure 1-7 Resources lists


    Description of Figure 1-7 follows
    Description of "Figure 1-7 Resources lists"

  16. Specify the resource details that are required for deployment.
    Refer to the table for resource details.

    Table 1-4 Resource details

    Field Description
    Resource ID

    Specify Resource ID. Also, you can select the resource from a list of data sources maintained and update the details.

    DataSource Driver

    Specify the JDBC driver URL with which the connection is to be established.

    Ex: oracle.jdbc.OracleDriver for Non-XA datasources
    DataSource Type

    Specify the type of datasource that is to be created, XA or Non-XA.
    Schema Username

    Specify the username of the schema to which the connection is to be established.
    Schema Password

    Specify the password of the schema.
    IP Address

    Specify the host address of the schema.
    Port Number

    Specify the port number of schema.
    Service Name

    Specify the service name of schema.
    Initial Capacity

    It is the number of physical connections that can be created when creating the connection pool in the data source
    Maximum Capacity The maximum number of physical connections that this connection pool can contain.
    Capacity Increment The increment by which this JDBC connection pool's capacity is expanded.
    Shrink Frequency The number of seconds to wait before shrinking a connection pool that has incrementally increased to meet demand.
    Connection Reserve Timeout The number of seconds after which a call to reserve a connection from the connection pool will timeout.
  17. Click Test Connection to establish connection with required details provided in the table against corresponding value of Resource ID.
  18. Click Save Changes to save the values provided in the table against corresponding value of Resource ID.
  19. Select Modify JDBC Url to modify the provided JDBC url.
    If Modify JDBC Url is selected, the following screen is displayed.

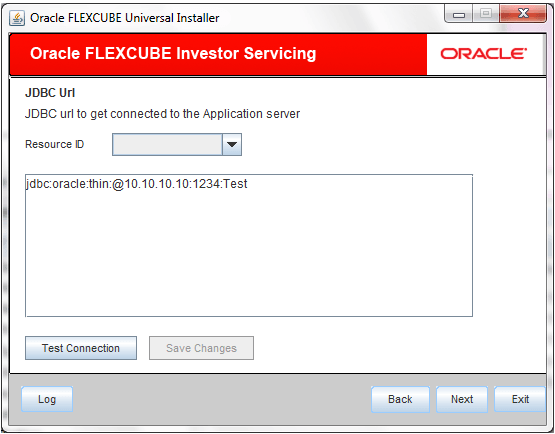

    Figure 1-8 JDBC Url


    Description of Figure 1-8 follows
    Description of "Figure 1-8 JDBC Url"

  20. Specify Resource ID and click Test Connection to check the connection using the changed Url. If the Url changed is correct, then the successful connection will be made. Click Save Changes to save the changed JDBC Url.

    Resource ID: It provides the list of all the datasources created. Select the data source for which the JDBC Url needs to be modified.

    Note: The JDBC Url generated from the previous screen will be displayed here. If the user wants to change the JDBC Url, it can be changed in the current screen.

  21. Click Next after the resource details are updated.
    The following screen is displayed.

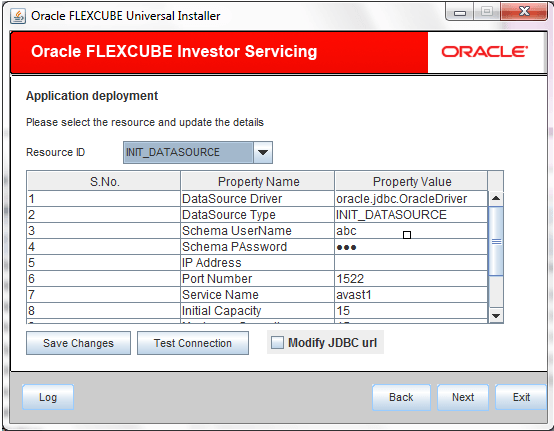

    Figure 1-9 Resource Details Update


    Description of Figure 1-9 follows
    Description of "Figure 1-9 Resource Details Update"

  22. Specify Server Environment details for deployment.
    The Domain Name shows the weblogic domain name.
  23. On Server Environment details screen, click Get Details button.
    The list of available servers are displayed. Atleast, one server should be selected to proceed.

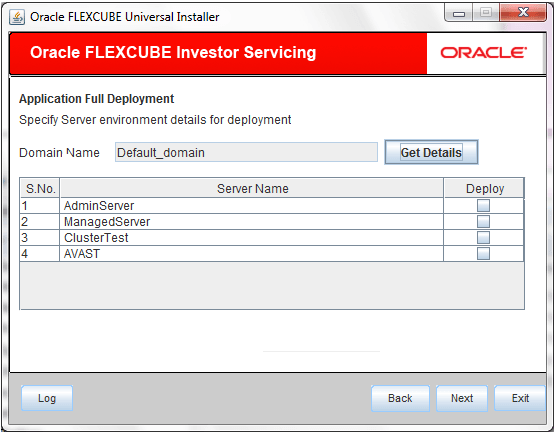

    Figure 1-10 Server Environment Details for Full Deployment


    Description of Figure 1-10 follows
    Description of "Figure 1-10 Server Environment Details for Full Deployment"

  24. Click Next after the server environment details are specified.
    The following screen is displayed.

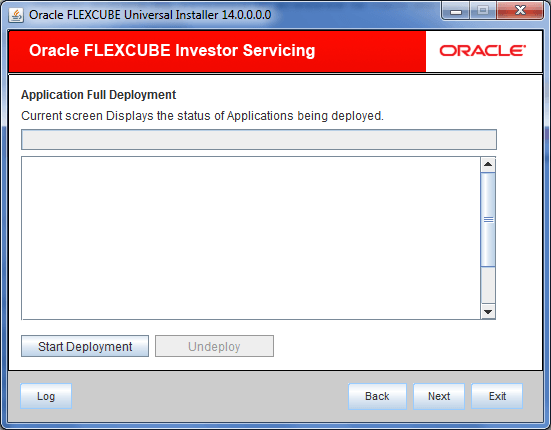

    Figure 1-11 Application Deployment Status for Full Deployment


    Description of Figure 1-11 follows
    Description of "Figure 1-11 Application Deployment Status for Full Deployment"

  25. Click Start Deployment to start the process of application deployment.
    The following screen displays the status of Applications being deployed.

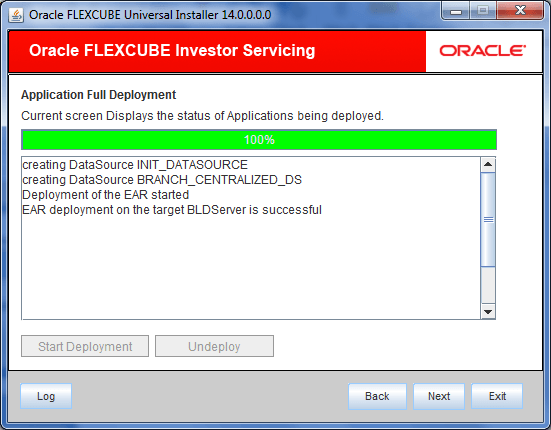

    Figure 1-12 Start Application Full Deployment


    Description of Figure 1-12 follows
    Description of "Figure 1-12 Start Application Full Deployment"

  26. You can view the information message on successful deployment and click Ok in the Message window.
    The following Message window is displayed.

    Figure 1-13 EAR Deployment Message


    Description of Figure 1-13 follows
    Description of "Figure 1-13 EAR Deployment Message"

  27. Click Undeploy button for undeploying the partially deployed EAR from the server.
    If the deployment is not successful, the Undeploy button will be enabled in the Application Deployment status screen.
