2.8 Process Parameter Setup Detail

This topic provides the systematic instructions to validate SWIFT messages.

The XML format of SWIFT Messages can be validated. To maintain validation parameters for the XML format, use the Parameter Setup Detail screen.

1. On Home screen, type UTDPARAM in the text box, and click Next.
   The Parameter Setup Detail screen is displayed.

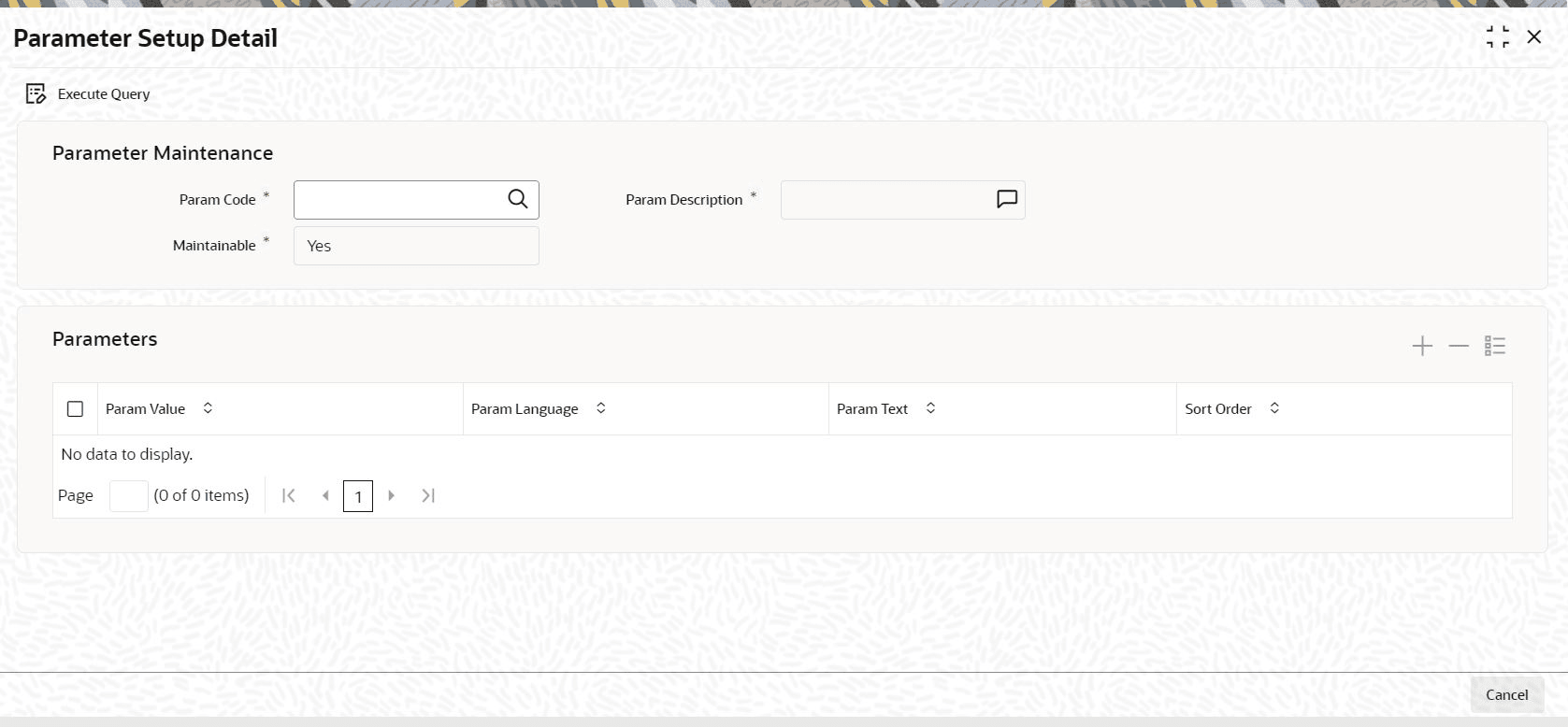

   Figure 2-13 Parameter Setup Detail





   Description of "Figure 2-13 Parameter Setup Detail"



2. When you open the screen, choose the language for which you want to view the maintained codes in the Language field.
3. Select the Parameter Code SWIFTFORMAT and click Add icon to add the parameters.
4. On Parameter Setup Detail screen, click Enter Query to enter the details.
   For more information on fields, refer to the field description table.

   Table 2-10 Parameter Setup Detail - Field Description

   Field	Description	Attributes
   Parameter Maintenance	The section displays the following fields.	NA
   Param Code	Specify the param code. Alternatively, you can select Param code from the option list.	Alphanumeric; 25 Characters; Mandatory
   Param Description	The system displays the description for the selected param code.	Display
   Maintainable	Select if the record is maintainable or not from the drop-down list. The list displays the following values: Yes No	Optional

5. Click Execute Query button after specifying the necessary details.
   The system displays the following values:

   • Param Value
   • Param Language
   • Param Text
   • Sort Order
