1.6.7.1 Clause Wizard Button

This topic provides the systematic instructions to process the dashboard condition.

1. On Dashboard Maintenance screen, click the Clause Wizard button.
   The Dashboard Condition screen is displayed.

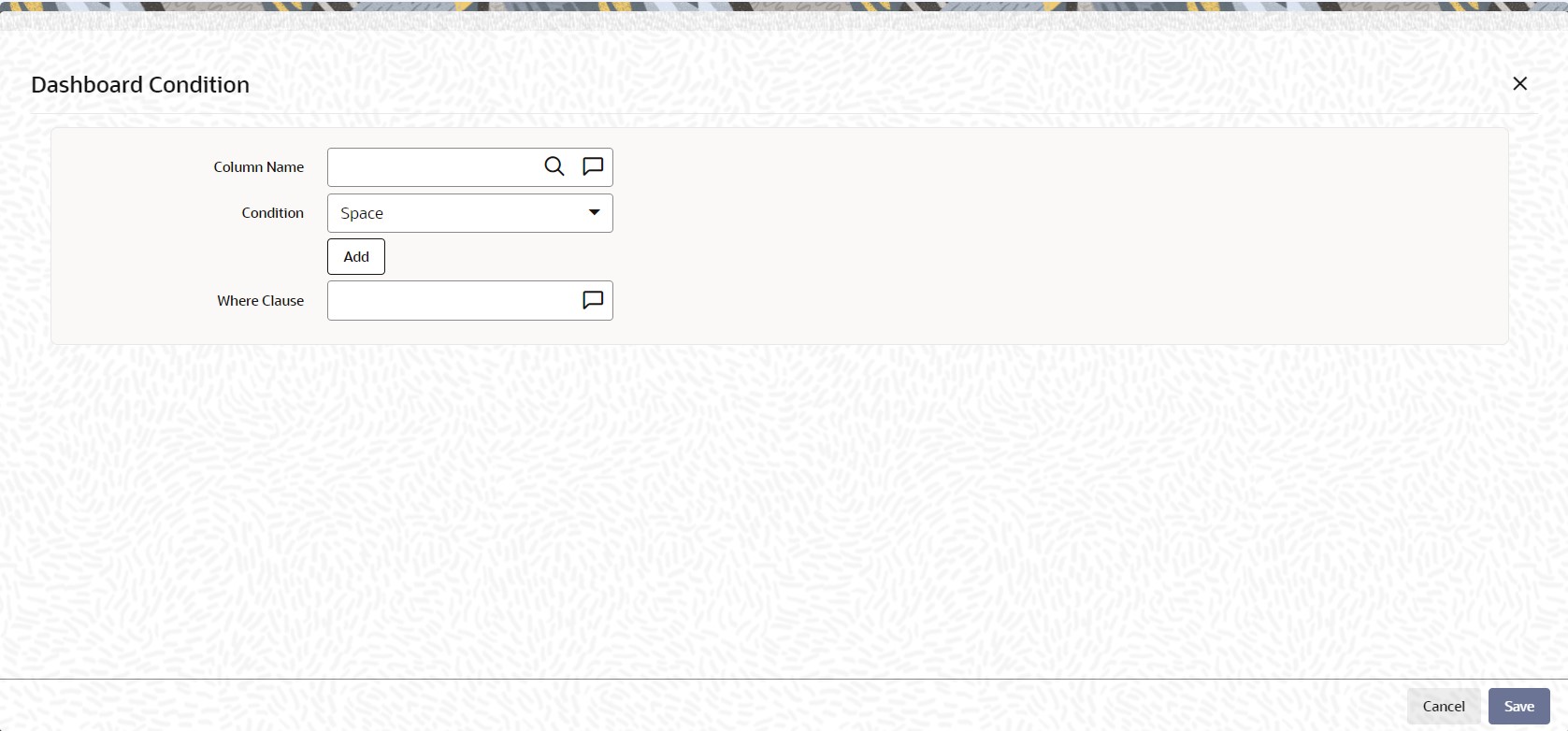

   Figure 1-11 Dashboard Condition





   Description of "Figure 1-11 Dashboard Condition"



2. On Dashboard Condition screen, specify the fields.
   For more information on fields, refer to the field description table.

   Table 1-13 Dashboard Condition - Field Description

   Field	Field Description
   Column Name	Alphanumeric; 35 Characters; Optional Specify the column name. Alternatively, you can select column name from the option list. The list displays all valid column names maintained in the system.
   Condition	Optional Select the conditions from the drop-down list.
   Where Clause	Alphanumeric; 35 Characters; Optional Specify the where clause.
   Show In Dashboard	Optional Check this box to show in dashboard. The system will default the value based on the value set at User settings screen. If you uncheck this box, then the value will be applied upon change in modules.
