1.8 Process Hot Keys Maintenance

This topic provides the systematic instructions to set the most used screens in hot keys and launch the same using the hot key combination.

By using the hot keys, you can avoid typing function IDs or using the menu path. You can use hot keys with the key combinations from Ctrl+1 to Ctrl+9. In the predefined key combination, you can save the required function IDs.

Based on the role/ function mapped the function ID will be listed in the screen. When you click any of the function IDs saved for particular key stroke from fast track the corresponding screen will be launched.

Note:

Maximum number of Hot keys that can be entered is 9. Same key combination cannot be used for different function id in different modules.

1. On Home screen, type SMDHOTKY/ UTDHOTKY in the text box, and click Next.
   The Hot Keys Maintenance screen is displayed.

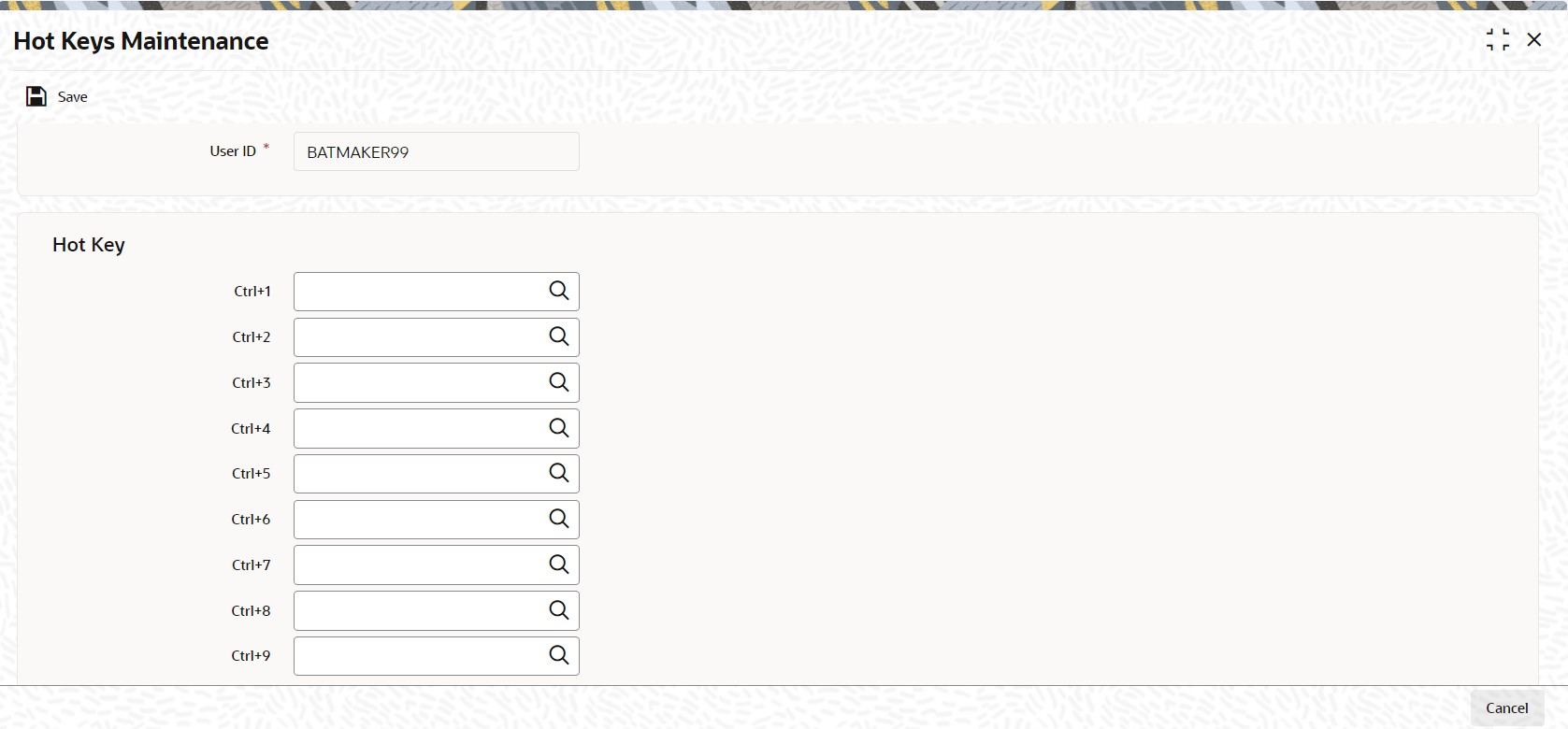

   Figure 1-13 Hot Keys Maintenance





   Description of "Figure 1-13 Hot Keys Maintenance"



2. On Hot Keys Maintenance screen, click New to enter the details.
   For more information on fields, refer to the field description table.

   Table 1-14 Hot Keys Maintenance - Field Description

   Field	Description
   User ID	Display The system displays the logged in user ID.
   Hot Key	The section displays the following fields.
   Ctr+1	Alphanumeric; 8 Characters; Optional Specify the valid function ID for the logged in user. Alternatively, you can select the valid function IDs from the option list. The list displays all valid function IDs maintained in the system.
   Ctr+2	Alphanumeric; 8 Characters; Optional Specify the valid function ID for the logged in user. Alternatively, you can select the valid function IDs from the option list. The list displays all valid function IDs maintained in the system.
   Ctr+3	Alphanumeric; 8 Characters; Optional Specify the valid function ID for the logged in user. Alternatively, you can select the valid function IDs from the option list. The list displays all valid function IDs maintained in the system.
   Ctr+4	Alphanumeric; 8 Characters; Optional Specify the valid function ID for the logged in user. Alternatively, you can select the valid function IDs from the option list. The list displays all valid function IDs maintained in the system.
   Ctr+5	Alphanumeric; 8 Characters; Optional Specify the valid function ID for the logged in user. Alternatively, you can select the valid function IDs from the option list. The list displays all valid function IDs maintained in the system.
   Ctr+6	Alphanumeric; 8 Characters; Optional Specify the valid function ID for the logged in user. Alternatively, you can select the valid function IDs from the option list. The list displays all valid function IDs maintained in the system.
   Ctr+7	Alphanumeric; 8 Characters; Optional Specify the valid function ID for the logged in user. Alternatively, you can select the valid function IDs from the option list. The list displays all valid function IDs maintained in the system.
   Ctr+8	Alphanumeric; 8 Characters; Optional Specify the valid function ID for the logged in user. Alternatively, you can select the valid function IDs from the option list. The list displays all valid function IDs maintained in the system.
   Ctr+9	Alphanumeric; 8 Characters; Optional Specify the valid function ID for the logged in user. Alternatively, you can select the valid function IDs from the option list. The list displays all valid function IDs maintained in the system.
