1.13 Process Printer Maintenance

This topic provides the systematic instructions to process printer maintenance.

  1. On Home screen, type SMDPRTMN in the text box, and click Next.
    The Printer Maintenance screen is displayed.

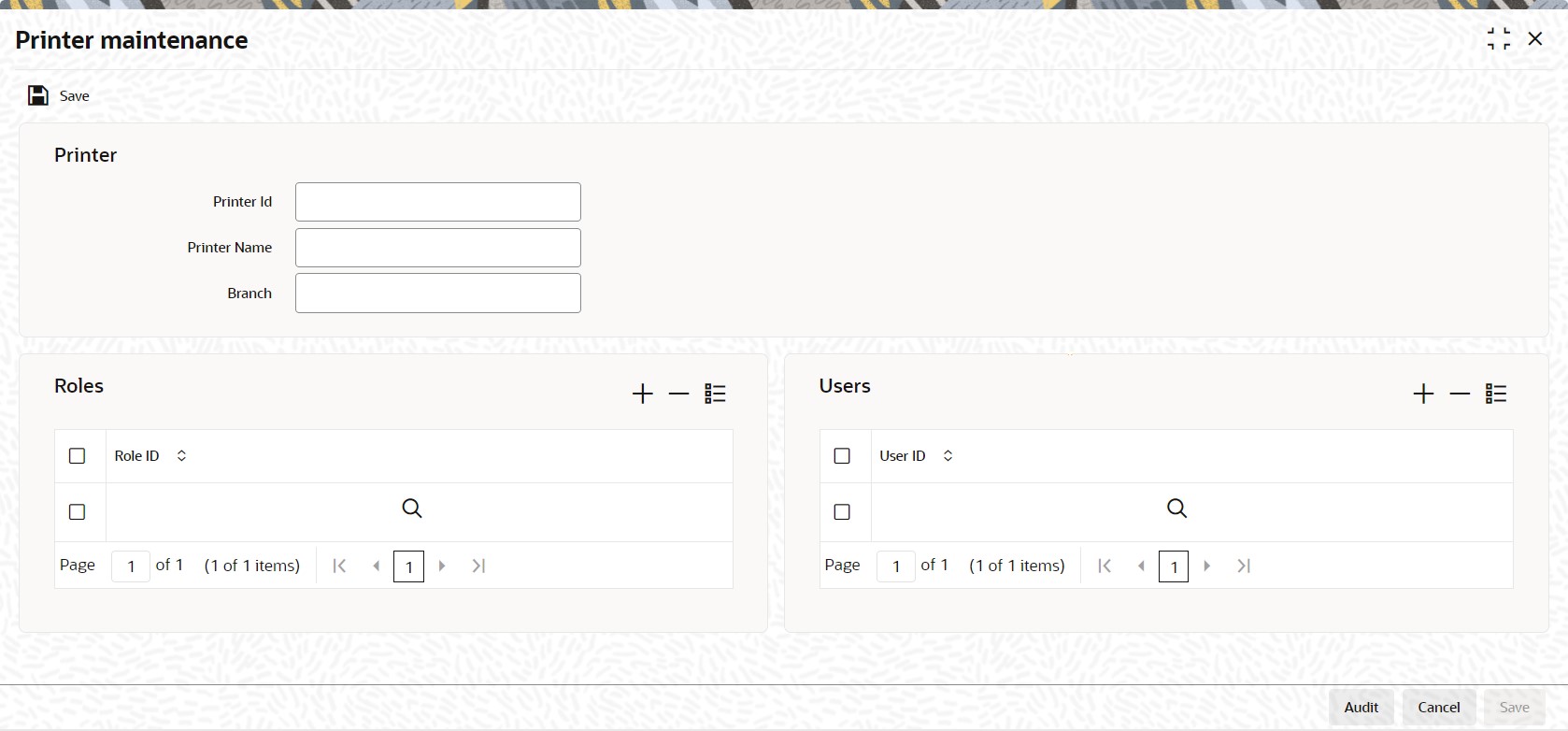

    Figure 1-19 Printer Maintenance


    Description of Figure 1-19 follows
    Description of "Figure 1-19 Printer Maintenance"

  2. On Printer Maintenance screen, click New to enter the details.
    For more information on fields, refer to the field description table.

    Table 1-18 Printer Maintenance - Field Description

    Field Description
    Printer

    The section displays the following fields.
    Printer ID

    Alphanumeric; 2 Characters; Optional

    Specify the printer ID.
    Printer Name

    Alphanumeric; 105 Characters; Optional

    Specify the printer name.
    Branch

    Alphanumeric; 3 Characters; Optional

    Specify the branch code.
    Roles

    The section displays the following fields.
    Role ID

    Alphanumeric; 15 Characters; Optional

    Specify the role ID. Alternatively, you can select role ID from the option list. The list displays all valid role ID maintained in the system.
    Users

    The section displays the following fields.
    User ID

    Alphanumeric; 12 Characters; Optional

    Specify the user ID. Alternatively, you can select user ID from the option list. The list displays all valid user ID maintained in the system.

Parent topic: Ensure Security for Fund Manager
