4.43 Process Block Allowed Transaction Ref Types

This topic provides the instructions to configure the Ref types pertaining to IPO subscription and subscription transaction types for amount block reference types in FCIS system.

1. On Home screen, type UTDREFMA in the text box, and click Next.
   The Block Allowed Transaction Ref Types screen is displayed.

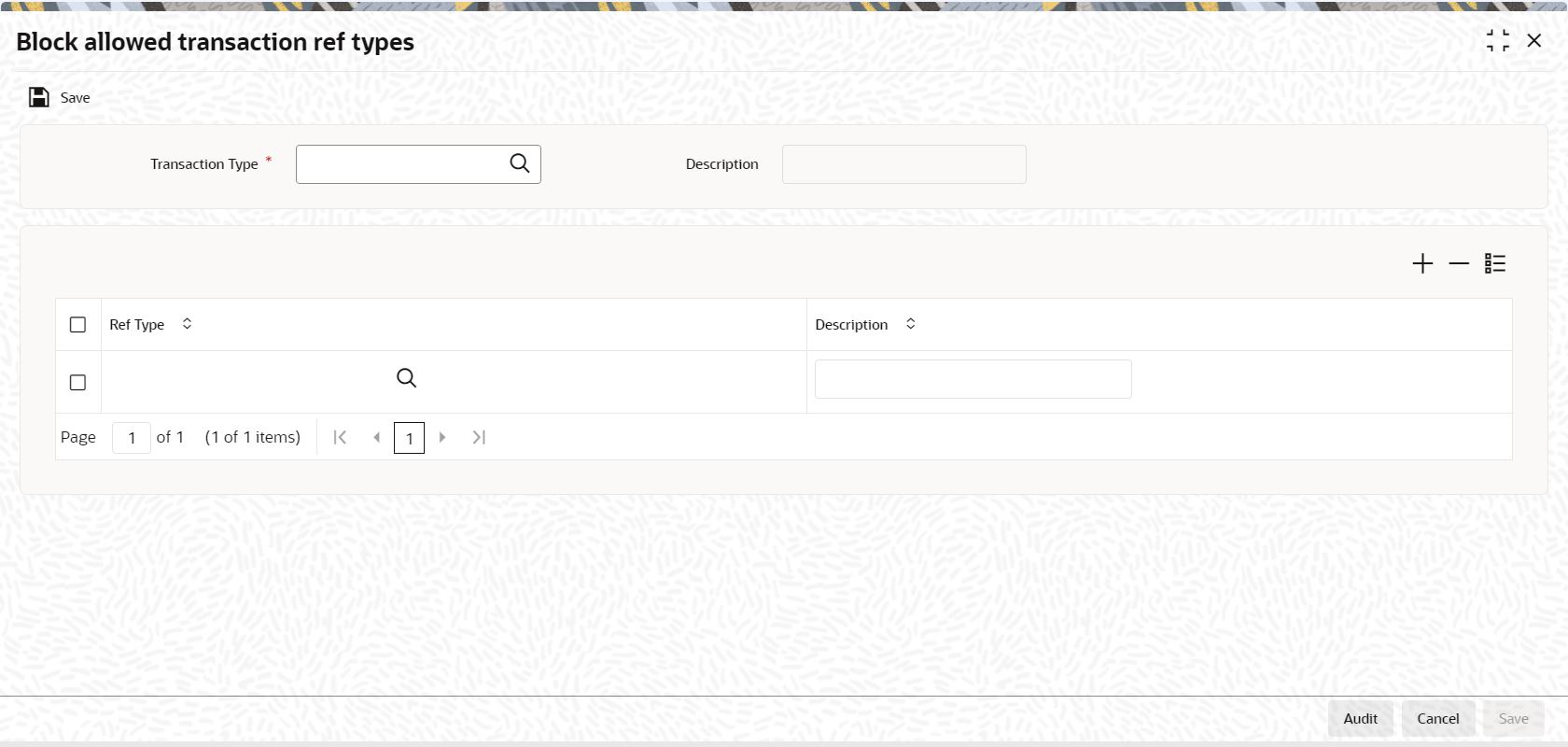

   Figure 4-40 Block Allowed Transaction Ref Types





   Description of "Figure 4-40 Block Allowed Transaction Ref Types"



2. On Block Allowed Transaction Ref Types screen, specify the fields.
   For more information on fields, refer to field information table.

   Table 4-60 Block Allowed Transaction Ref Types

   Field	Description
   Transaction Type	Alphanumeric; 2 Characters; Mandatory Select the transaction type for which system is sending block request. Alternatively, you can select type of transaction from the option list. The list displays all valid transaction type maintained in the system.
   Description	Display The system displays the description for the selected transaction type.
   Ref Type	Alphanumeric; 2 Characters; Mandatory Select the ref type. Alternatively, you can select ref type from the option list. The list displays all valid transaction type maintained in the system.
   Description	Display The system displays the description for the selected ref type.
