7.4 Create Subdeployment

This topic explains the systematic instructions to create the subdeployment in the Weblogic application server.

Follow the steps given below to create the subdeployments:

1. Start the Administration Console of WebLogic Application server.
   You can start the Application by opening the Oracle Weblogic Remote Console application post installing the application from the link https://github.com/oracle/weblogic-remote-console/releases.
   The WebLogic Remote Console screen is displayed.
2. Click Providers and select Add Admin server Connection Provider.
   The user must enter the required URL, username, and password to establish a connection to the Admin Console.
   The Edit Admin Server Connection Provider popup window is displayed.
3. Click Edit Tree icon after logging into the WebLogic Console.
4. Go to Services and then select Sub Deployments within JMS Modules.
   The Sub Deployments screen is displayed.

   Figure 7-36 Sub Deployments





   Description of "Figure 7-36 Sub Deployments"



5. Select the JMS module created and click the Sub Deployments.
   The following screen is displayed.

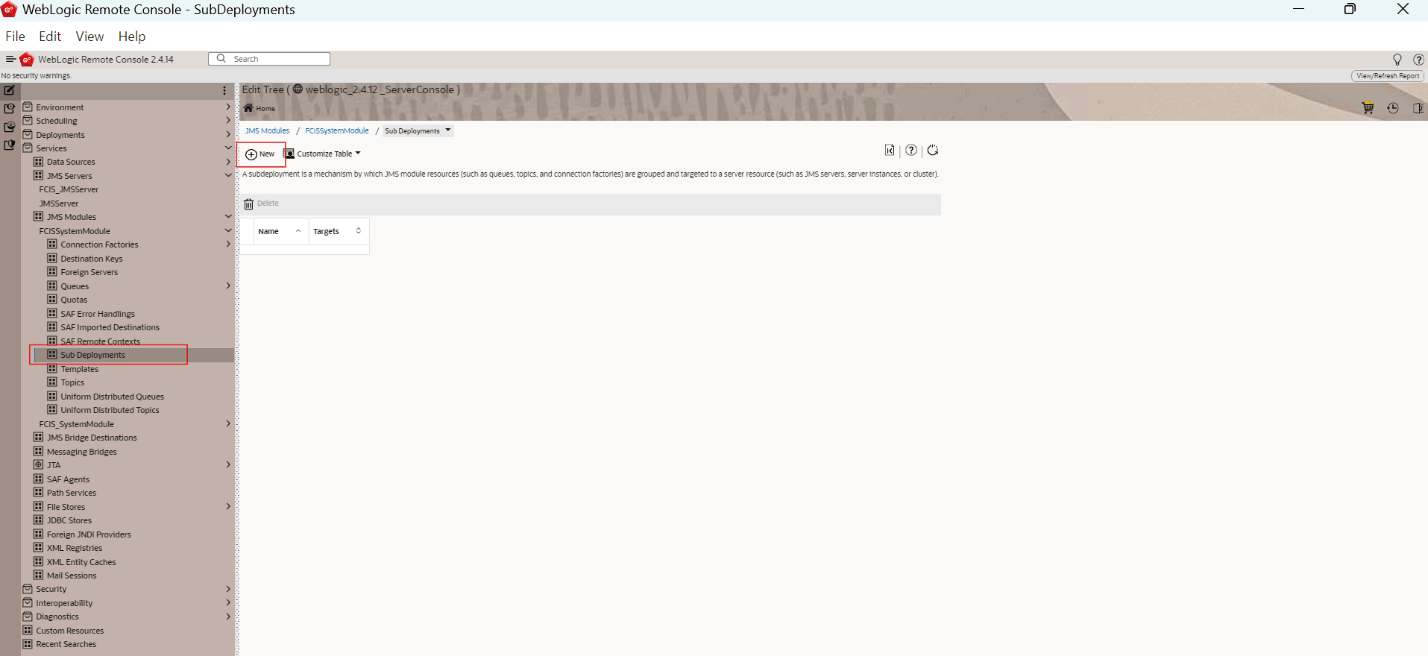

   Figure 7-37 Create a New Sub Deployment





   Description of "Figure 7-37 Create a New Sub Deployment"



6. Click New to create a new Sub Deployment.
   The following screen is displayed.

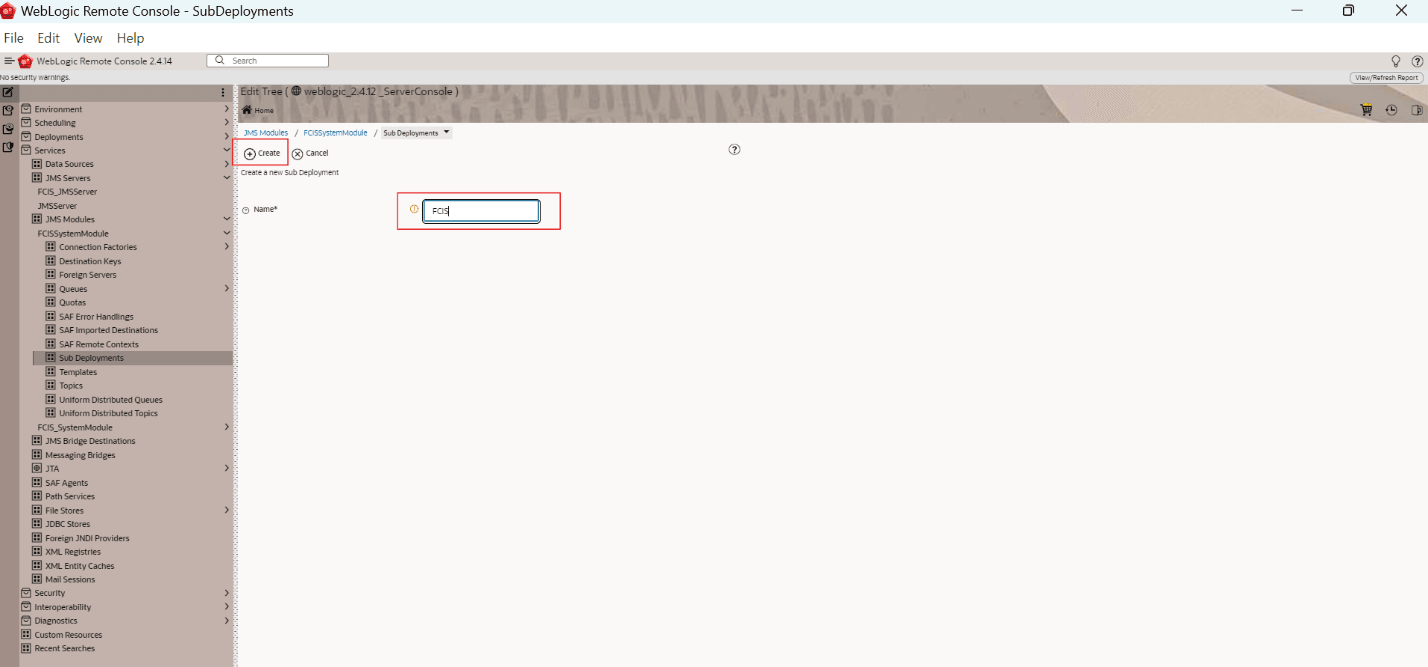

   Figure 7-38 Create a New Sub Deployment





   Description of "Figure 7-38 Create a New Sub Deployment"



7. Specify the Subdeployment Name as FCIS.
8. Click Create.
   The following screen is displayed.

   Figure 7-39 Sub Deployments_Create





   Description of "Figure 7-39 Sub Deployments_Create"



9. Select the JMS Server created.
10. Click Save.
    The following screen is displayed.

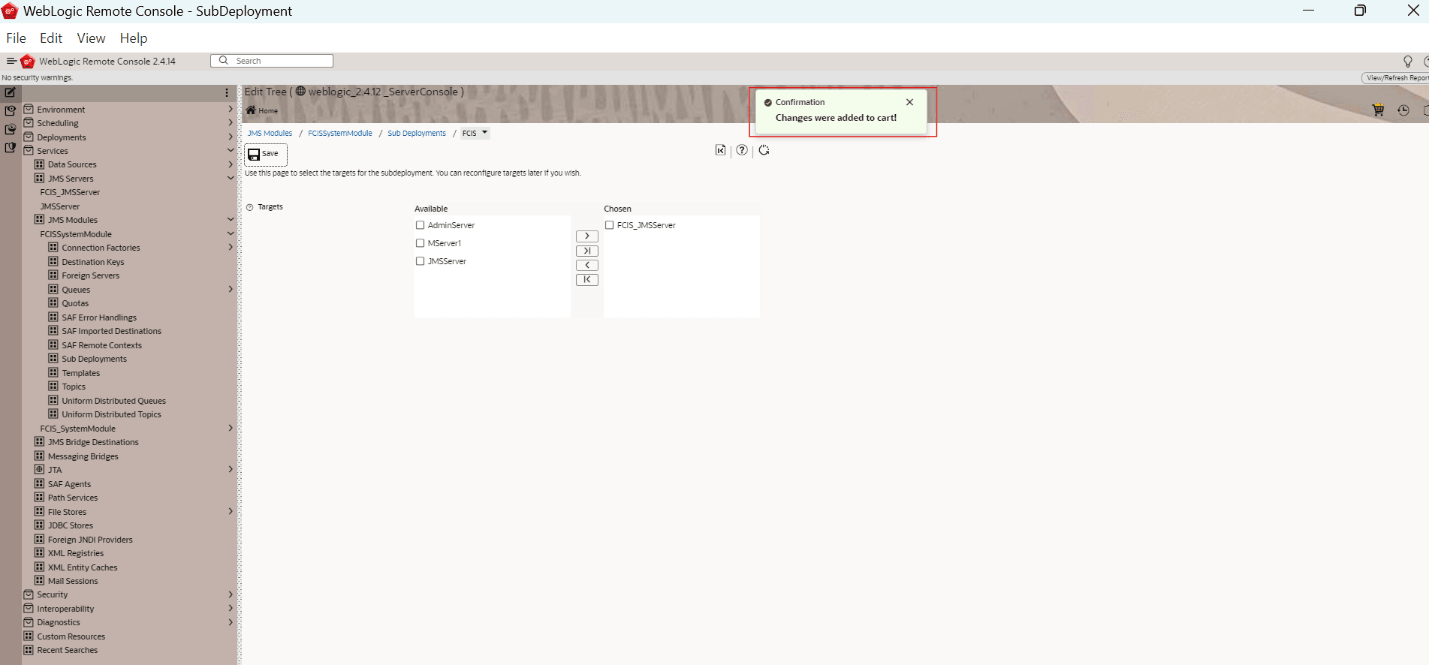

    Figure 7-40 Save a new Sub Deployment





    Description of "Figure 7-40 Save a new Sub Deployment"



11. Click the Cart icon to view, commit or discard the changes and select Commit Changes to apply the changes.
    The Changes were successfully committed is displayed on committing the changes.

    Figure 7-41 Changes successfully committed





    Description of "Figure 7-41 Changes successfully committed"



12. You can view the new module created in the JMS Modules screen.
    The new Subdeployment created is displayed.

    Figure 7-42 New Subdeployment created





    Description of "Figure 7-42 New Subdeployment created"
