2.42.2 View Lookup

This topic describes the systematic instructions to view the list of configured lookups for Decision service.

The user can configure the lookups using the Create Lookup screen. The status of the created lookups is displayed as Unauthorized and Open. Once the checker authorizes the lookups, the status is updated to Authorized and Open.

Specify User ID and Password, and login to Home screen.

1. On Home screen, click Core Maintenance. Under Core Maintenance, click Credit Decision.
2. Under Credit Decision , click Maintenance. Under Maintenance, click Lookups.
3. Under Lookups, click View Lookups.
   The View Lookups screen displays.

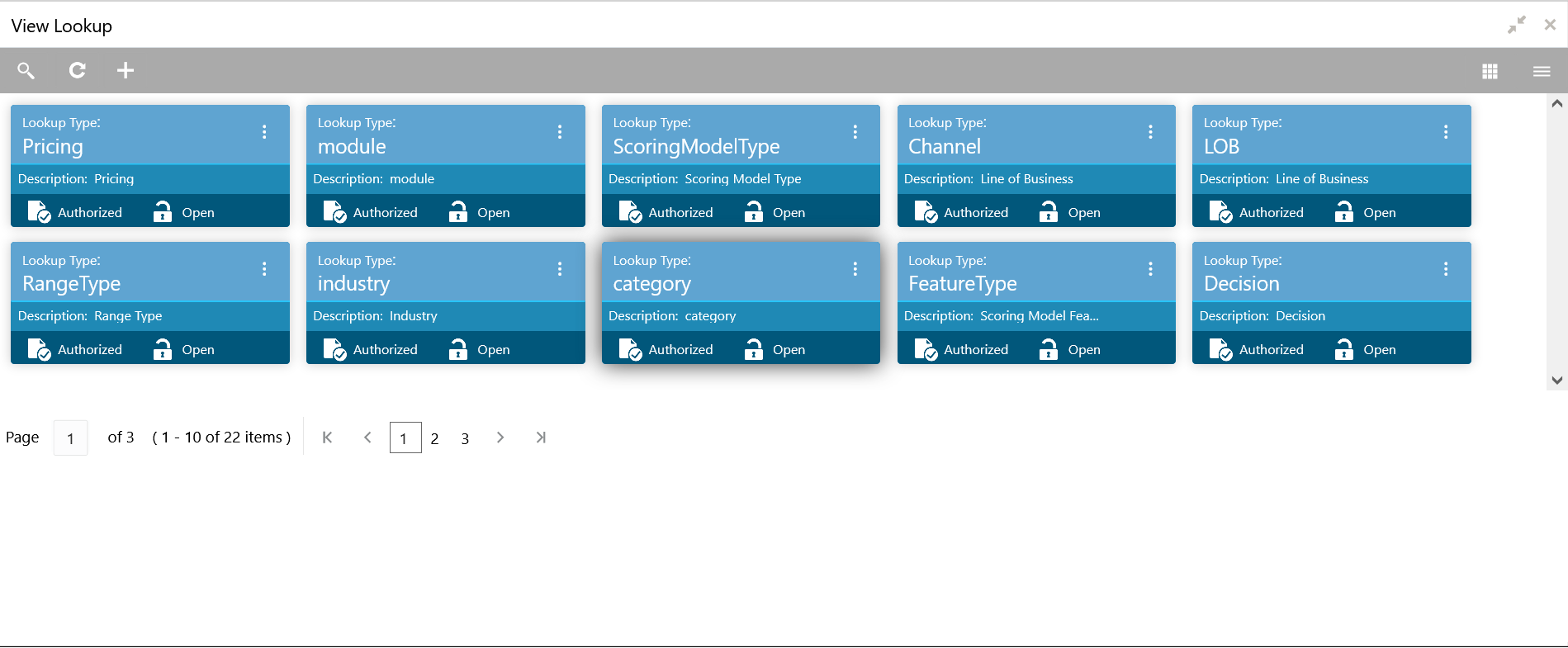

   Figure 2-151 View Lookups



   For more information on fields, refer to the field description table.

   Table 2-103 View Lookups - Field Description

   Field	Description
   Lookup Type	Displays the lookup type.
   Description	Displays the description of the lookup type.
   Status	Displays the status of the record.

4. Click Search icon.
   The View Lookups - Search screen displays.

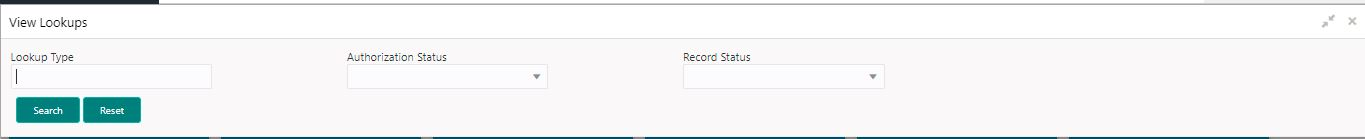

   Figure 2-152 View Lookups - Search



   For more information on fields, refer to the field description table.

   Table 2-104 View Lookups – Search – Field Description

   Field	Description
   Lookup Type	Specify the lookup type.
   Authorization Status	Select the authorization status of the lookups. The options are: Authorized Unauthorized
   Record Status	Select the record status of the lookup. The options are: Open Close

5. Click Search.
6. Click three-dot icon unlock, delete, authorize or view the created lookups.
7. Click Unlock icon to modify the fields.
   • Description
   • Lookup Code
   • Sort Order
   • Dependent Identigfier
   • Enable

   The Lookup Maintenance - Modify screen displays.

   Figure 2-153 Lookup Maintenance - Modify



   For more information on fields, refer to the field description table.

   Table 2-105 Lookup Maintenance - Modify - Field Description

   Field	Description
   Lookup Type	Displays the created lookup type.
   Description	Specify the description of the lookup type.
   Lookup Code	Displays the lookup code for the created lookup.
   Description	Displays the description for the created lookup.
   Sort Order	Displays the sort order for the created lookup.
   Dependent Identifier	Displays the dependent identifier for the created lookup.
   Enable	Displays the lookup code if enabled for the created lookup.

8. Click Save to update the modified fields.
9. Click View icon to view the created lookup code.
   The Lookup Maintenance - View screen displays.

   Figure 2-154 Lookup Maintenance - View



   For more information on fields, refer to the field description table.

   Table 2-106 Lookup Maintenance - View - Field Description

   Field	Description
   Lookup Type	Displays the created lookup type.
   Description	Displays the created lookup type description.
   Lookup Code	Displays the lookup code for the created lookup.
   Description	Displays the description for the created lookup.
   Sort Order	Displays the sort order for the created lookup.
   Dependent Identifier	Displays the dependent identifier for the created lookup.
   Enable	Displays the lookup code if enabled for the created lookup.
