3 Data Sources Creation
This topic describes the data sources creation for Common Core services.
Prerequisites
Database and application setup for Oracle Banking Microservices Architecture must be performed before the deployment setup.
The data sources for the respective micro-services must be created before the application deployment. Each data source targets the corresponding server on which the application will be deployed.
The following sections describes the list of data sources required to be created for Common Core services and the steps to configure them in the server.
Data Sources List
The below list of the data sources must be created for each domain before the deployment of applications onto the managed servers.
Table 3-1 Data Sources List
Data Source Name | Data Source JNDI | Targets |
---|---|---|
PLATO | jdbc/PLATO | Common Core Managed Server |
CMNCORE | jdbc/CMNCORE | Common Core Managed Server, API Gateway Server |
PLATOBATCH | jdbc/PLATOBATCH | Common Core Managed Server |
SMS | jdbc/sms | Common Core Managed Server |
PLATOUI | jdbc/PLATO_UI_CONFIG | Common Core Managed Server |
PLATOFEED | jdbc/PLATOFEED | Common Core Managed Server |
PLATOSECURITY | jdbc/PLATO_SECURITY | Common Core Managed Server |
<PRODUCT PROJECTION SCHEMA> (Required only for DB based ML use cases) | jdbc/<PRODUCT PROJECTION SCHEMA> | Common Core Managed Server |
Note:
Steps to create data source in WebLogic is same for all the above except for the connection details and names.The below listed common core services requires the data source to be created for plato-feeds on each domain prior to deployment of applications onto managed servers.
Table 3-2 List of Services using Plato-Feed
Service Name | Data Source Name | Data Source JNDI | Targets |
---|---|---|---|
cmc-account-services | PLATOFEED | jdbc/PLATOFEED | Common Core Managed Server |
cmc-base-services | PLATOFEED | jdbc/PLATOFEED | Common Core Managed Server |
cmc-branch-services | PLATOFEED | jdbc/PLATOFEED | Common Core Managed Server |
cmc-settlement-services | PLATOFEED | jdbc/PLATOFEED | Common Core Managed Server |
cmc-currency-services | PLATOFEED | jdbc/PLATOFEED | Common Core Managed Server |
cmc-customer-services | PLATOFEED | jdbc/PLATOFEED | Common Core Managed Server |

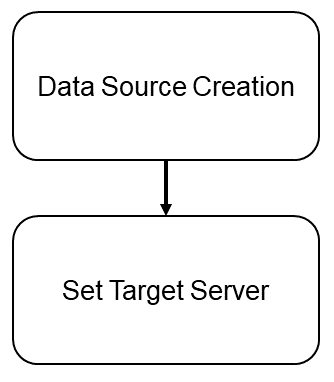

Steps to create Data Source
For creating data sources in managed server, refer to Create Data Sources section in ANNEXURE-1.
