1.8.2 OBRH Configurations

This topic describes the systematic instructions to configure the OBRH for Service Level Agreements.

1. Download and import <SLA_API_Consumer> json in Service Consumers to set up the OBRH service for cmc-sla-service to fetch business product codes for a given product code.
2. Set up service provider for OBPY with default implementation as follows.
   The Service Consumers screen displays.

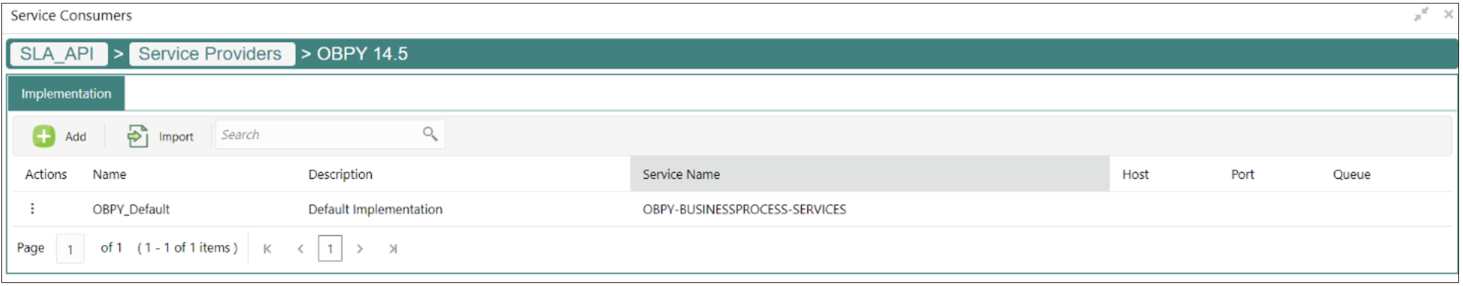

   Figure 1-16 Service Consumers





   Description of "Figure 1-16 Service Consumers "



3. In Consumer Services, add the following routing.
   The Consumer Services screen displays.

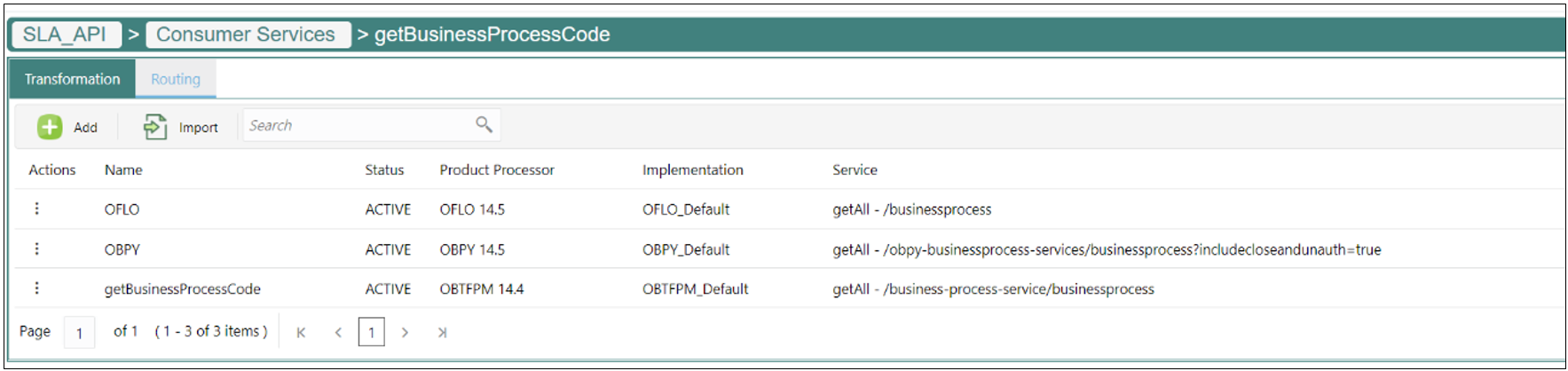

   Figure 1-17 Consumer Services





   Description of "Figure 1-17 Consumer Services"



4. A parameter needs to be maintained in server start parameters for enabling SLA functionality: -Dplato.orchestrator.enableSLA=true. Same parameter also needs to be checked in PROPERTIES table in PLATO schema.
