1.18.1 Create Data Segment

This topic describes the systematic instructions to configure the data segment.

1. From Home screen, click Core Maintenance. Under Core Maintenance, click Data Segment.
2. Under Data Segment, click Create Data Segment.
   The Create Data Segment screen is displayed.

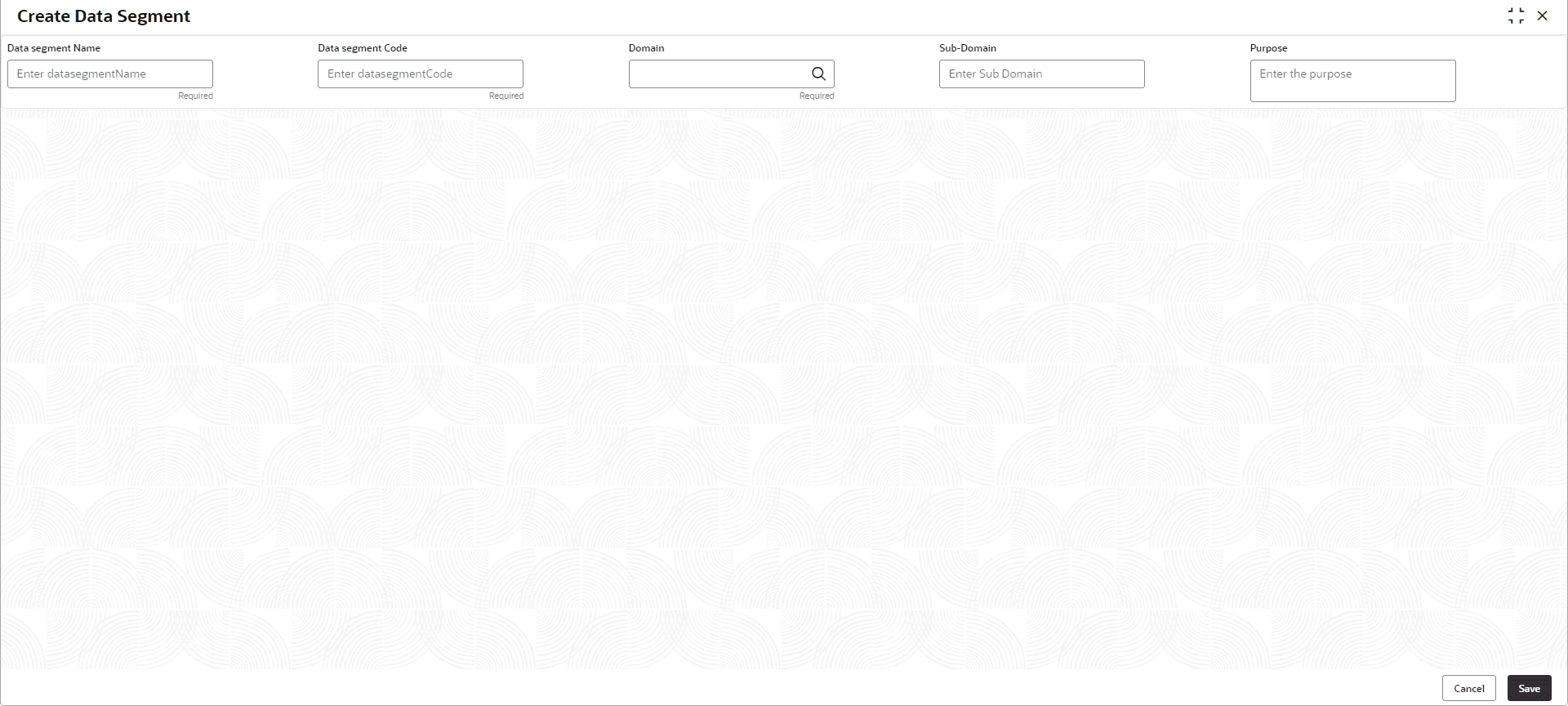

   Figure 1-39 Create Data Segment





   Description of "Figure 1-39 Create Data Segment"



3. Specify the fields on the Create Data Segment screen.

   Note:

   The fields marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 1-39 Create Data Segment – Field Description

   Field	Description
   Data Segment Name	Specify the data segment name to be maintained.
   Data Segment Code	Specify the data segment code to be used.
   Domain	Click Search icon and select the domain from the list.
   Sub-Domain	Specify the sub domain details.
   Purpose	Specify the purpose details.

4. Perform one of the following action:
   • Click Save to save the details.

     The data segment is successfully created and can be viewed using the View Data Segment screen.

   • Click Cancel to discard the changes and close the screen.
