2.3.2 View Lookup

This topic describes the systematic instructions to view the list of configured lookup for Bureau Integration Service.

The user can configure the lookup using the Create Lookup screen. The status of the created lookup is displayed as Unauthorized and Open. Once the checker authorizes the lookup, the status is updated to Authorized and Open.

Specify User ID and Password, and login to Home screen.

1. On Homescreen, click Core Maintenance, under Core Maintenance, click Credit Bureau.
2. Under Credit Bureau, click Maintenance, under Maintenance, click Lookup, under Lookup, click View Lookup.
   The View Lookup screen displays.

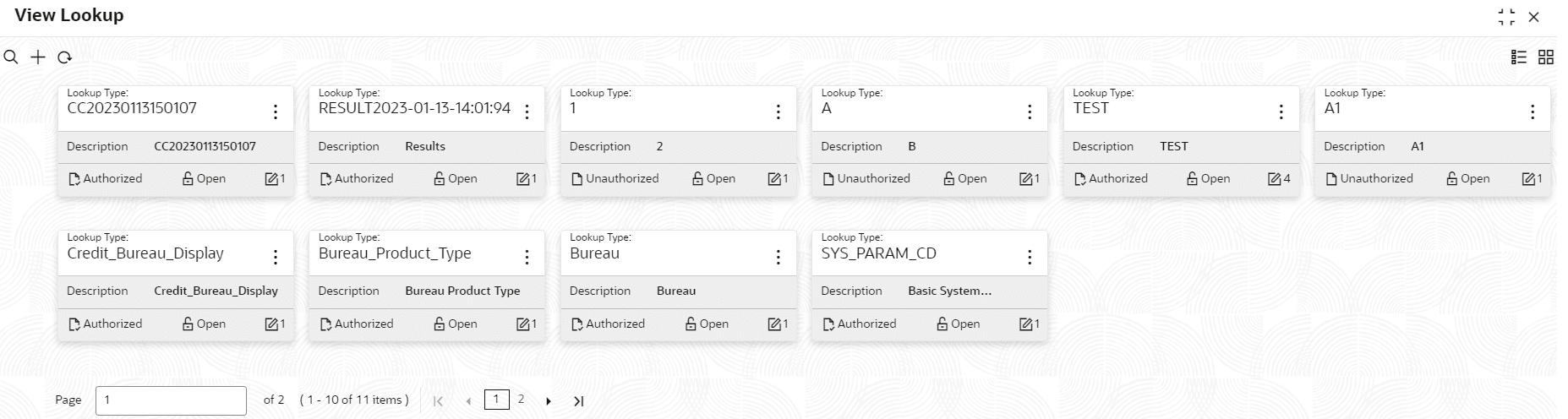

   Figure 2-9 View Lookup





   Description of "Figure 2-9 View Lookup"




   For more information on fields, refer to the field description table.

   Table 2-7 View Lookup – Field Description

   Field	Description
   Lookup Type	Displays the lookup type.
   Description	Displays the description of the lookup.
   Authorization Status	Displays the authorization status of the record. The options are: Authorized Rejected Unauthorized
   Record Status	Displays the status of the record. The options are: Open Closed
   Modification Number	Displays the number of modification performed on the record.

3. On View Lookup screen, click icon.
   The View Lookup - Search screen displays.

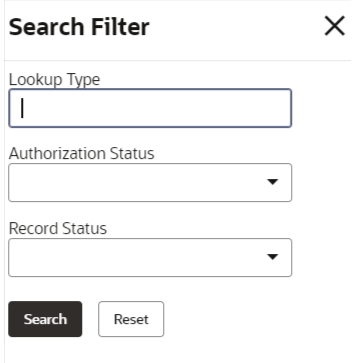

   Figure 2-10 View Lookup - Search





   Description of "Figure 2-10 View Lookup - Search"



4. On View Lookup - Search screen, specify the Search Filter to fetch the required lookup.

   For more information on fields, refer to the field description table.

   Table 2-8 View Lookup – Search – Field Description

   Field	Description
   Lookup Type	Specify the lookup type name.
   Authorization Status	Select the authorization status from the drop-down list. The available options are: Authorized Rejected Unauthorized
   Record Status	Select the record status from the drop-down list. The available options are: Open Closed

5. Click Search to display the required lookup.
6. On View Lookup screen, click icon to Unlock, Delete, Authorize or View the created lookup.
7. Click Unlock to modify the created lookup.
   The Lookup Maintenance - Modify screen displays.

   Figure 2-11 Lookup Maintenance - Modify





   Description of "Figure 2-11 Lookup Maintenance - Modify"




   For more information on fields, refer to the field description table.

   Table 2-9 Lookup Maintenance - Modify - Field Description

   Field	Description
   Lookup Type	Displays lookup type name.
   Description	Displays the short description of the lookup. User can modify the same.
   + button	Click to add a new row.
   - button	Click to delete a row that is already added.
   Lookup Code	Displays the lookup code for the created lookup. User can modify the same.
   Description	Displays the description for the created lookup.
   Sort Order	Displays the sort order for the created lookup. User can modify the same.
   Dependent Identifier	Displays the dependent Identifier for the created lookup. User can modify the same.
   Enable	Indicates if the lookup is enabled or not. User can modify the same.

8. Click Save to update the modified fields.
9. Click View to view the created lookup code.
   The Lookup Maintenance - View screen displays.

   Figure 2-12 Lookup Maintenance - View





   Description of "Figure 2-12 Lookup Maintenance - View"




   For more information on fields, refer to the field description table.

   Table 2-10 Lookup Maintenance - View - Field Description

   Field	Description
   Lookup Type	Displays the created lookup type.
   Description	Displays the description for the created lookup.
   Lookup Code	Displays the lookup code for the created lookup.
   Description	Displays the description for the created lookup.
   Sort Order	Displays the sort order for the created lookup.
   Dependent Identifier	Displays the dependent identifier for the created lookup.
   Enable	Displays the lookup code if enabled for the created lookup.
