14.5.5 Executing Run Pipeline from the New User Interface

After creating your Run pipeline, your next step is to execute it. To execute a Run pipeline, complete the following steps:

  1. From the Process Modeler Summary page, click the Actions button corresponding to Run pipeline you want to execute and select Execute Run. The Execution window is displayed.
  2. Select the Execution Type, enter the required fields and click Execute.

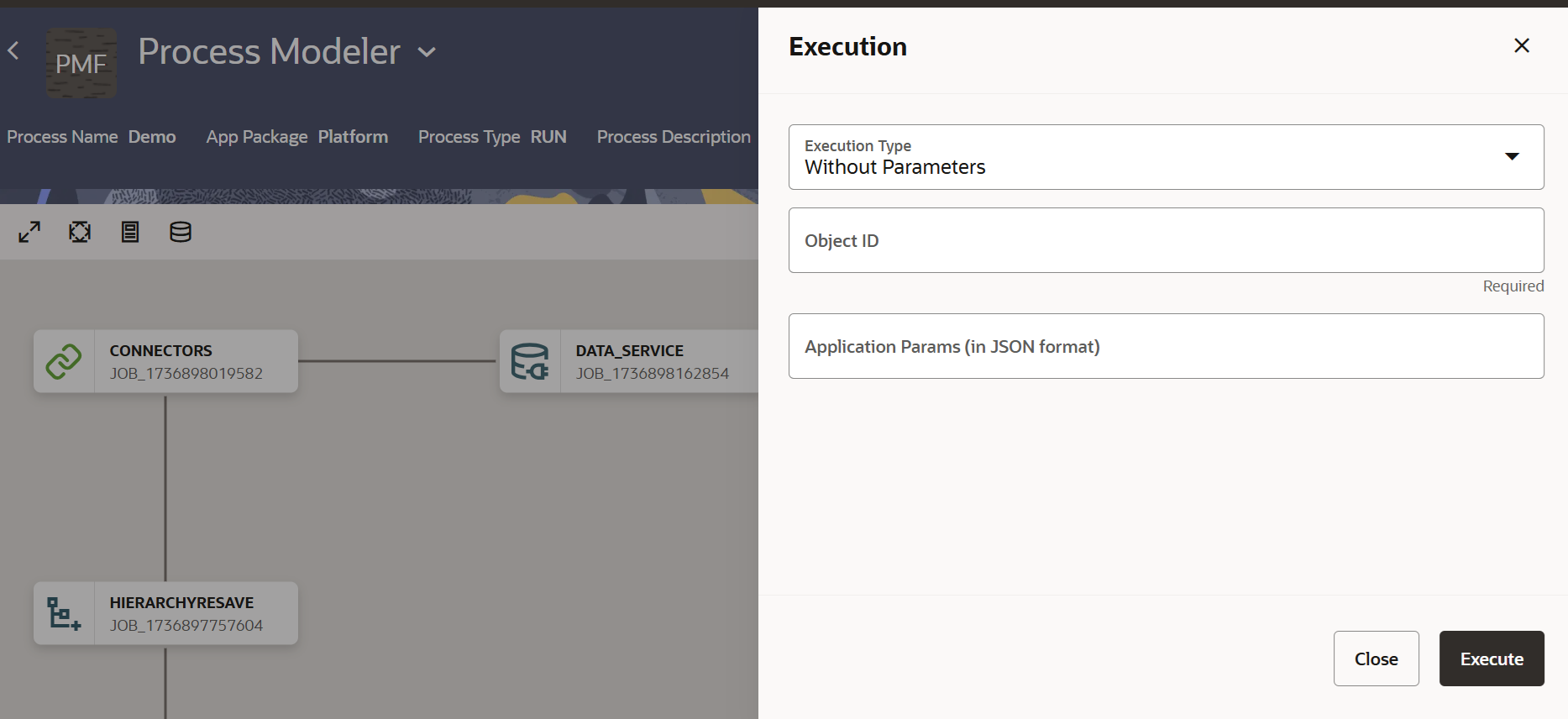

Figure 14-9 Execute a Run pipeline using New UI


Execute a Run pipeline using New UI

The execution is triggered using the selected FIC MIS DATE. The RUNSKEY is generated and inserted into the “DIM_RUN” table. For the RUNSKEY generated, the corresponding user-selected parameters are inserted into the “RUN_EXE_PARAMETERS” table.

You can use the Process Flow Monitor to view the status of the execution as the Run pipeline is executed.
