Configurations Required in OFSAA Setup

1. Login to OFSAA with your System Administrator credentials.
2. Click the Menu icon from the header to display the Administration tools in a Tiles menu.
3. Click System Configuration to view the menu.
4. Click Configure Application Server from the menu to view the Application Server Details window.
5. In the Application Server Details window, click Modify.

   Figure 12-13 Application Server Details page








6. Select Authentication Type as Publickey Auth.
7. Click Save.
8. A confirmation message is displayed to inform that you need to provide the PKI details in the Web Server Details window. Click OK.
9. Click the Hamburger icon to view the Navigation list.
10. Click Configure Web Server from the Application Navigation Drawer. The Web Server Details window is displayed.

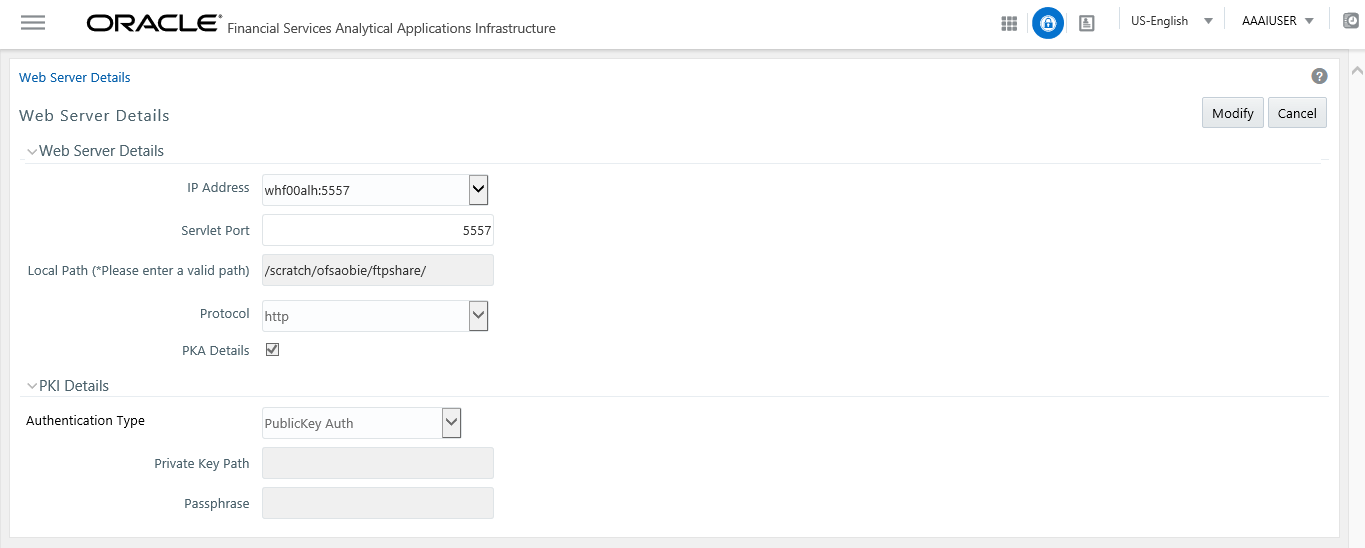

    Figure 12-14 Web Server Details page








    If you have selected Authentication Type as Public Key Auth in the Application Server Details window, the PKA Details check box gets automatically selected and the PKI Details pane is displayed.
11. Click Modify.
12. Enter Private Key Path and Passphrase which you created during Step 1 (Generate a public/private key pair on your webserver).
13. Click Save.
