Attribute Expression Application Rule

This sections explains about the Attribute Expression Application Rule .

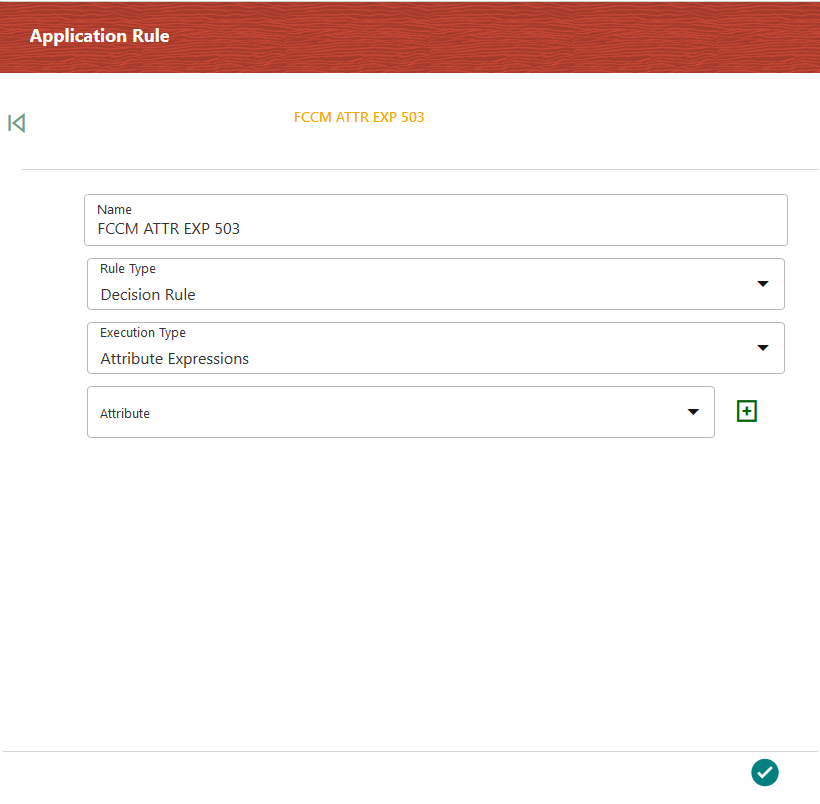

Figure 4-15 Attribute Builder window


This figure displays the Attribute Builder window.

Table 4-11 Attribute Builder Description

Field Name Description
Name Enter a unique name for the Application Rule.
Rule Type Displays the rule type as Decision Rule. This Rule Execution type supports only the Decision Rule type.
Execution Type Displays the Application Execution Type as Attribute Expression.
Attribute

Select the attribute for which you want to define the application rule, from the drop-down list. The list displays the attributes configured for the selected application and component. For more information, see Configuring Application Object Model (AOM) section.

Click Add to add values to the selected attributes. A row is added in the Attribute Values window. Click the Value column to select the values for the attribute from the drop-down. You can select one or more values.

You can delete a row by clicking the button.

You can select multiple attributes and click Add to assign values to those attributes.
