How to Use Parallel Gateways

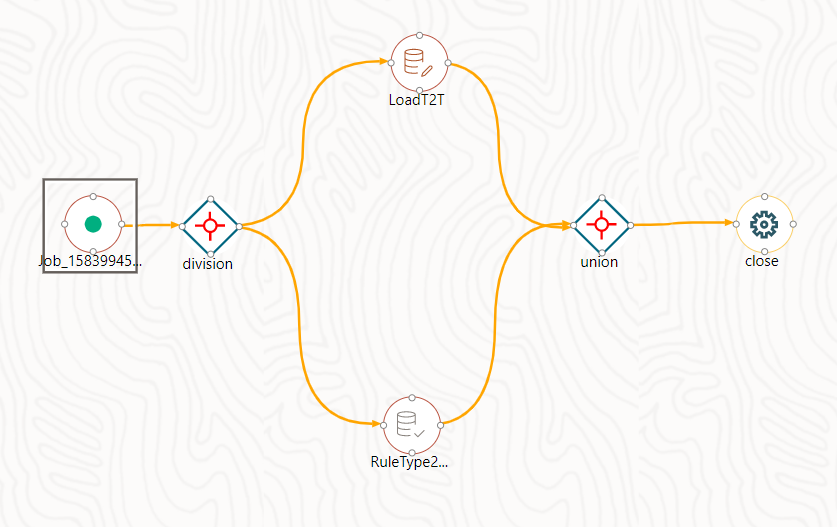

Figure 11-2 RuleType 2 and Load T2T Widget Parallel Execution Flow

This section explains how to design tasks such as RuleType 2 and Load T2T Widget to be executed in parallel.

1. Create a Process Modelling Process.
2. Launch the Process. It displays the Process Flow tab.
3. By default, the Start icon appears on the canvas. Drag and drop to a desired area on the canvas. This Start activity indicates the beginning of the Process.
4. Click Parallel Gateway icon from the toolbar and click on the drawing canvas where you want to place it.
5. Drag and drop the Parallel Gateway widget onto the Activity from where the transition starts.
6. Drag and drop the Activity on to the Parallel Gateway widget where the transition progresses.
7. Click RuleType2 from the Widgets window, and then click the drawing canvas where you want to place it.
8. Drag and drop the Parallel Gateway widget onto the Activity to make the transition connection.
9. Configure the RuleType2 widget. For more information, see Configuring OFSAA Tasks in Your Process Flow section.
10. Click LoadT2T from the Widgets window, and then click the drawing canvas where you want to place it.
11. Drag and drop the LoadT2T widget onto the Parallel Gateway widget to make the transition connection.
12. Configure the LoadT2T widget. For more information, see Configuring OFSAA Tasks in Your Process Flow section.
13. Drag and drop the Parallel Gateway widgets onto the Run widget to make the transition connection.
14. Click the Parallel Gateway icon from the toolbar and click on the drawing canvas where you want to place it.
15. Connect the RuleType2 and LoadT2T widgets onto the Parallel Gateway widget to make the transition connections.
    You can drag and position the widgets to avoid overlapping widgets or transition lines.
