Adding an Action Parameter

To add Action Parameters:

1. Navigate to the Post Processing Actions details page.
2. Click Add on the Action Parameters tool bar. The Add Action Parameters dialog box is displayed.

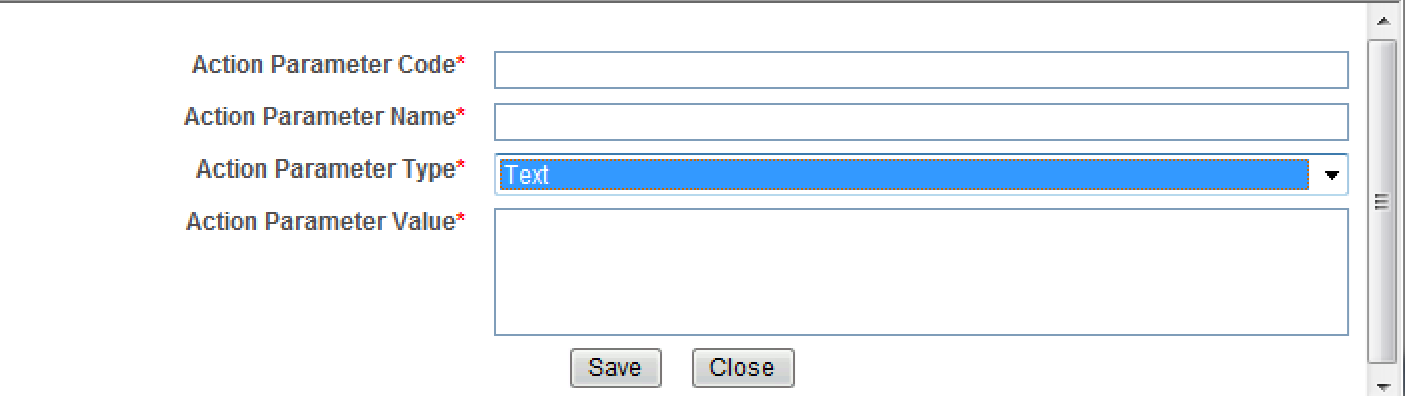

   Figure 7-3 Adding an Action Parameter








3. Enter the following details:
   • Action Parameter Code: Enter the code of action parameter.
   • Action Parameter Name: Enter the name of action parameter.
   • Action Parameter Type: Select the action parameter type from the drop-down list (Text or Password)
   • Action Parameter Value: Enter the value for action parameter.
     • If the action parameter type is text, enter text box.
     • If the action parameter type is password, enter password field.
4. Click Save. A confirmation message is displayed.
