4.1.5 Creating JMS Connection Factory

To create JMS Connection Factories, follow these steps:

1. In the Domain Structure LHS menu, click + to expand Services.
2. Click + to expand Messaging.

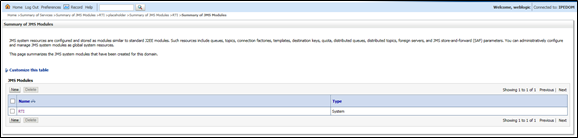

3. Click JMS Modules. The JMS Modules screen is displayed.

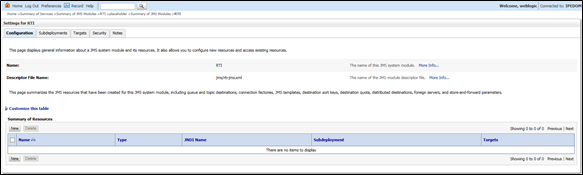

4. Click RTI. The Settings for RTI screen is displayed.

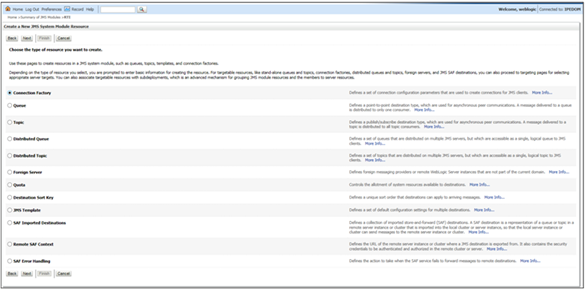

5. Click New. The Create a New JMS System Module screen is displayed.







6. Select Connection Factory.

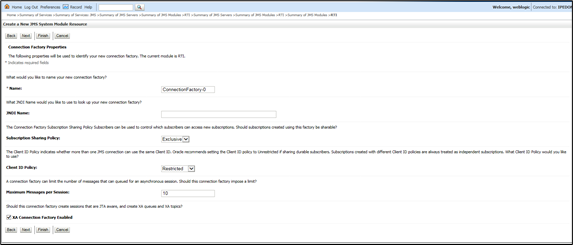

7. Click Next. The Create a New JMS System Module Resource screen is displayed.







8. Enter the Name as JMS Connection Factory.

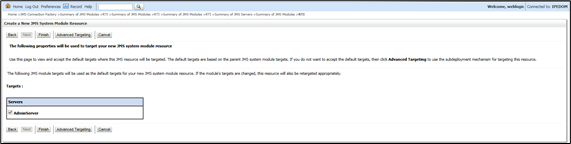

9. Click Next. The Create a New JMS System Module Resource screen with the Target section is displayed.







10. Select AdminServer.

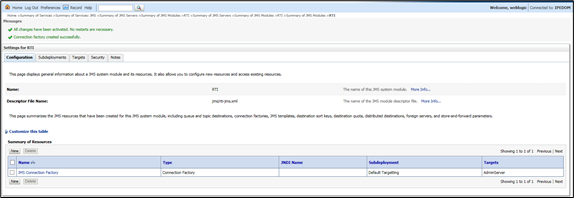

11. Click Finish.

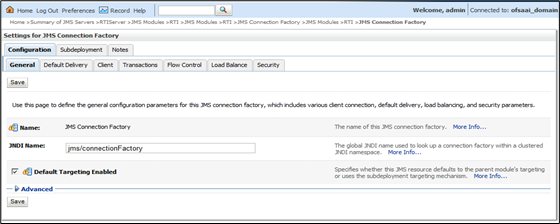

12. Click JMS Connection Factory. The Settings for JMS Connection Factory screen is displayed.







13. Enter the following details:

    Table 4-2 Example

    Field	Name
    Name	The name of the JMS connection factory is displayed as JMS Connection Factory.
    JNDI Name	jms/connectionFactory
    Default Targeting Eanbled	Select the check-box to enable Default Targeting.

14. Click Save.

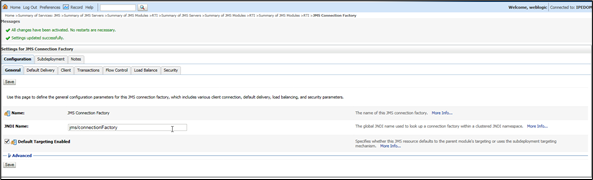

15. The following confirmation message is displayed.
    JMS Connection Factory is created successfully.
