4.1.6.1 Creating RTI Assessment Response Destination Topic

To create JMS Topic, follow these steps:

1. In the Domain Structure LHS menu, click + to expand Services.
2. Click + to expand Messaging.

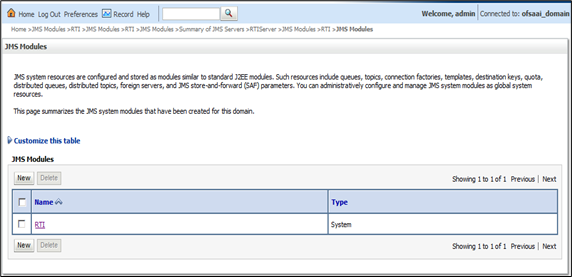

3. Click JMS Modules. The JMS Modules screen is displayed.

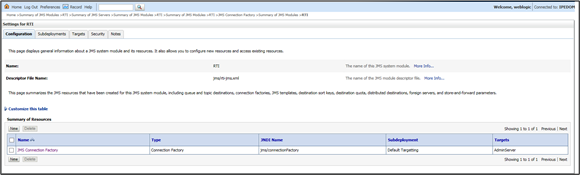

4. Click RTI. The Settings for RTI screen is displayed.







5. Click New. The Settings for JMS Connection Factory screen is displayed.







6. Select Topic from the list.

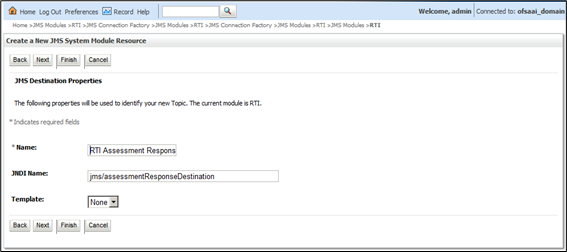

7. Click Next. The Create a New JMS System Module Resource screen is displayed.







8. Enter the following details:

   Table 4-3 JMS Topic - Field Values

   Field	Value
   Name	RTI Assessment Response Destination Topic
   JNDI Name	jms/assessmentResponseDestination

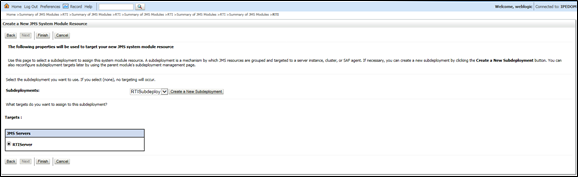

9. Click Next. The Create a New JMS System Module Resource screen is displayed.







10. Select the Subdeployments as RTISubDeploy.
11. Select RTISever.
12. Click Finish.

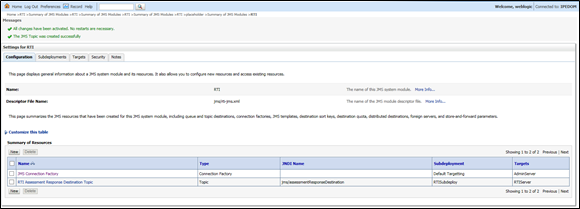

13. The following confirmation message is displayed.
    JMS Topic is created successfully.
