4.2.7.1 Creating RTI Cache Operation Message Destination Topic

To create JMS topics, follow these steps:

1. Click + to expand Resources in the LHS menu.
2. Click + to expand JMS.

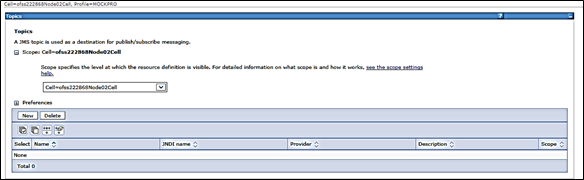

3. Click Topics.
4. Select Cell as Scope .
   For example Cell=OFSA80Node02Cell.

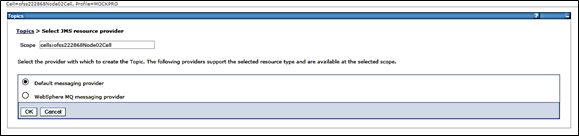

5. Click New. The Select JMS resource provider screen is displayed.







6. Select Default messaging provider.

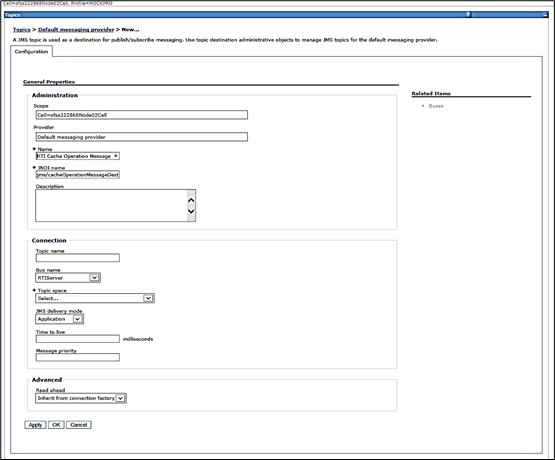

7. Click OK. The Configuration screen is displayed.







8. Enter the following details:

   Table 4-10 JMS Topic General Properties - Field Values

   Field	Value
   Name	RTI Cache Operation Message Destination Topic
   JNDI Name	jms/cacheOperationMessageDestination
   Bus Name	RTIServer

9. Select Create Service Integration Bus Destination from Topic space.

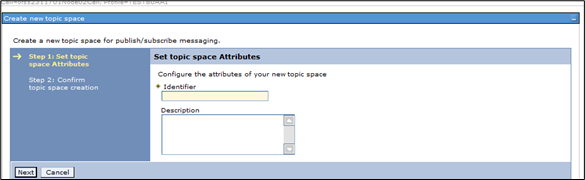

10. The Create new topic space screen is displayed.







11. Enter the Identifier as rtiCacheOperationTopic.
12. Click Next.

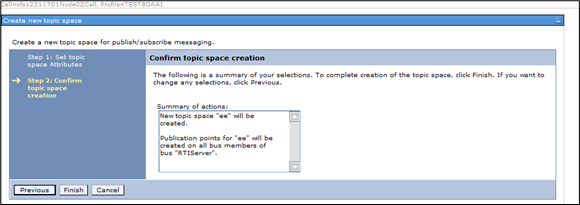

13. Click Finish. The Configuration screen is displayed.
14. Click Apply and save details.
