4.1.4.1 Creating RTI Deploy

To create RTI Deploy subdeployment, follow these steps:

1. In the Domain Structure LHS menu, click + to expand Services.
2. Click + to expand Messaging.
3. Click JMS Modules. The JMS Module screen is displayed.

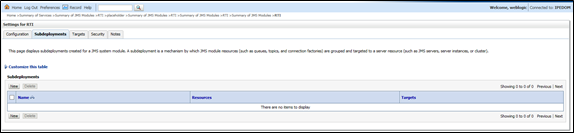

4. Click JMS Module RTI. The Settings for RTI screen is displayed.
5. Click the Subdeployments tab.

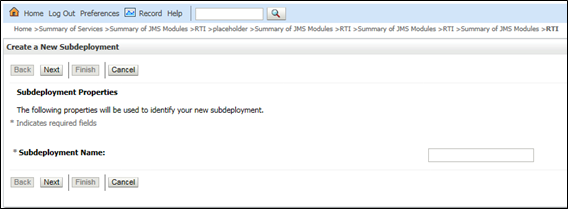

6. Click New. The Create a New Subdeployment screen is displayed.







7. Enter the Subdeployment Name as RTI Deploy.
8. Click Next.

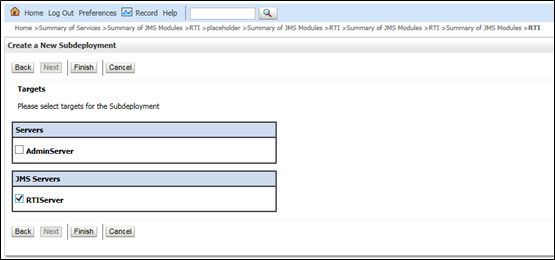

9. Select the JMS Servers as RTIServer.

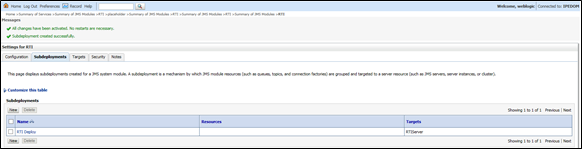

10. Click Finish. The following confirmation message is displayed:
    Subdeployment is created successfully.
