5.1.3 PLSQL Starter Kit User Interface

The PLSQL Starter Kit UI will allow users to generate a Starter Kit. UI has options to Include Custom tables & Include data for all Custom tables. The UI will display the current status and previously generated Starter Kit Status. The UI has a Download button using which you can download the generated Starter Kit.

User must be mapped to below groups to access PLSQL Starter Kit UI:

  • UG_GEN_STARTER_KIT_ADMIN
  • UG_GEN_STARTER_KIT_ANALYST

For more details on mapping user groups, refer to Managing User Groups.

From the LHS menu, select Admin Tools, and then select PLSQL Starter Kit.

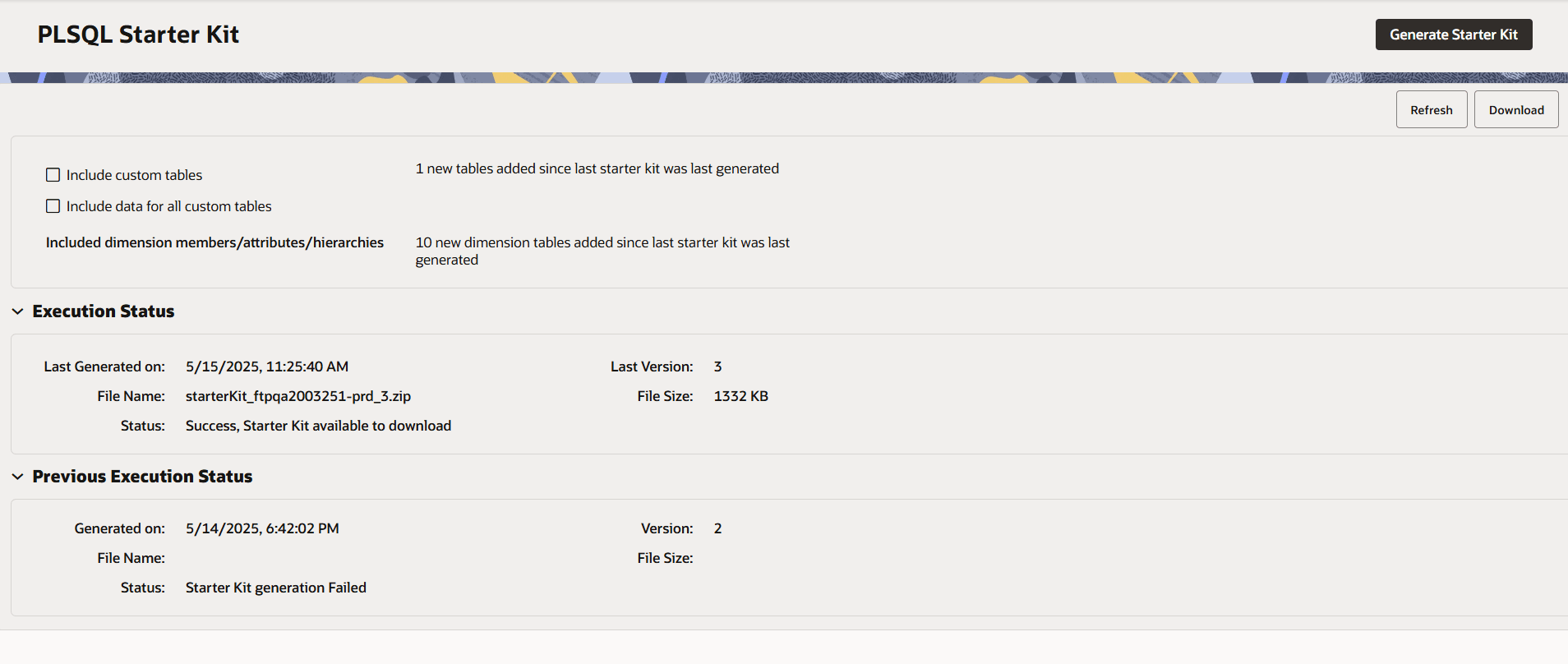

Figure 5-2 PLSQL Starter Kit


PLSQL Starter Kit

The PLSQL Starter Kit UI displays the following details:

  • Include Custom tables: Check box indicates whether to include Custom Tables added as part of the Data Model Extensions User Interface. When Checked Starter Kit Generation will include Custom Tables added as part of the Data Model Extension UI.
  • Include data for all Custom tables: Check box indicates whether to include data of the Custom Tables. When Checked Starter Kit Generation will include Custom Tables data.
  • Included dimension members/attributes/hierarchies: These are included by default.
  • Execution Status:
    • Last Generated on: Displays the date of starter kit generation.
    • Last Version: Displays the Version number if starter kit.
    • File Name: Displays the Starter Kit File Name.
    • File Size: Displays the Starter Kit File Size.
    • Status: Displays the Status of Starter Kit Generation.
  • Previous Execution Status shows the details of a previously generated Starter Kit:
    • Generated on: Displays the date of starter kit generation.
    • Version: Displays the Version number if starter kit.
    • File Name: Displays the Starter Kit File Name.
    • File Size: Displays the Starter Kit File Size.
    • Status: Displays the Status of Starter Kit Generation.
  • Click Generate Starter Kit button to start generating the Starter Kit.
  • Refresh button can be used to refresh the page to view the latest Status.
  • Download button can be used to download the latest generated Starter Kit.
