3.3 Create Scenario Definition and Import Templates

You can create and import the scenario definition for analysis.

To create the analysis definition:

1. Navigate to Create Scenario Definition paragraph.
2. From the Scenario drop-down list, select the scenario.
3. Enter the Definition Name (folder name in which templates will be imported).
4. From the Analysis drop-down list, select the analysis type. The available options are Prod and PreProd.
5. From the Overwrite drop-down list, select the option. The available options are:
   True: Select when you want to delete and recreate the existing definition.
   False: Select when you want to create the definition.
6. Run the paragraph to create definition or recreate the existing definition.

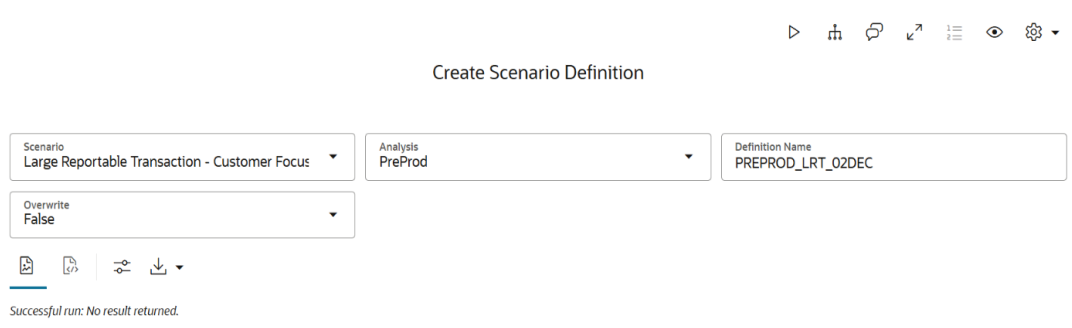

   Figure 3-2 Create Scenario Definition





   Description of "Figure 3-2 Create Scenario Definition"




Run the Import Templates paragraph to import templates based on the selected analysis and created the definition under specific path. The scenario definition path should be Home/ASC/<Analysis>/<Definition Name>.

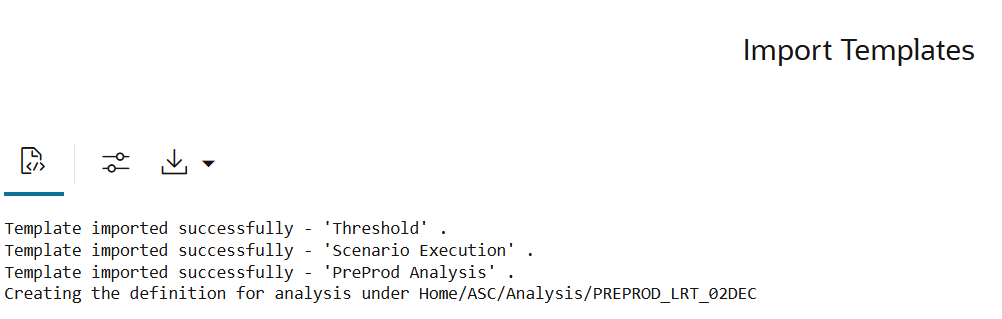

Figure 3-3 Import Templates

Description of "Figure 3-3 Import Templates"
