Data Loading

Getting Data

It retrieves the data from DB tables for selected tunable parameters. The tunable_parameters input is optional .

Input expression will be taken from class variable asc.tunbale_parameters if it was set during scenario execution.
Input text box will only appear for user, if class variable asc.tunable_parameters is None. User can then set the expression again.
For example:
```
tunable_parameters = "Trans_Base_Amt | Trans_Ct"
```

Include/Exclude Threshold Set IDs

Use the Include/Exclude Threshold Set IDs paragraph to include or exclude relevant Threshold Set IDs. If None of the Threshold Set IDs are selected, all Threshold Set IDs will be included.

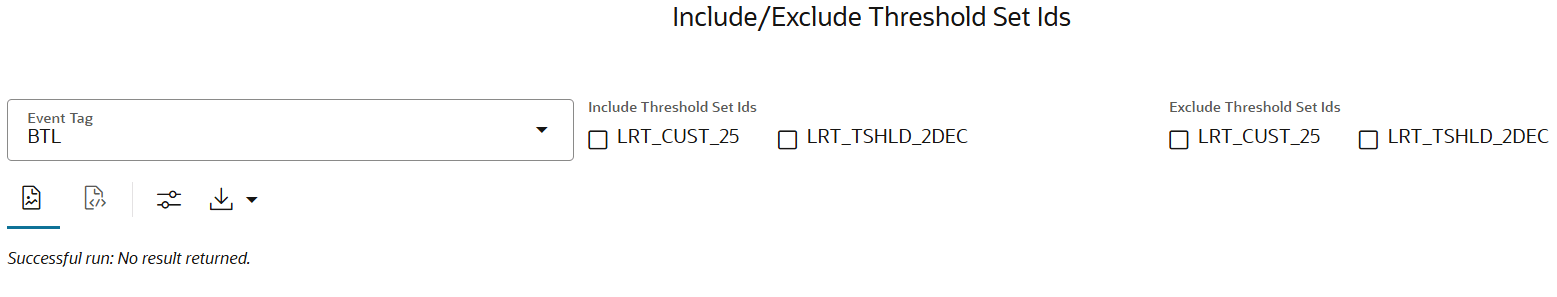

Figure 4-14 Include/Exclude Threshold Set IDs

Description of "Figure 4-14 Include/Exclude Threshold Set IDs"

Note:

The PreProd analysis only supports the BTL event_tag. Selecting other options may result in an error.

Get Data

To get the data, execute the following.

%python-pgx

evented_data_pdf = asc.get_data(tag = event_tag,
                                tunable_parameters = tunable_param,
                                include_threshold_set_ids = include_threshold_set_ids,
                                exclude_threshold_set_ids = exclude_threshold_set_ids,
                                is_pre_prod_analysis=True)
z.show(evented_data_pdf.head())
