7.4.1.4 Processing for Batch Start

After establishing the required Java environment and initiating various Java processing activities, the Batch Control Utility does the following:

  1. The utility verifies that the provided batch name contains only the characters A-Z, a-z, and 0-9 by querying the KDD_PRCSNG_BATCH table.
  2. The utility determines whether a batch is running by querying the KDD_PRCSNG_BATCH_CONTROL table. The following table describes the KDD_PRCSNG_BATCH_CONTROL table.

    Table 7-12 KDD_PRCSNG_BATCH_CONTROL Table Contents

    Column Name Description
    PRCSNG_BATCH_ID Current batch process ID.
    PRCSNG_BATCH_NM Name of the current batch process.
    DATA_DUMP_DT Current business day. The Calendar Manager Utility places this information in the table.
    EOD_PRCSNG_BATCH_FL Flag that indicates whether the batch is an end-of-day process (Y or N).
  3. The utility records information about the batch in the KDD_PRCSNG_BATCH_HIST table. This table contains a history of all batches that appear by start date and end date.

    Table 7-13 KDD_PRCSNG_BATCH_HIST Table Contents

    Column Name Description
    PRCSNG_BATCH_ID Current batch process ID.
    PRCSNG_BATCH_NM Name of the current batch process.
    DATA_DUMP_DT Business day on which the batch ran.
    START_TS Time that the batch started.
    END_TS Time that the batch ended (if applicable).
    STATUS_CD Status code that indicates whether the batch is currently running (RUN) or has finished (FIN).
  4. The Batch Control Utility logs a message in the <OFSAAI Installed Directory>/ database/ db_tools/logs/batch_control.log file, stating that the batch process has begun.

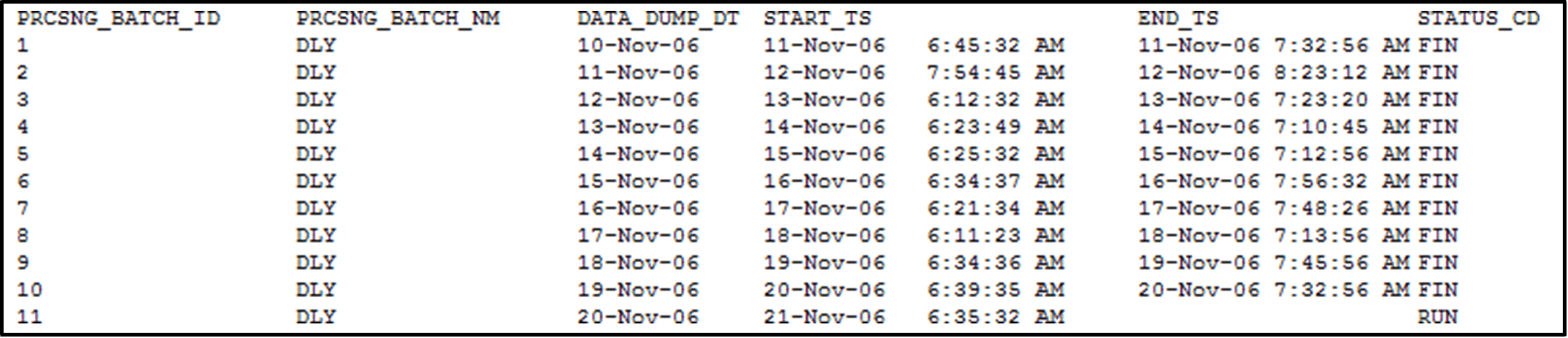

    Querying the KDD_PRCSNG_BATCH_HIST table for confirmation that the batch has started displays information similar to that shown below. In the last entry, note the appearance of RUN for STATUS_CD and lack of end time in END_TS.

    Figure 7-2 Sample KDD_PRCSNG_BATCH_HIST Table—Batch Start Status


    Description of Figure 7-2 follows
    Description of "Figure 7-2 Sample KDD_PRCSNG_BATCH_HIST Table—Batch Start Status"
