Select DataSet Dialog Box

Each editor of the Scenario Manager provides a dataset that you can use to perform a specific function. For example, when creating a scenario, you must always select each dataset against which to run the detection pattern.

To open a Select Dataset dialog box, from the Dataset menu of the Dataset Editor, select Open.

The Select Dataset dialog box displays.

You can select each dataset in the Select DataSet dialog box.

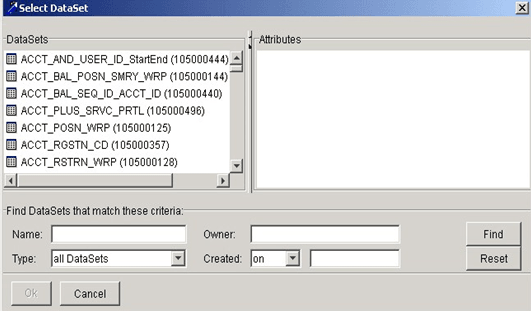

Figure 4-1 Select DataSet Dialog Box

Description of "Figure 4-1 Select DataSet Dialog Box"

The following table describes the components of the Select DataSet dialog box.

Table 4-2 SelectDataSet Dialog Box Components

Column	Description
Data Sets	Lists all available datasets, based on the specified domain.
Attributes	Displays the attributes associated with the selected dataset in the DataSets area
Find Data Sets	Enables you to define the search criteria for a dataset as follows: Name: Dataset name. Owner:Owner of the dataset. Type: All DataSets: Search all datasets. RealizedDataSets: Search for realized or derived datasets. Note: Selecting either All DataSets or Realized DataSets displays the same output. WrapperDataSets: Search for wrapper datasets. Created: This specifies whether to search for datasets before, on, or after the date you enter in the Date Entry field, as mm/dd/yyyy.
